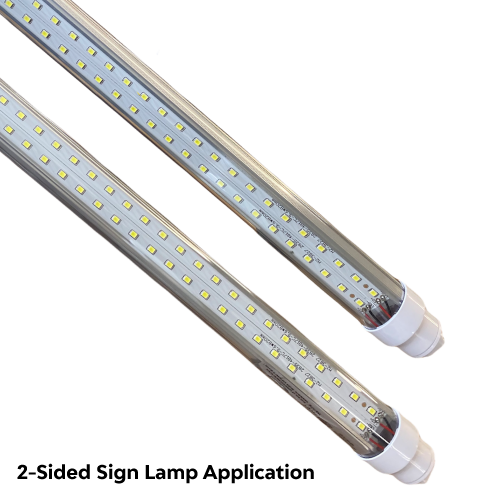

Sign Cabinet HO R17d 2-Sided Replacement Lamps - 2',3',4', 5' 6', 7', 8',9' - CLEAR LENS Rotating Ends -Shipping Included

Sign Cabinet HO R17d 2-Sided Replacement Lamps - 2',3',4', 5' 6', 7', 8',9' - CLEAR LENS Rotating Ends -Shipping Included

Regular price $251.37 USD
Regular price Sale price $251.37 USD
Sale Sold out

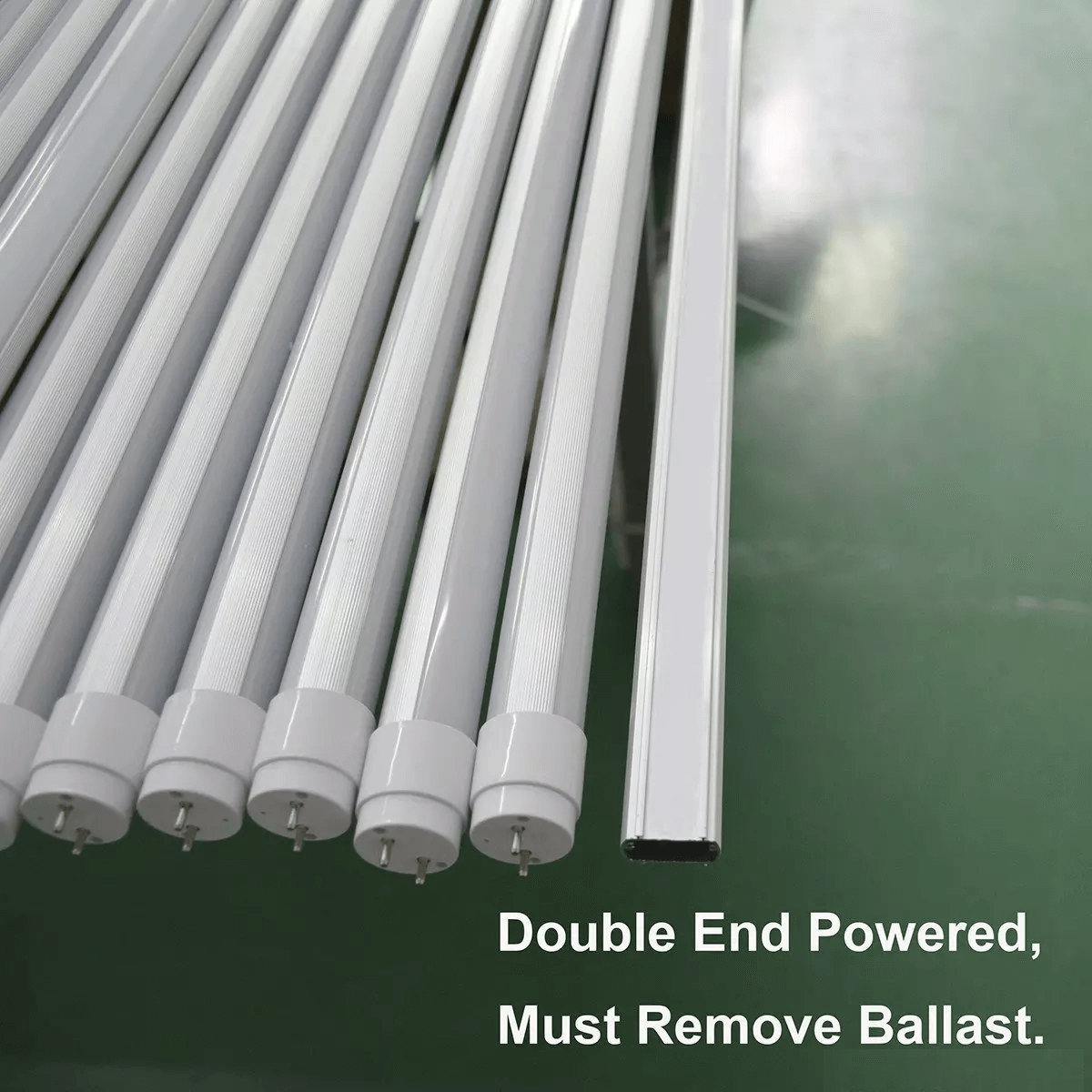

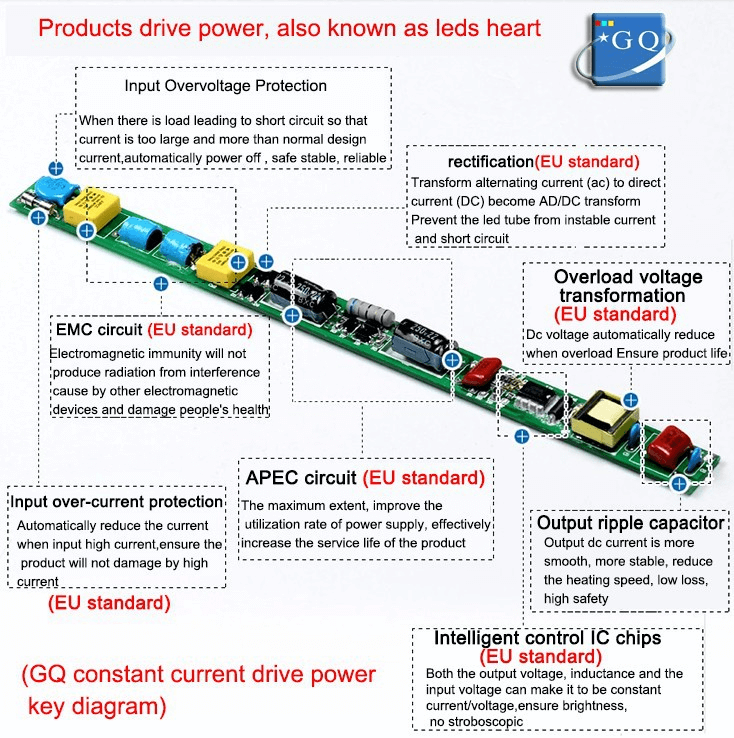

These 2 Sided 360 degree LED Tubes are designed for 1 sided or 2 sided Sign Cabinet lamp replacement.  These lamps bypass the ballast, saving even more energy, and provide instant on in cold conditions.  Each LED is powered independently, using our robust 85-277v Constant Current Integrated Driver.

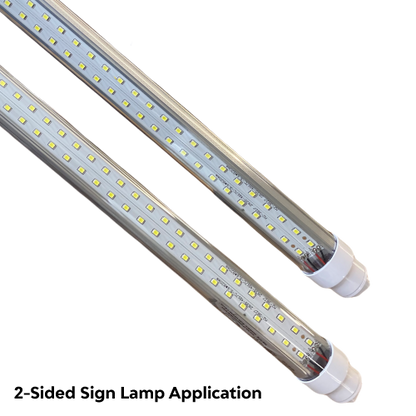

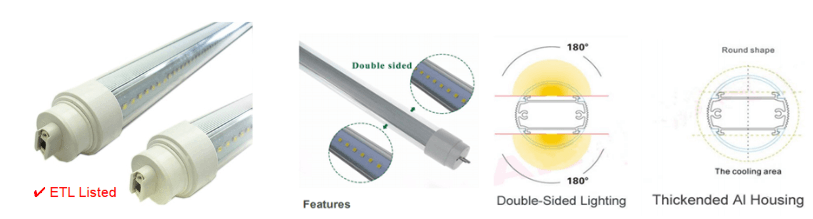

NEW 2-Row LED on each side for superior light distribution over other brands

** If you are not a contractor, and require less than the minimum quantity, just call 800-601-0107, and our associates will quote a shipped price based on your quantity

  • Type:T8
  • Power: Check below chart

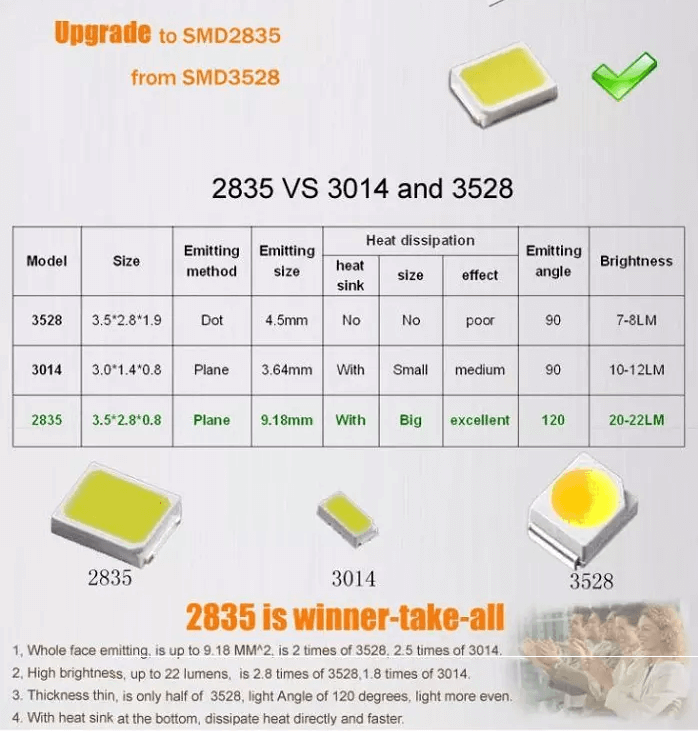

  • LED Chip: Cree 2835SMD
  • Length: 2',3',4',5',6',7',8',9'

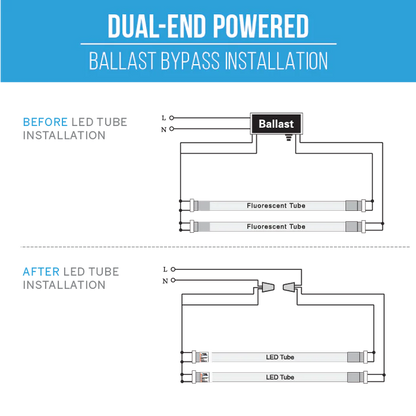

  • No Ballast, Direct Wire System
  • Certification: CE  SAA  RoHS  LVD  EMC  UL  FCC
  • Color Temperature: White(5500-6500K)

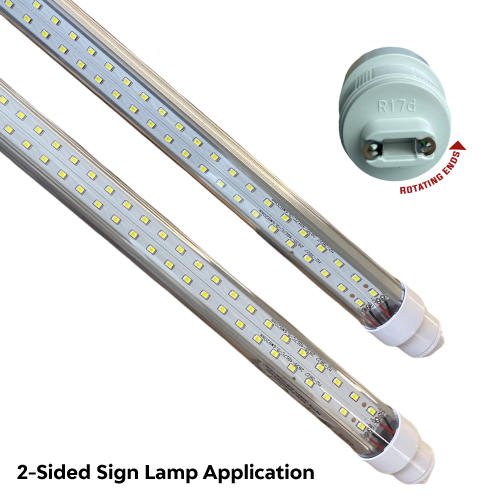

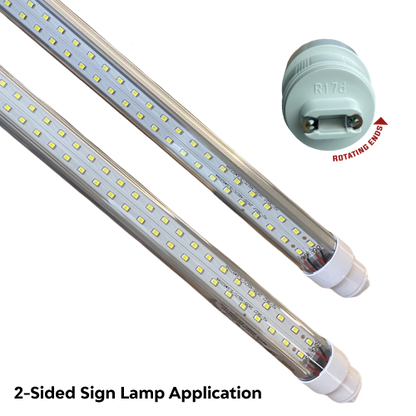

  • Base: R17D/Rotating Ends
  • Warranty: 8 years
  • Average Life (hrs): 80000H
  • Lumens: 130lm/w Clear Lens
  • IP rate: IP54
  • Polycarbonate Lens: Clear
  • Aluminum Base
  • Voltage: AC 85-265V

** Because HO lamps may vary in length, please verify length before ordering

  Option       Lumens   LED Chips      Voltage      Lifespan       Tip to Tip Length

2ft      18w      2,430LM    SMD2835     AC85-265V   >80,000H          55cm

3ft      28w      3,780LM    SMD2835     AC85-265V   >80,000H          86cm

4ft      36w      4,860LM    SMD2835     AC85-265V   >80,000H          116cm

5ft      45w      6,075LM    SMD2835     AC85-265V   >80,000H          147cm

6ft      56w      7,560LM    SMD2835     AC85-265V   >80,000H          177cm

7ft      64w      8,640LM    SMD2835     AC85-265V   >80,000H          207cm

8ft      72w      9,720LM    SMD2835     AC85-265V   >80,000H          237cm

9ft      81w     10,935LM    SMD2835     AC85-265V   >80,000H         268cm

Product Parameters:

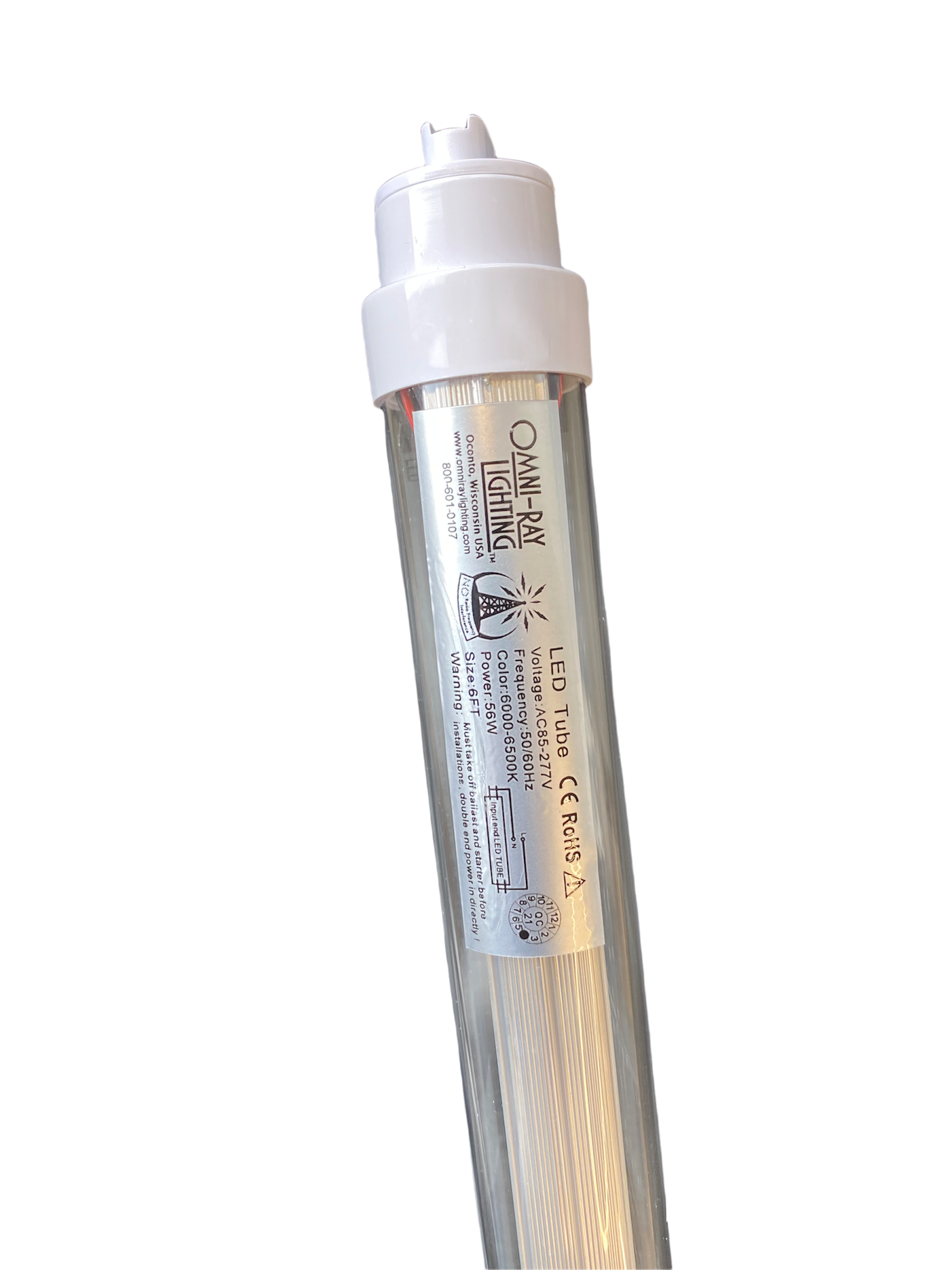

Product type T8 Double Side LED Tube
Material Polycarbonate + 6063 Aluminum
Light source LED
Light degradation rate 25,000h≤10%
Color rendering index Ra≥80
Power factor PF≥0.95

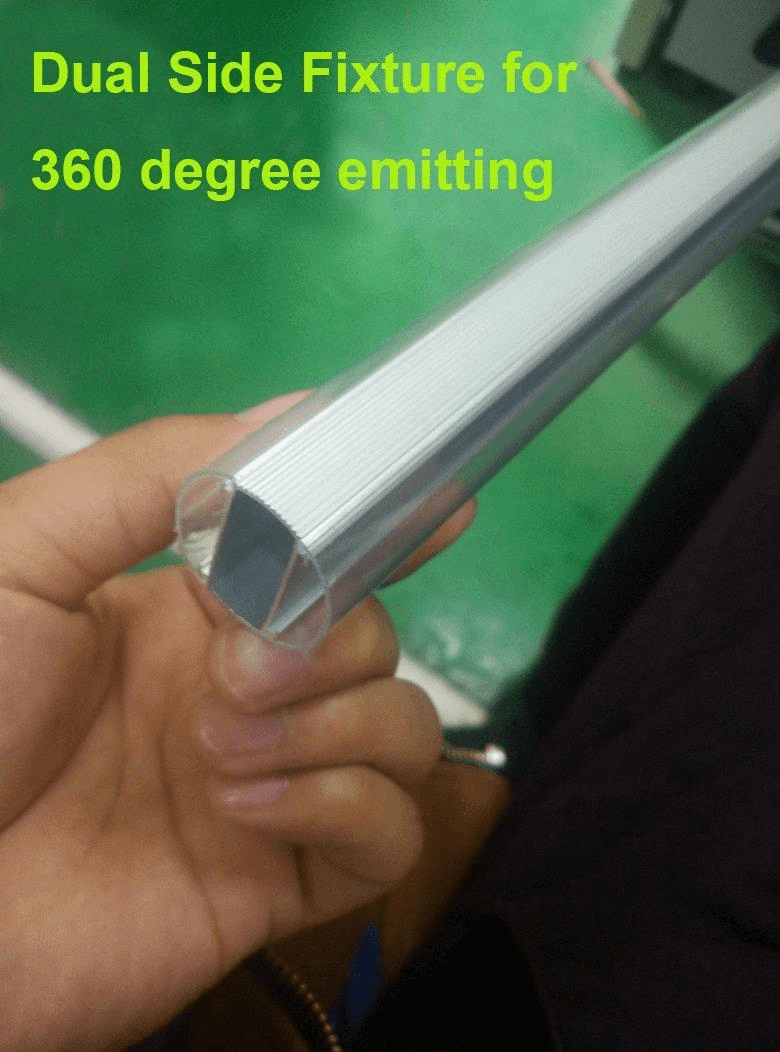

Beam angle 360°
Rated life 80,000h
Color temperature 5500K-6500K
Working temperature -20~+40°C
Input wattage AC85-265V
IP Rate IP54
Lamp efficiency 135lm/w Clear
Emergency function Optional

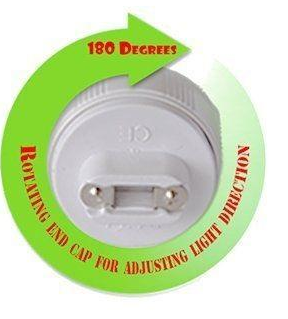

Base R17D, Rotating Ends
Warranty 8 years
Certificates CE, ROHS, FCC,SAA,CSA,UL
Application Sign Cabinet Lamp Replacement
Available color
