PIR Motion Sensor Blue Tooth Enabled 180° BRONZE

Regular price $29.95

Passive Infrared Sensor
A passive infrared sensor is an electronic sensor that measures infrared light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.

BRONZE

Bluetooth-Enabled Motion Sensor add-on. The MS180BT series combines motion sensing technology with the convenience of wireless control and adjustment with your Bluetooth-enabled smart device. Adjust the sensitivity of the sensor, how long your outdoor fixtures remain on after motion is detected, or bypass the motion sensor altogether from your phone without having to get on a ladder. Available in bronze finish, this sensor is available in a durable, polycarbonate housing

For use with Wall Packs, Flood Lights or installing at AC junction point for multiple fixtures

  • 180° detection area
  • Controlled with smart devices utilizing Bluetooth™ technology
  • Free and easy-to-use app for iOS or Android devices

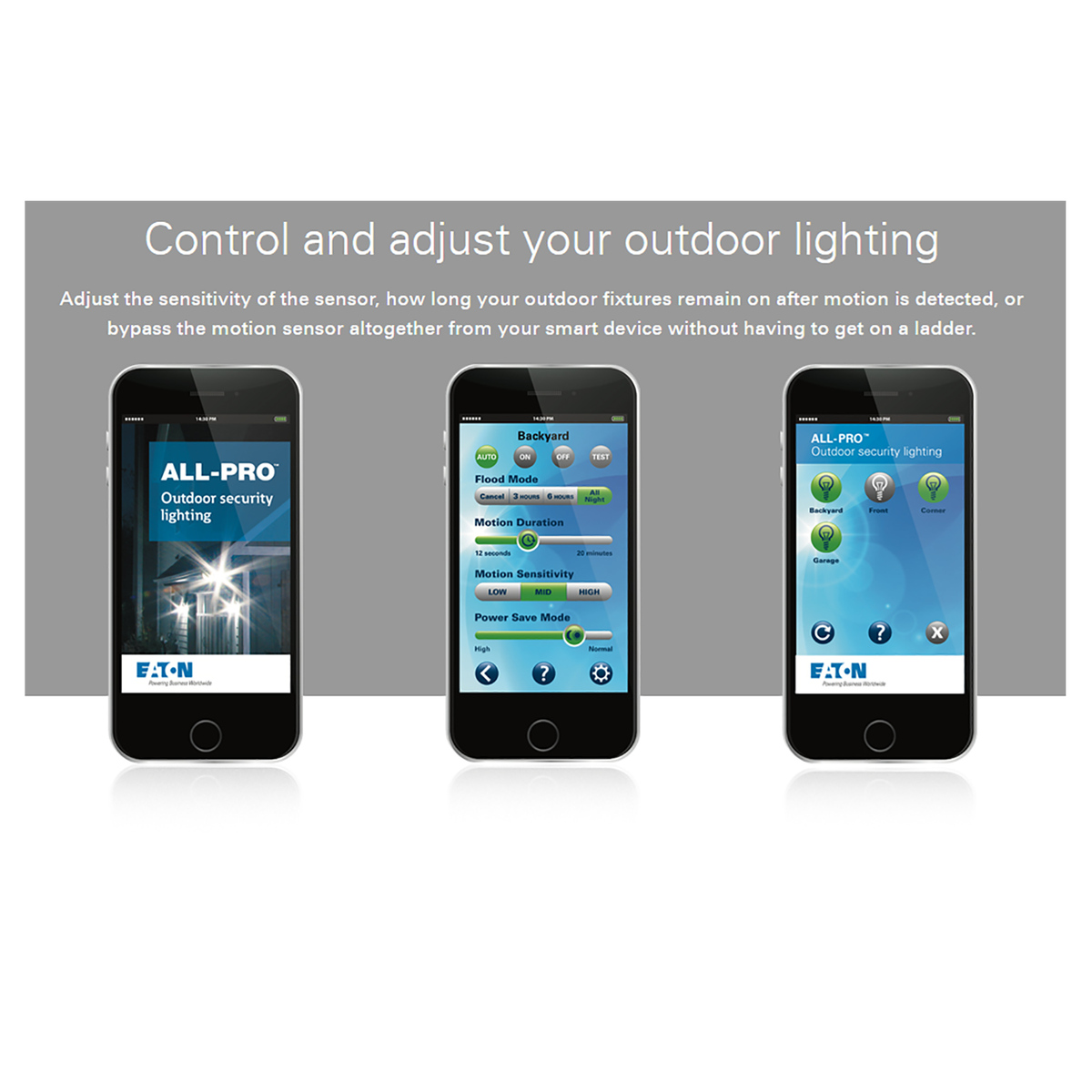

  • Adjust sensitivity, duration and flood override modes remotely

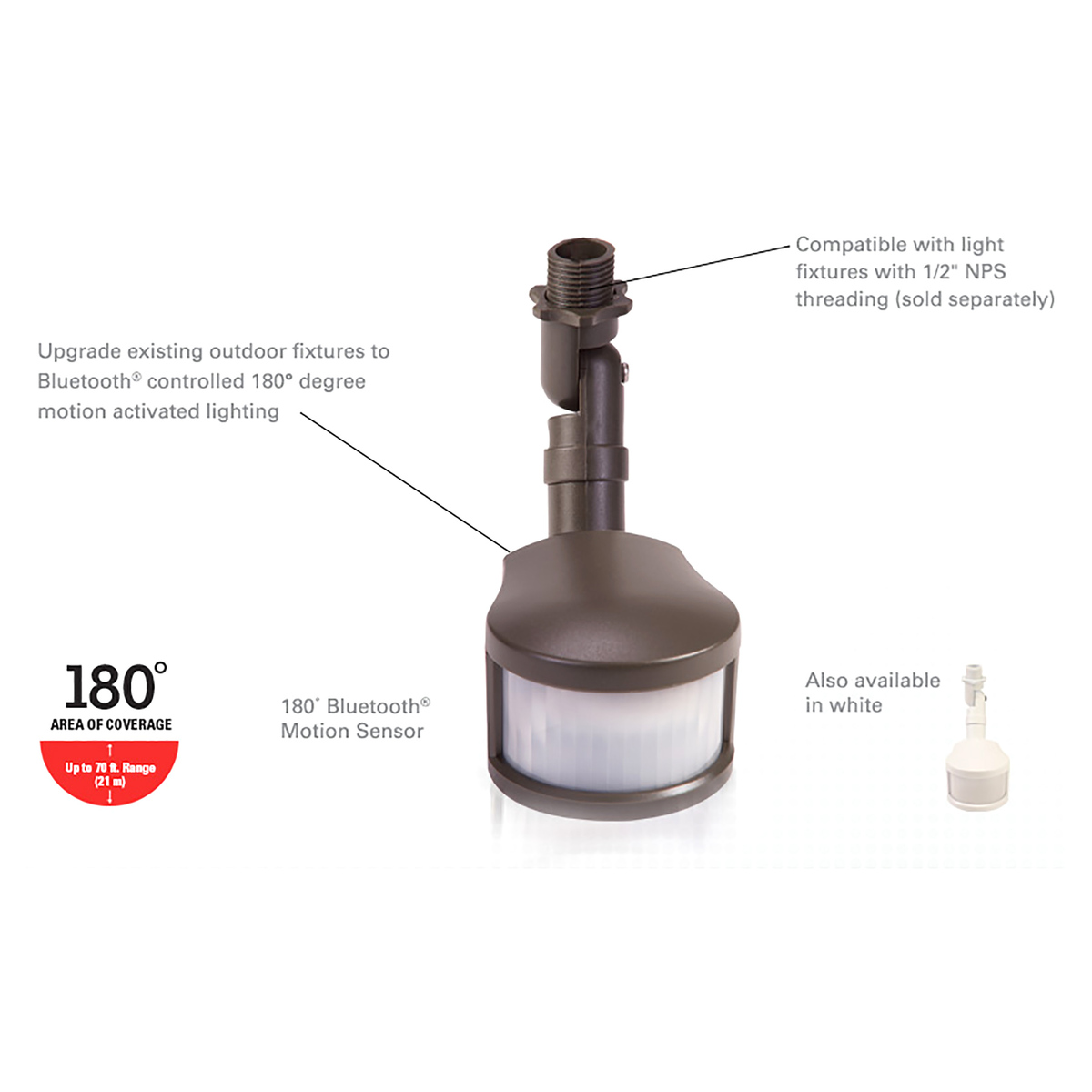

  • Compatible with outdoor lighting fixtures utilizing 1/2" NPS fittings
  • Material: Polycarbonate

  • Standard: LVD, EMC, CE, RoHS

  • IP Rating: Outdoor application IP65

  • LUX Setting: 2-2000lux svr adjustable

  • Size: 60*47*156mm (approx.)

  • Induction lighting time: 5s~6min adjustable time

  • Detection distance: Approx 12M, installation 1.5-2.5M High

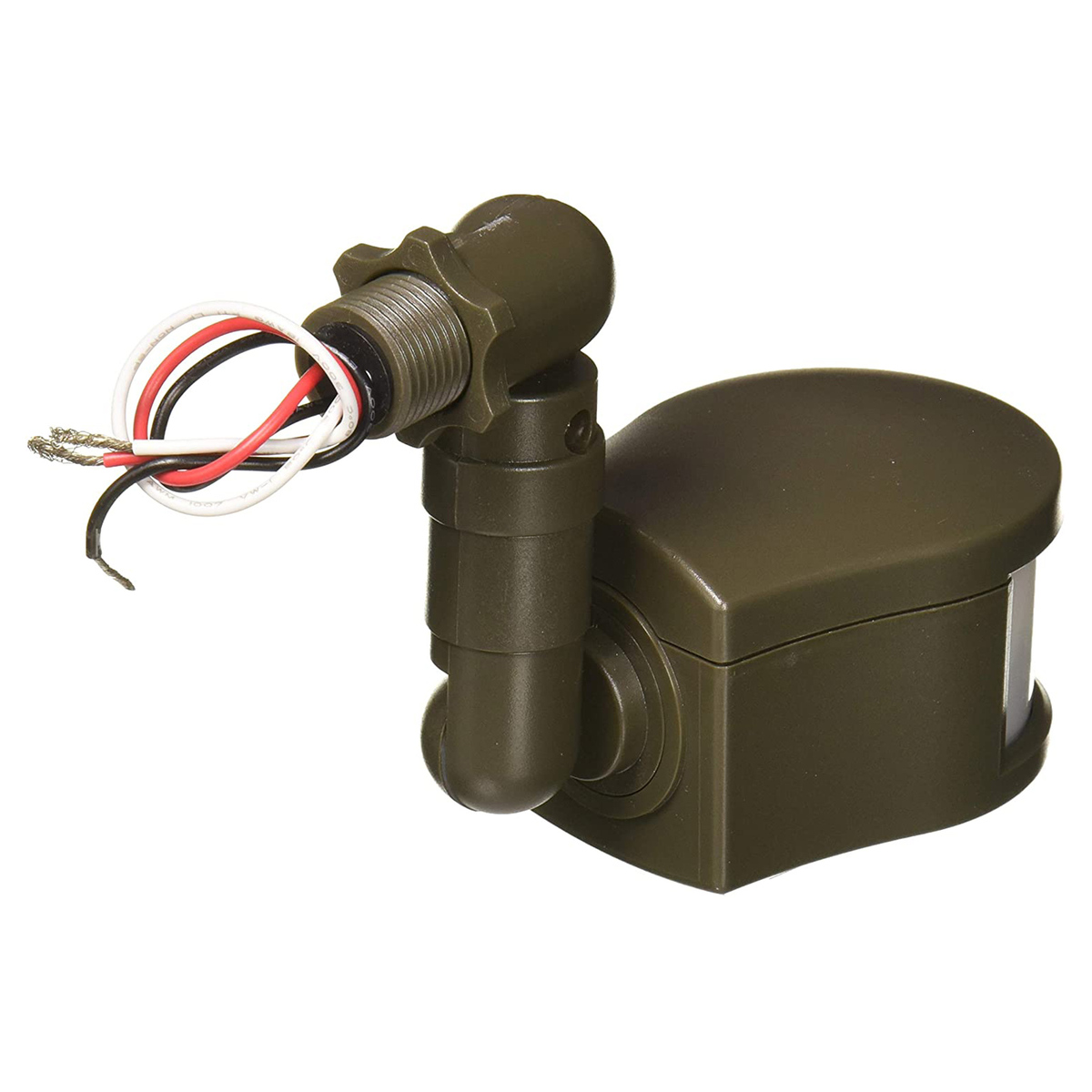

  • Connection:
    Blue color: Zero line (Neutral)
    Brown color: Live wire
    Red: Ground wire
    Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp , Exhaust fan 100W, Motor 100W, Electric Bell 100W, LED Light 100W
