Passive Infrared Sensor
A passive infrared sensor is an electronic sensor that measures infrared light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.
Noted: This product only works in the dusk or evening when the ambient light is less than 20 LUX or no light in the surrounding environment.
It utilizes the infrared energy from individuals as a control-signal source, it can start the load when one enters detection field. It can identify day and night automatically. It is easy to install.

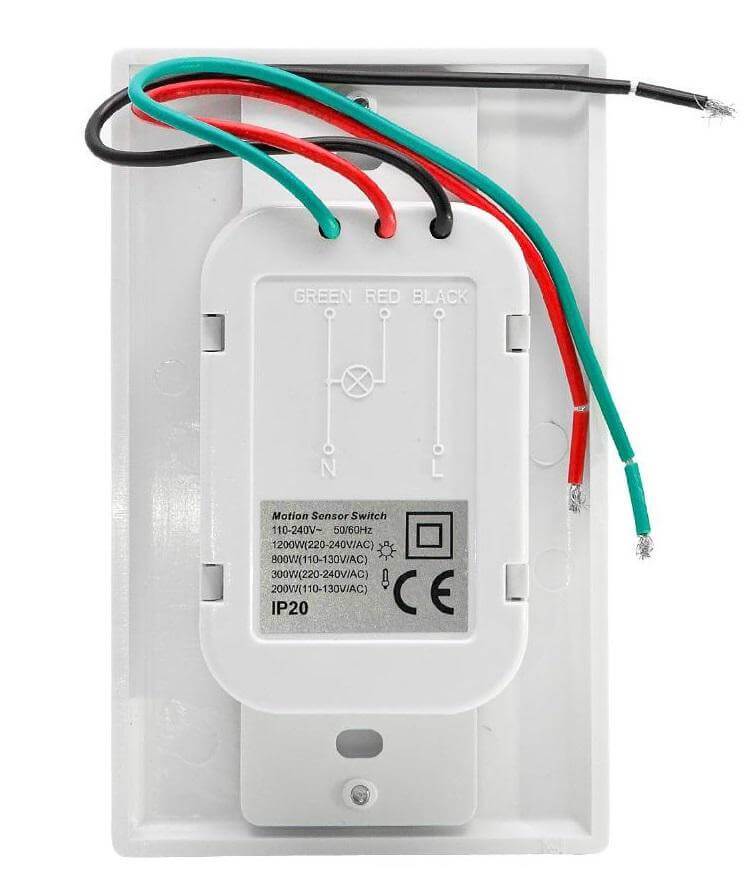

- Input Voltage: 110V/AC-240V/AC (150w Max Load for LED)
- Detection Range:180°
- Power Frequency: 50/60Hz
- Detection Distance:9m max(<24°C)
- Ambient Light: <20LUX
- Working Humidity:<93%RH
- Time-Delay:Min.:5sec±3sec Max.:30min±2min Defualt:30secs
- Working temperature:-20~40°C
- Rated Load: 1200W /220v(incandescent lamp) 300W/220V (energy-saving lamp) 800W/110V (incandescent lamp)
- Power Consumption: 0.45W(work); 0.1W (static)
- Detection Motion Speed: 0.6~1.5m/s

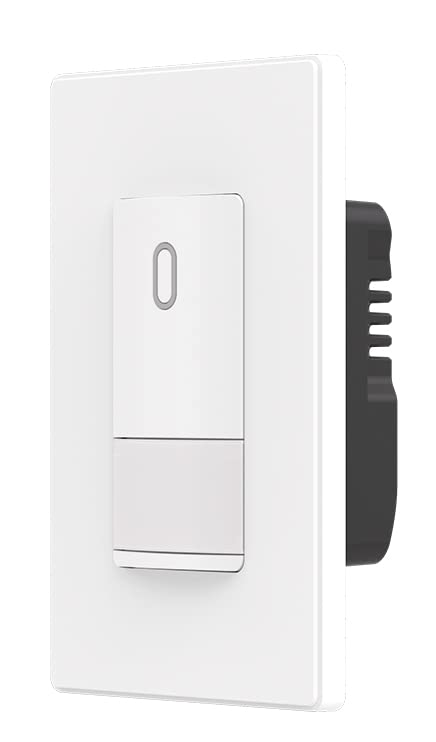

- PIR Motion Sensor Switch
1.It can only work in the ambient light less than 20LUX (dark).
2.Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basic (set time).
3.Time-delay adjustment: It can be set according to the consumer's desire. The minimum time is 5sec±3sec. The maximum is 30min±2min.

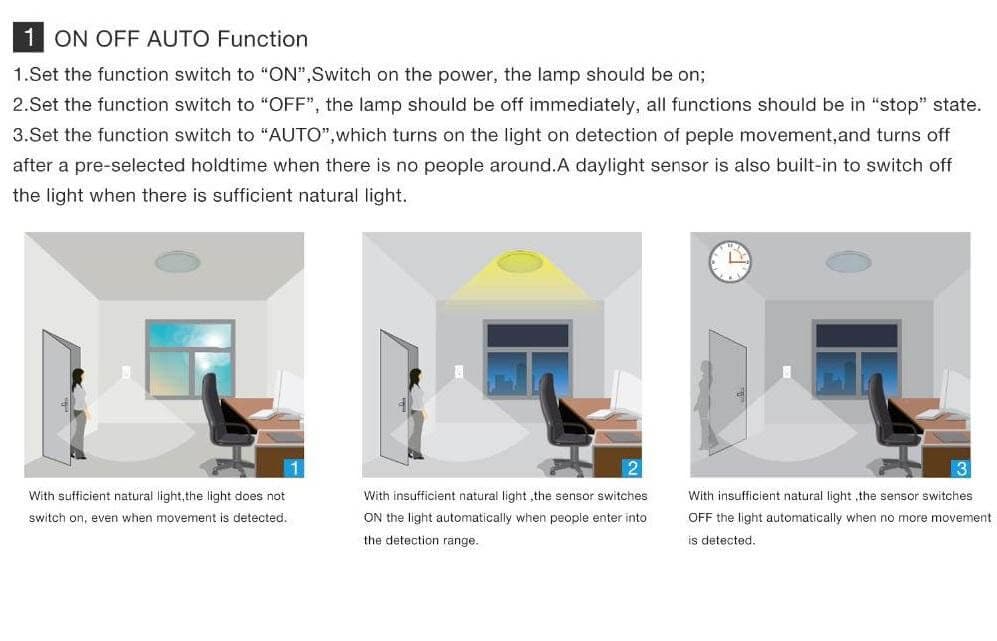

4.The switch: The switch is "ON","OFF","AUTO".
1.Set the function switch to "ON", turn the TIME knob anti-clockwise on the minimum after taking the board-face off.
2.Switch on the power, the lamp should be on;
3.Set the function switch to "OFF", the lamp should be off immediately, all functions should be in "stop" state.
4.Set the function switch to "AUTO", after 30sec it enters into a working position, the lamp will be turned on after receiving the inductor signal. Under no inductor signal condition, the lamp should be off within 5~10sec, the lamp should be on again after 5 sec.
