LED RETROFIT LIGHTING 150W or 240W HPS, MH, HID REPLACEMENT 5000K 100-277VAC
LED RETROFIT LIGHTING 150W or 240W HPS, MH, HID REPLACEMENT 5000K 100-277VAC
Couldn't load pickup availability

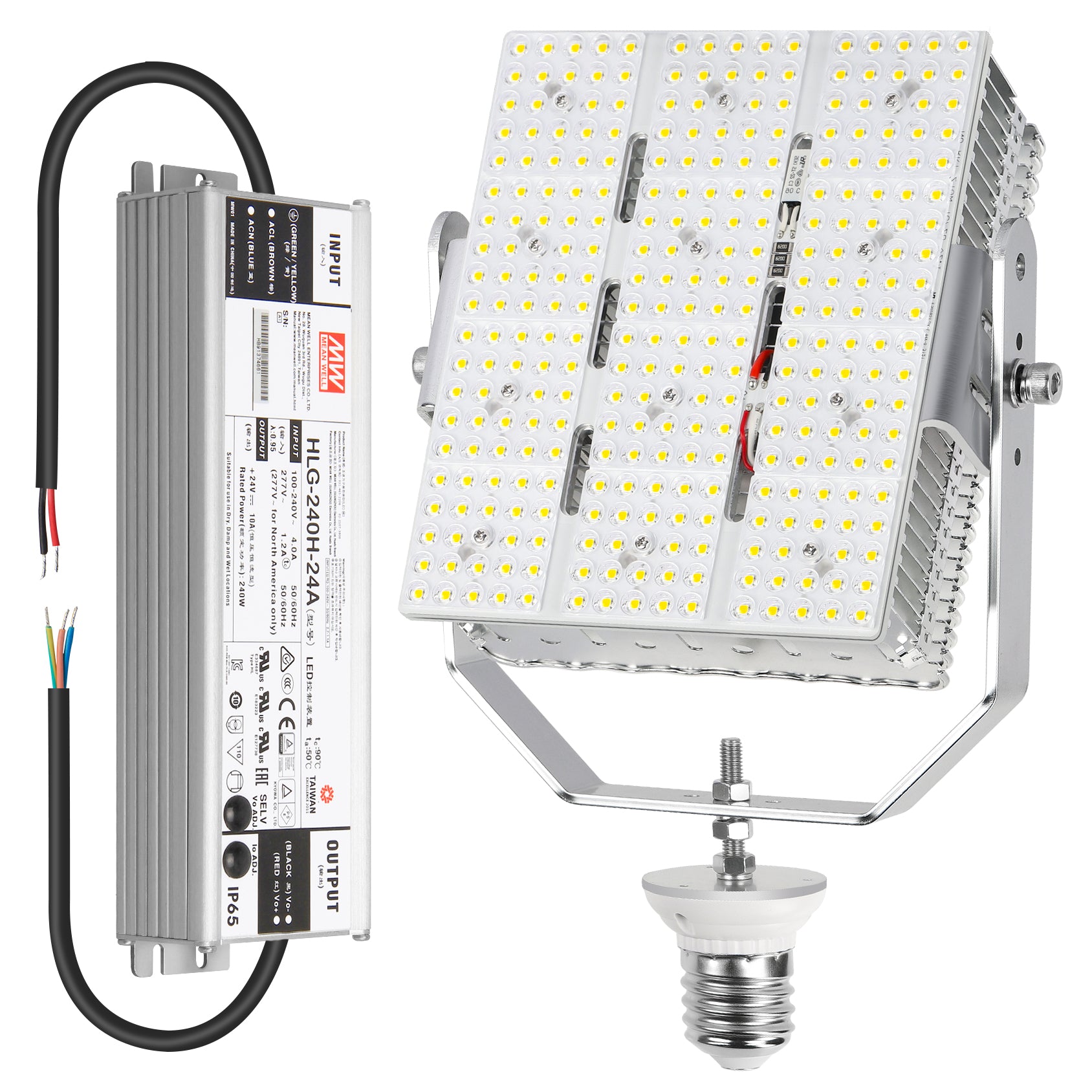

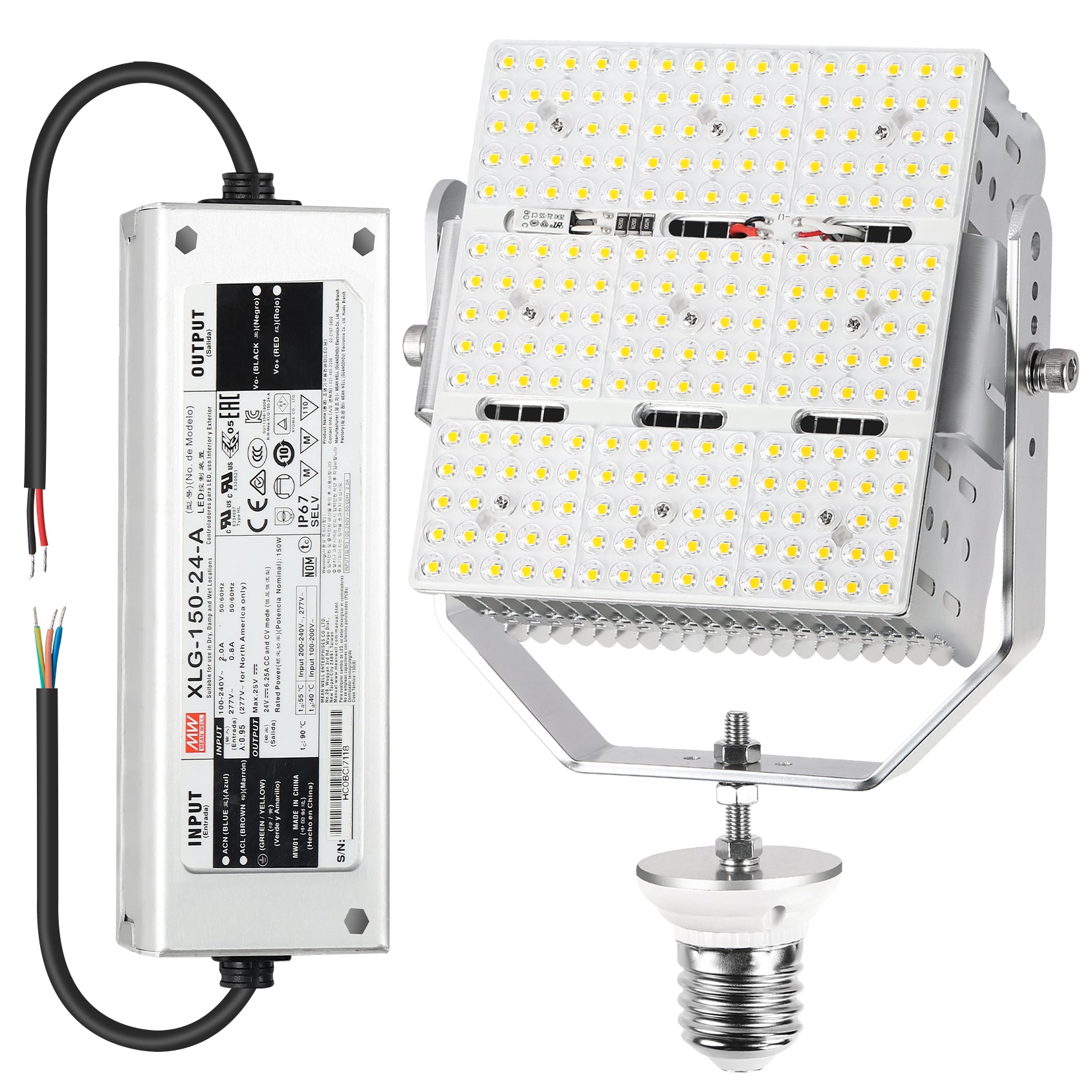

The Omni-Ray Lighting LED Retrofit Kit is designed to allow cost affordable conversion from MH/HPS/HID applications to LED. They are the perfect tool for accessing the cost-savings and low maintenance of LED lighting, without replacing entire fixtures. Retrofit kits feature a compact size to fit into all types of existing fixtures that include wall pack, flood light boxes, area light, high-bay and street light applications.
A cost-effective and long-term lighting solution, the Omni-Ray Lighting LED retrofit kit provides a 70,000+ hour lifespan and can replace 2500watt-750watt HID light, significantly reducing your facility’s energy costs.
The retrofit kit provides a 120 degree beam with a 5000K color temperature.
To ensure your LEDs never overheat, the kit features Fan Technology that provides up to 70,000 hours of 24/7 operation.
Intended Applications

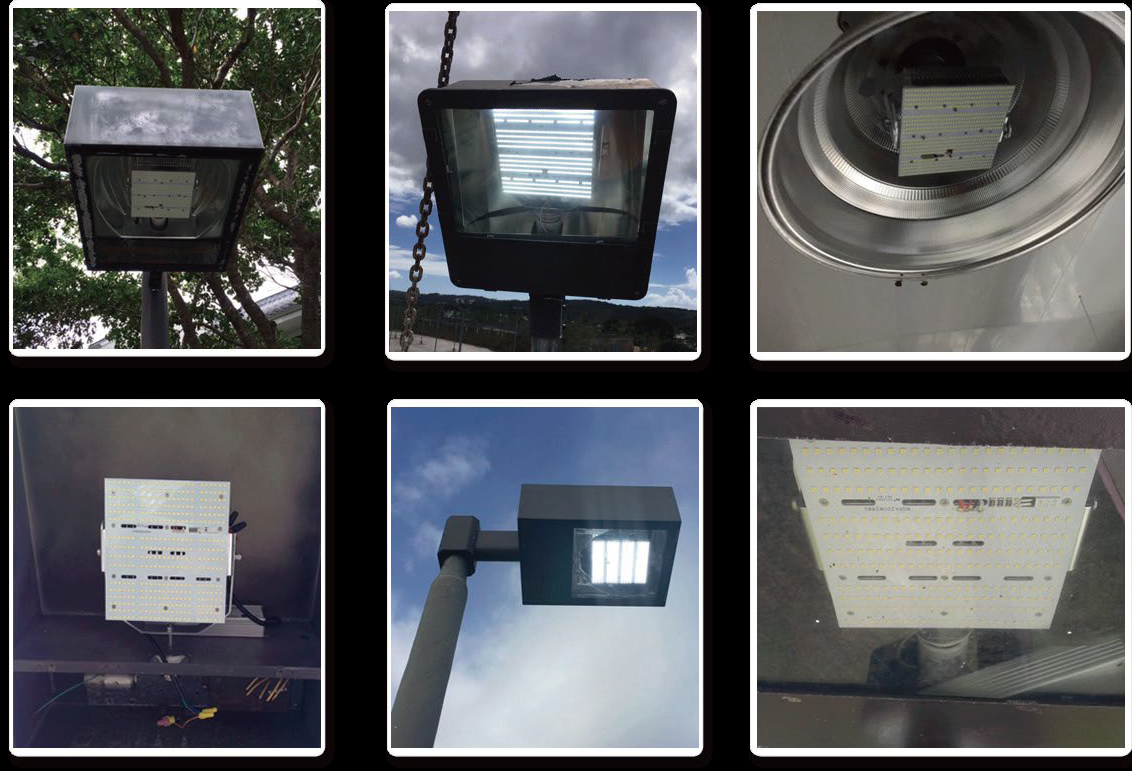

LED retrofit kits for conventional shoebox, cobra head, wall pack, canopy & high bay fixtures.
Construction & Materials
Heavy duty one-piece die cast aluminum heat sink
Professional and clean designed metal core printed circuit board (PCB)
Proven reliable LED Cooling fan
Equipped with a strain relief clamp to protect electrical cables and soldering points
Integral thermal control sensor which reduces drive current, when ambient temperatures exceed rated temperatures
Mounting
Horizontal mounting with “L” bracket | Or vertical mounting with “I” bracket | Or custom plate mounting with plate adapter
Environmental System
Retrofit module inside of indoor and outdoor lighting fixtures
Electrical System
External Mean Well LED driver, Universal input voltage 100-277VAC, 50/60Hz
Optical System
High performance Philips Lumileds LUXEON 3030 2D LED CHIP, High precision optics optional
Color temperature
5000K
Minimum 50,000 hours life
Lighting Control Available by special order
5 year parts or replacement warranty
Listing & Certificates
ETL and cETL LED modules comply with IESNA LM-79 and LM-80 standards. DesignLights Consortium™ Qualified and classified for DLC Standard (some models are not DLC qualified), refer to www.designlights.org for details.
