(CASE OF 25) Linkable LED T8 8ft 144w 21,888 Lumen CLEAR LENS (NO RF) Quad-Row w/Mounting Hardware

(CASE OF 25) Linkable LED T8 8ft 144w 21,888 Lumen CLEAR LENS (NO RF) Quad-Row w/Mounting Hardware

Regular price $680.69 USD
Regular price $799.00 USD Sale price $680.69 USD
Sale Sold out

SHIPPING INCLUDED

PRODUCT VIDEO


 SPECIFICATION SHEET

ACCESSORIES AVAILABLE

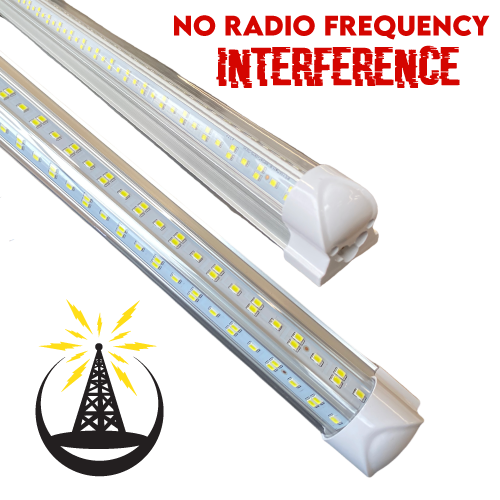

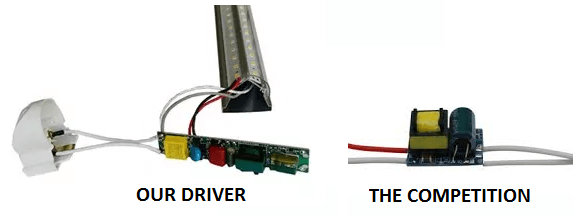

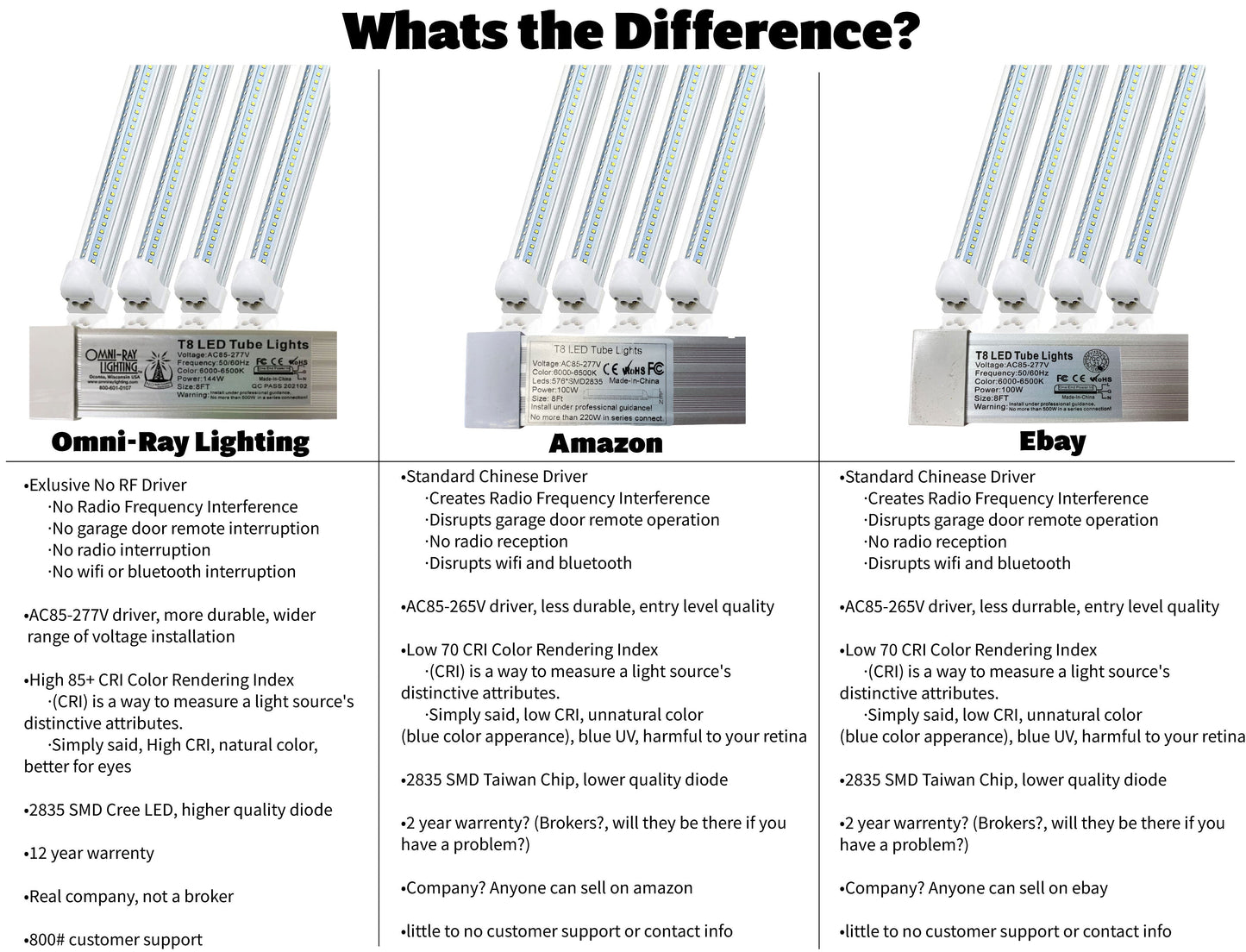

NO RF SERIES -- This product has a RF filtering system within the driver in each unit.  RF interference is a fairly common problem in high output linear lighting, due to "RF Noise" in the AC line feeding the light.  This problem creates "static" in radio reception as well as garage opener remote control performance issue.



NO RF DRIVER EMI TEST REPORT

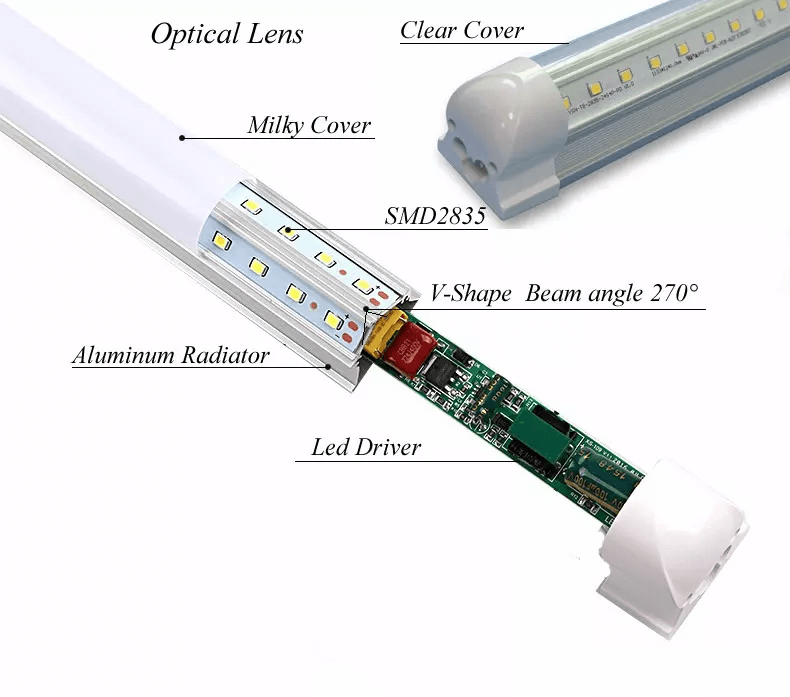

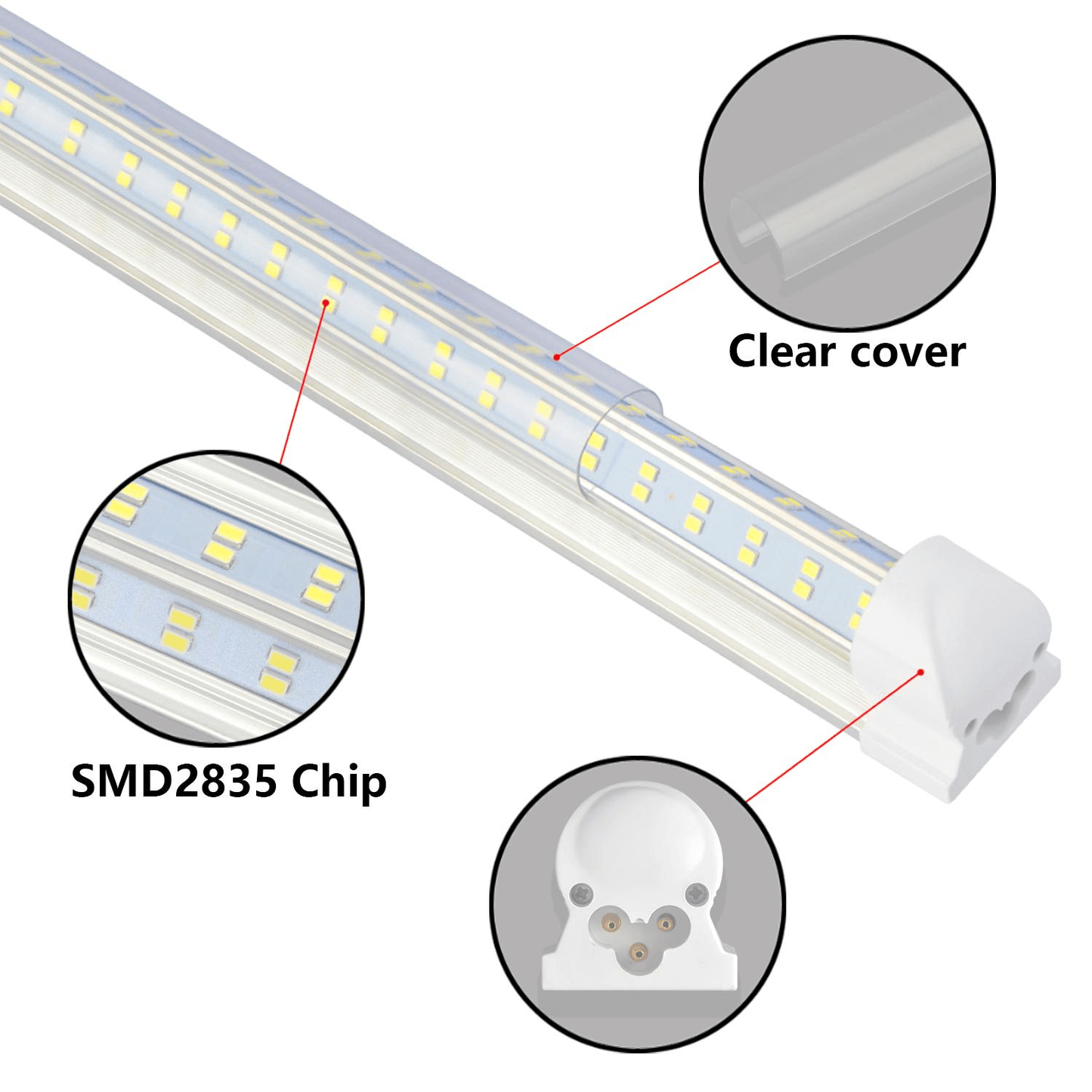

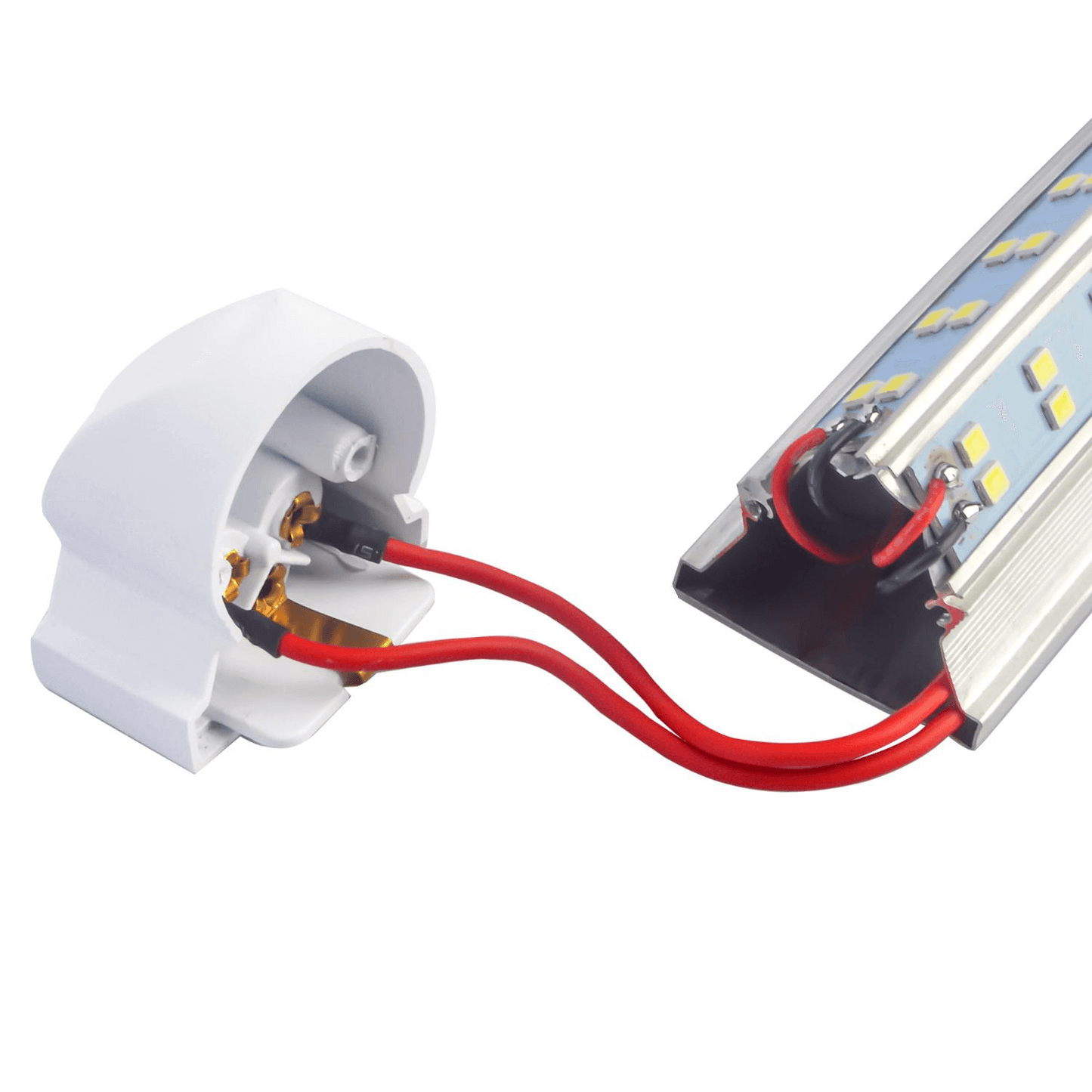

This is our newest High Output Integrated Series product.  This model features a Quad-Row  LED configuration using 144 watts for an astounding 21,888 lumens of throw at 270° in a CLEAR LENS.

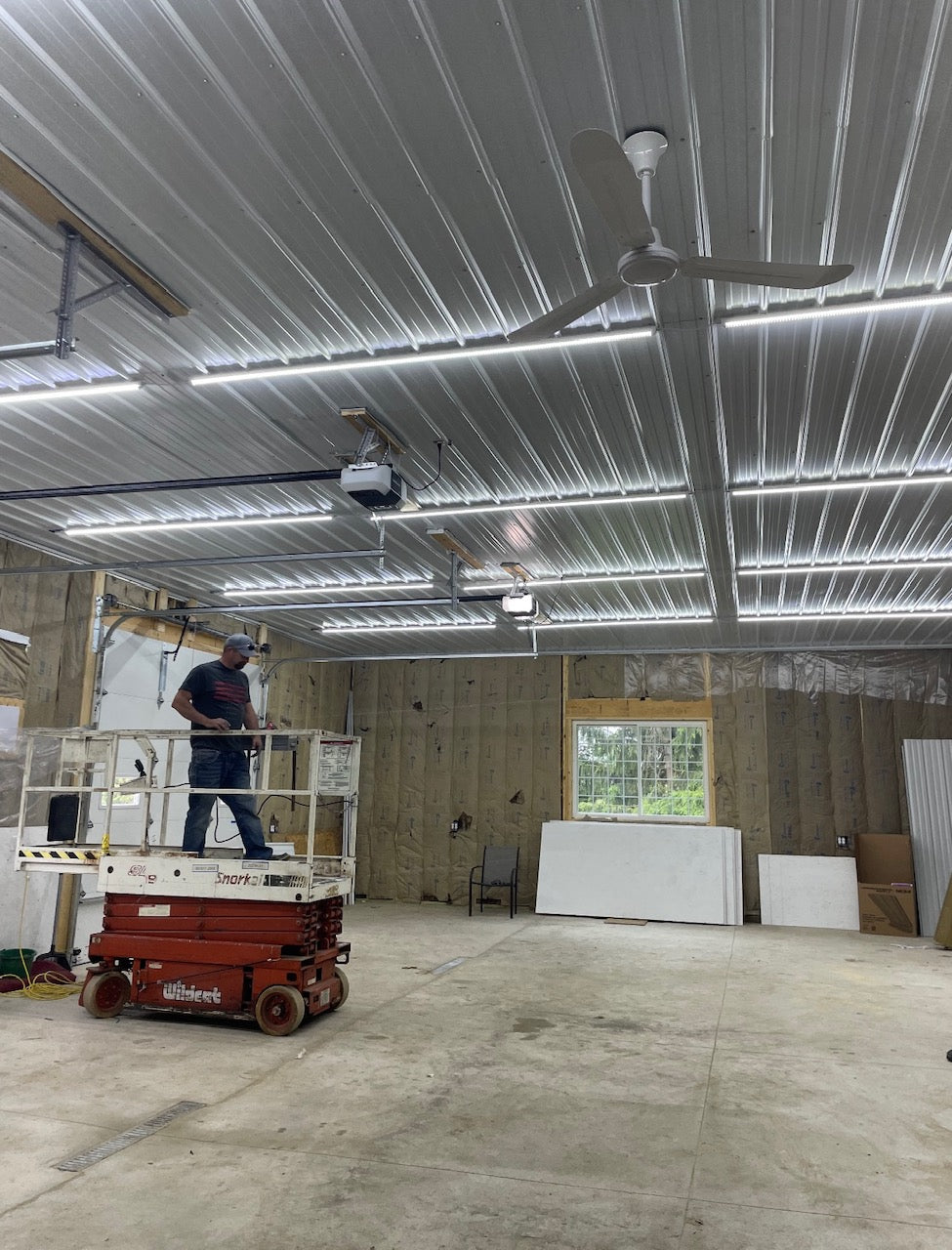

Designed for 14-25' ceilings

 - - These lights are very bright and are not recommended for low mounting heights

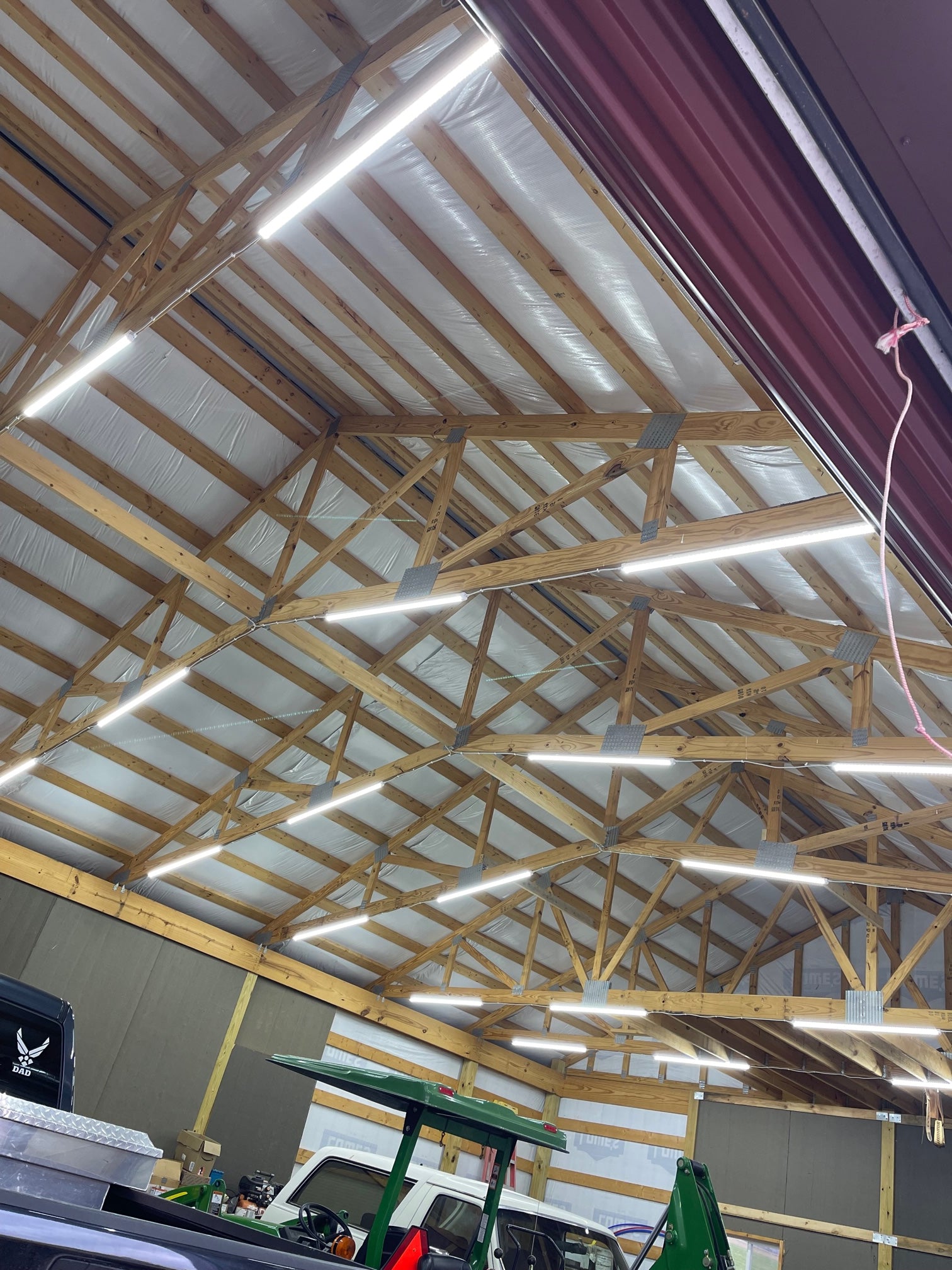

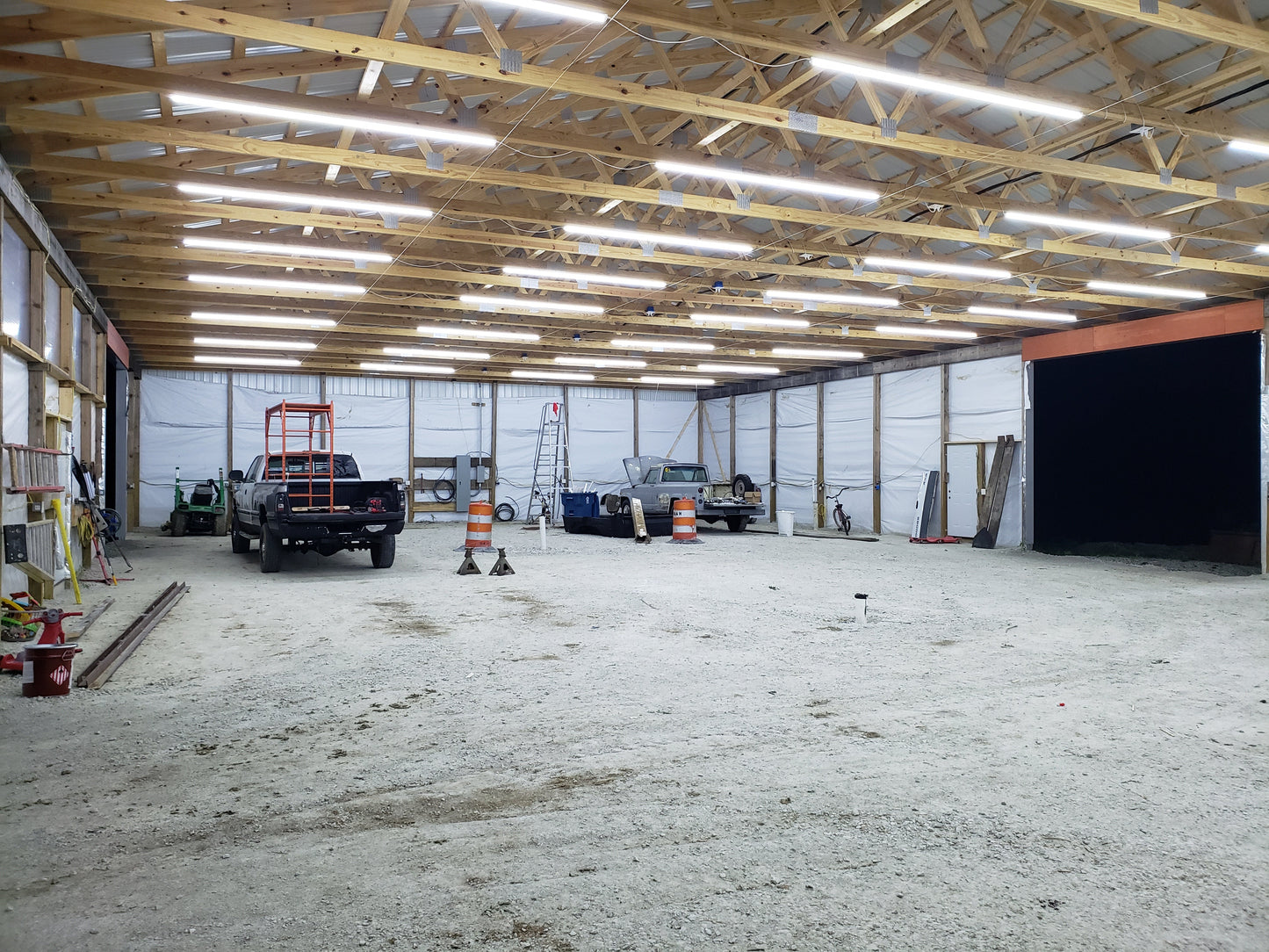

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

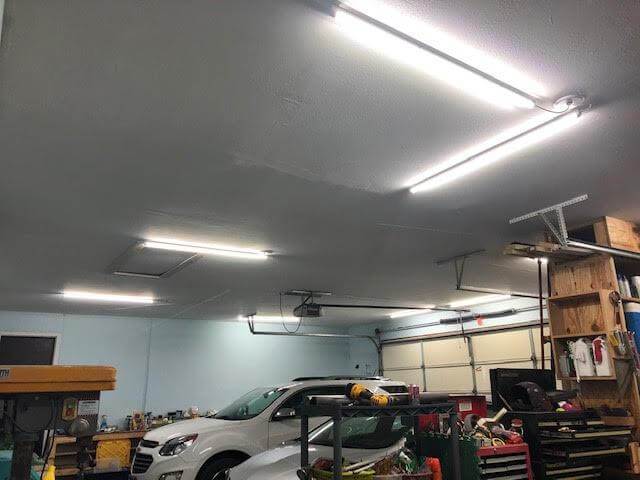

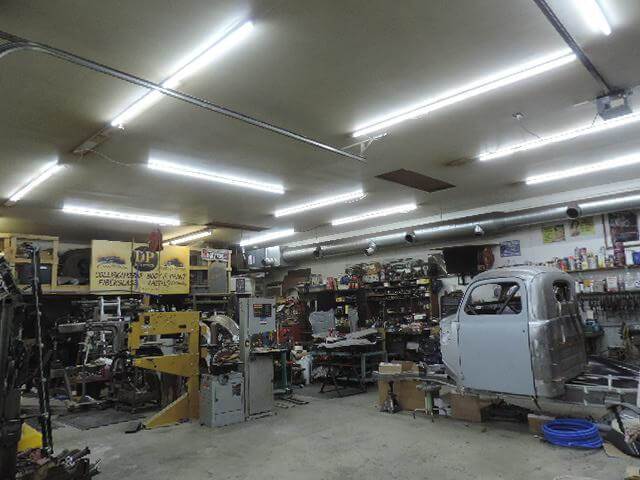

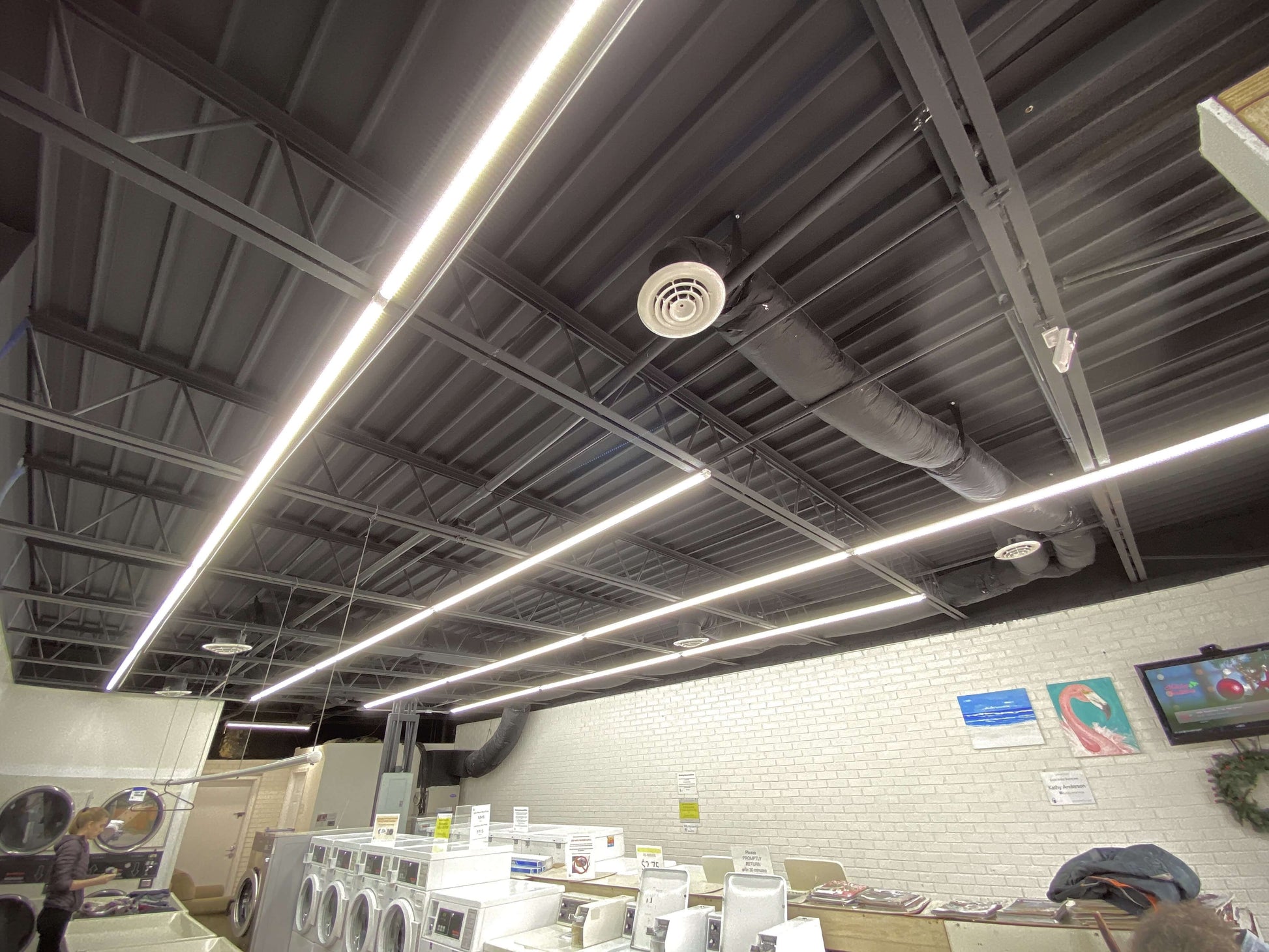

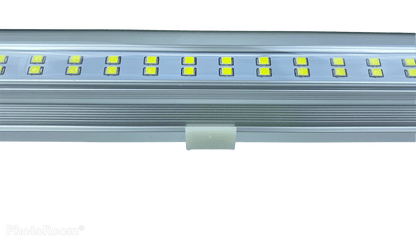

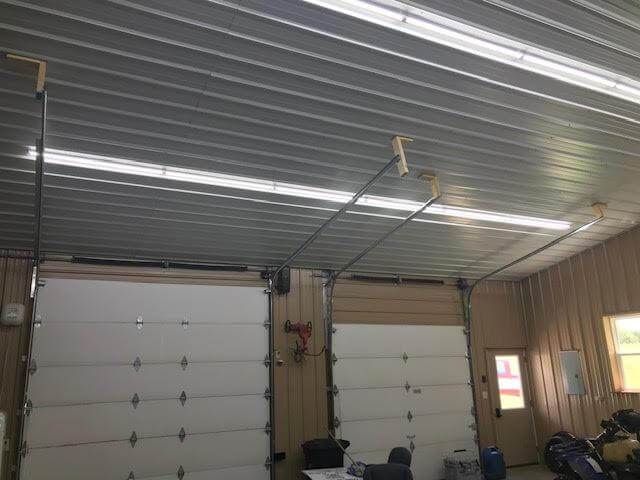

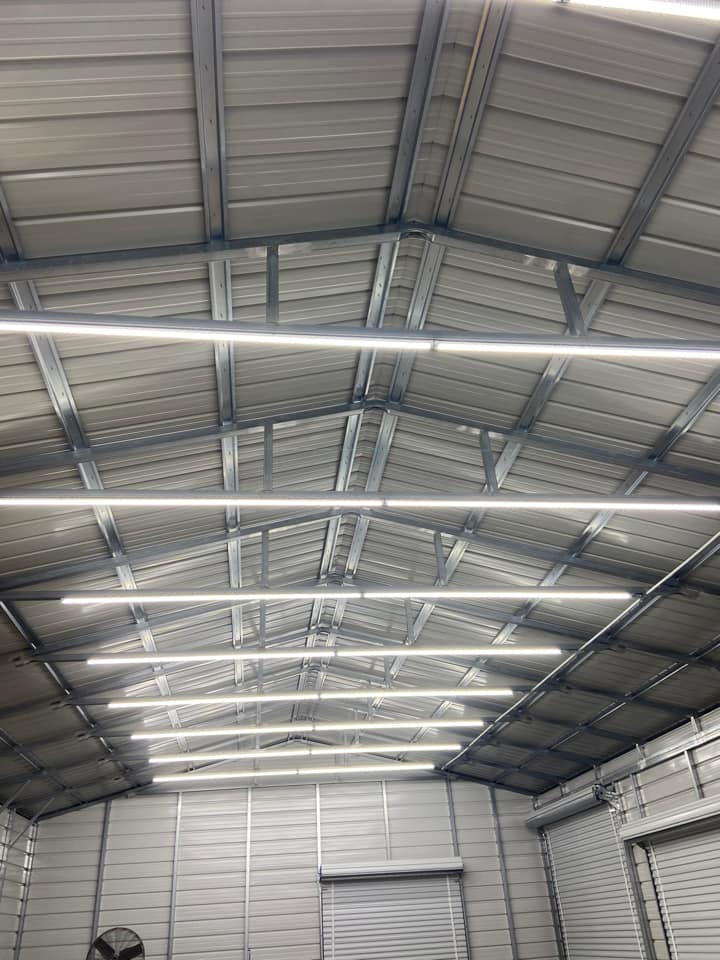

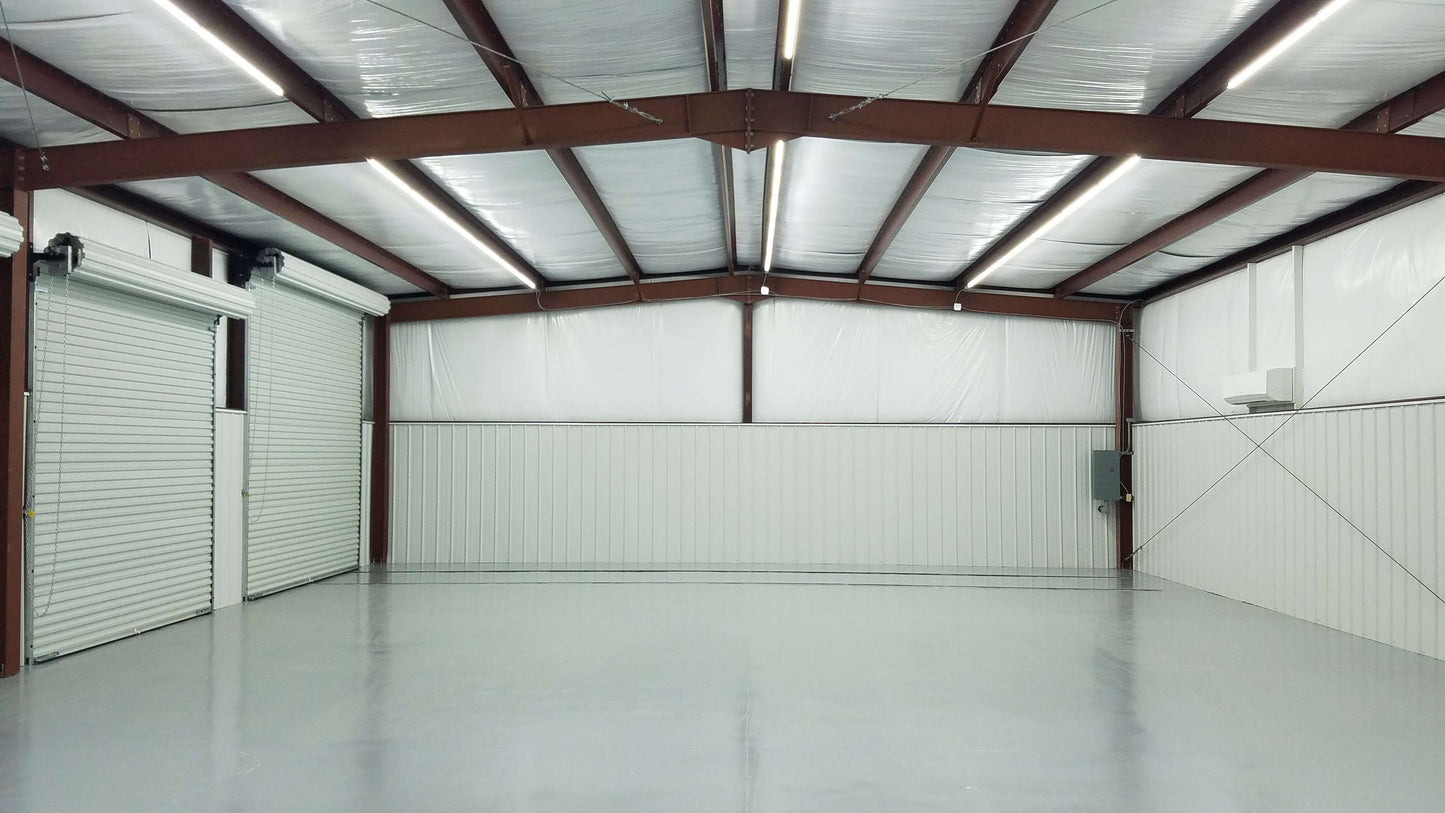

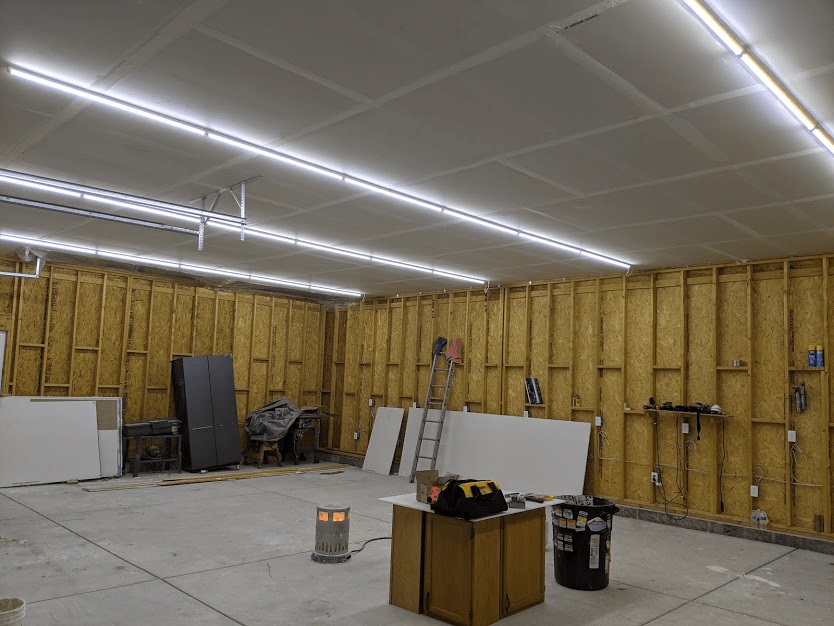

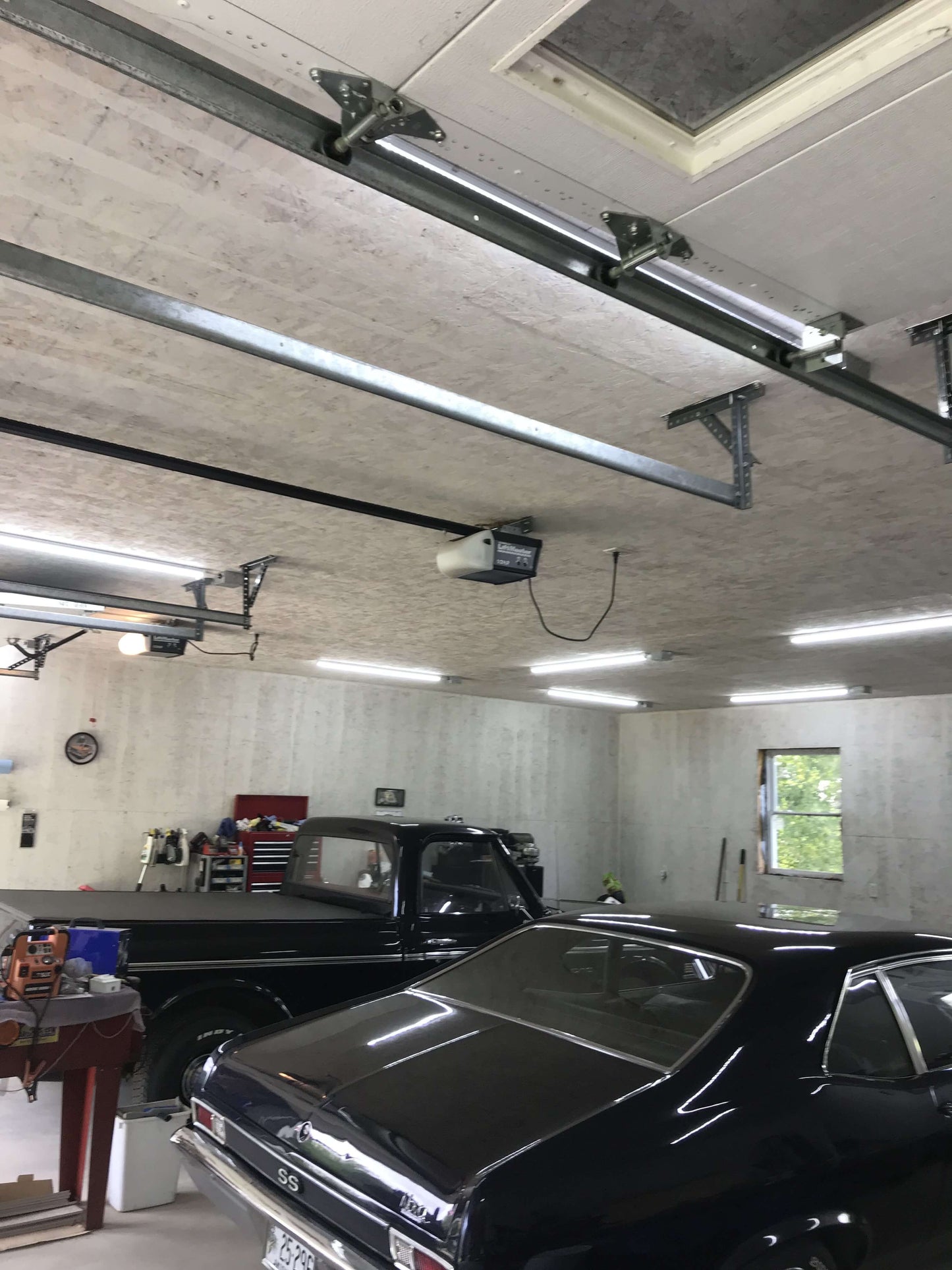

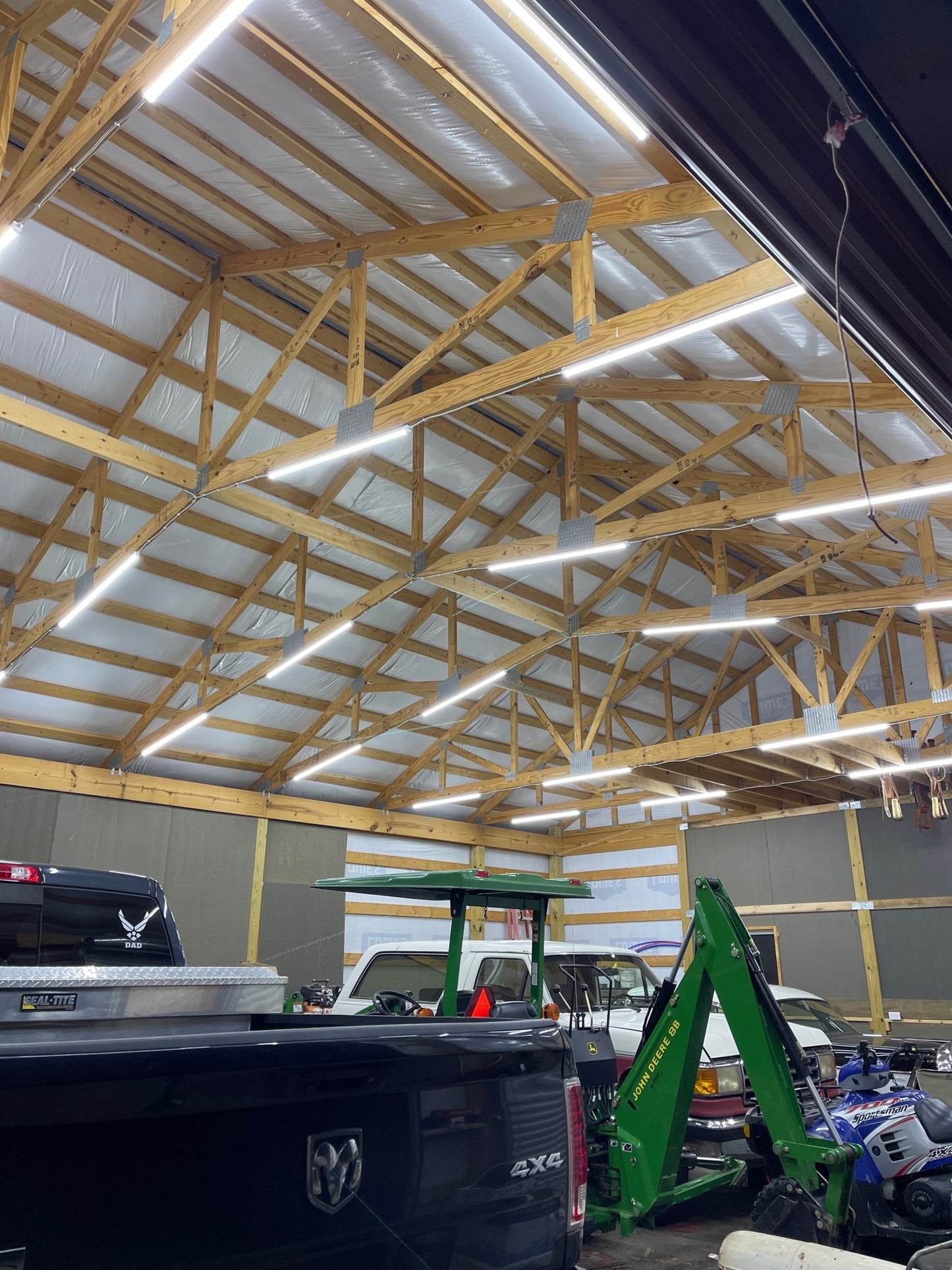

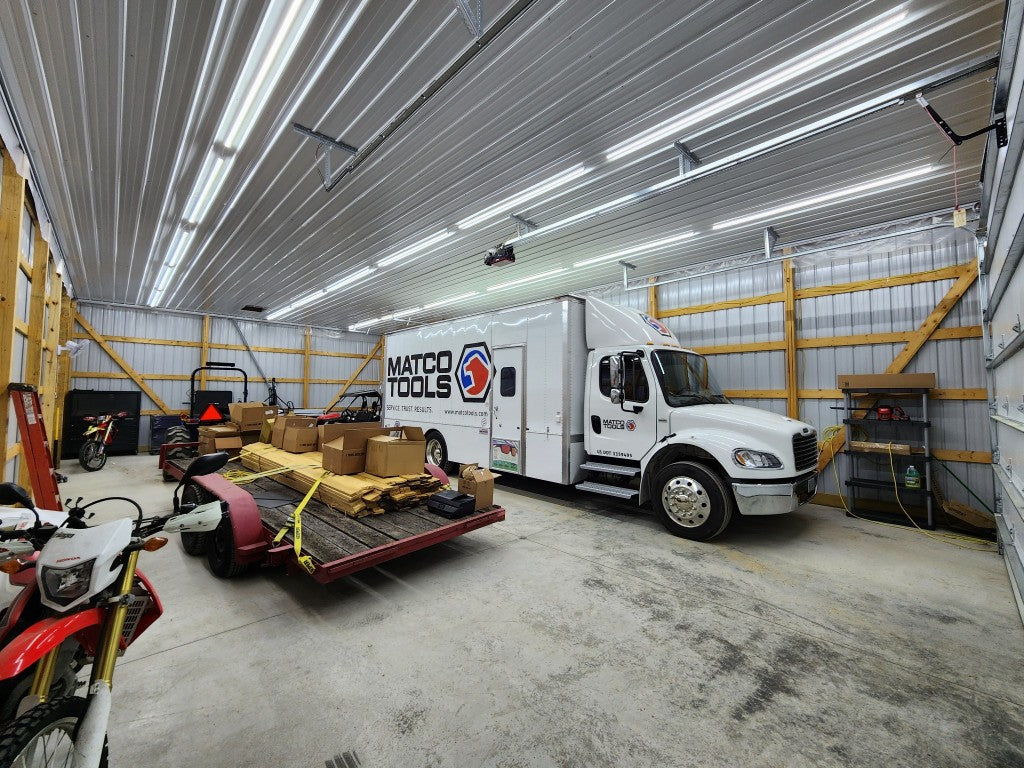

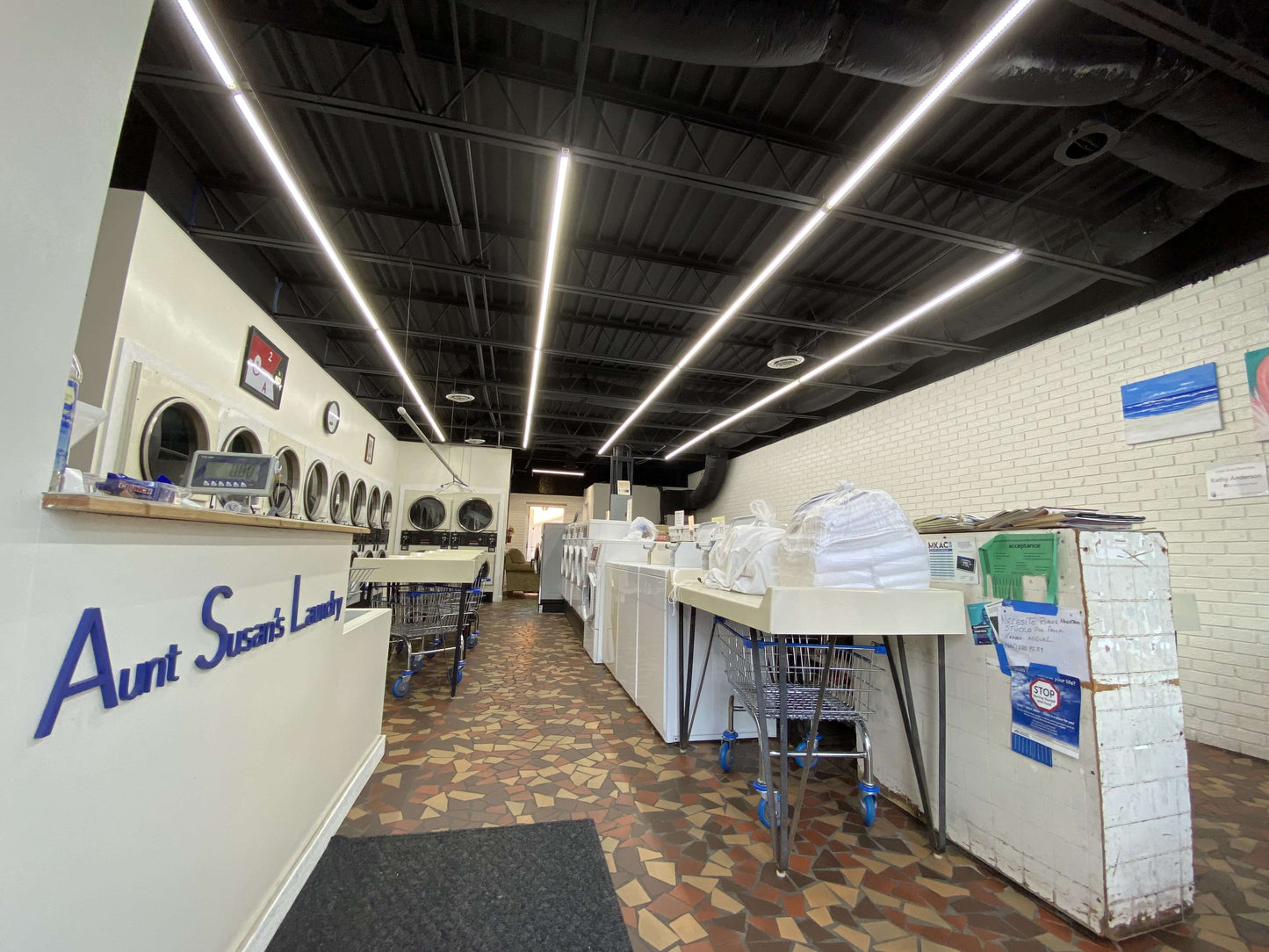

- The New innovative design includes Stainless Steel Mounting Hardware and Quad-Row 270° Projection.  Looks and performs as a high end, Commercial/Industrial LED product should.  Use in work shops, utility sheds, utility and laundry rooms, etc.

- Our Quad-Row Series lights provide excellent lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using multiple lamps.

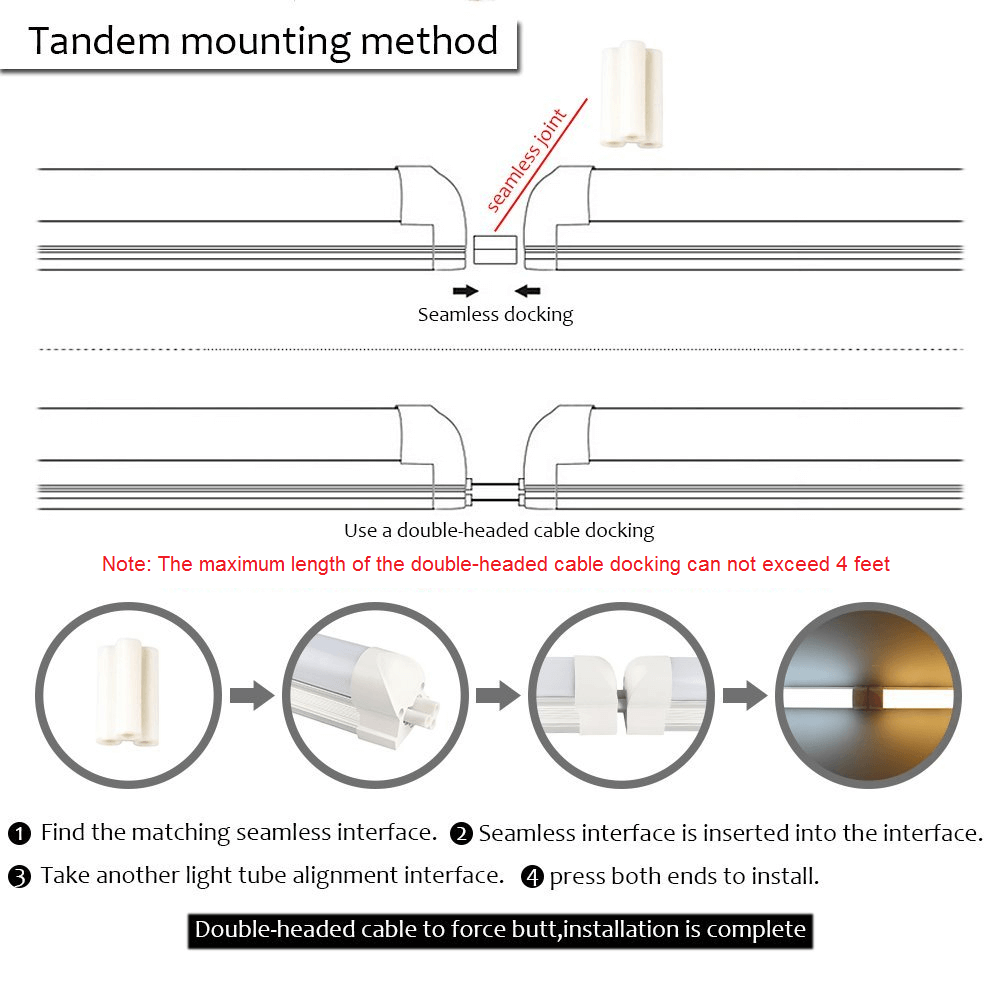

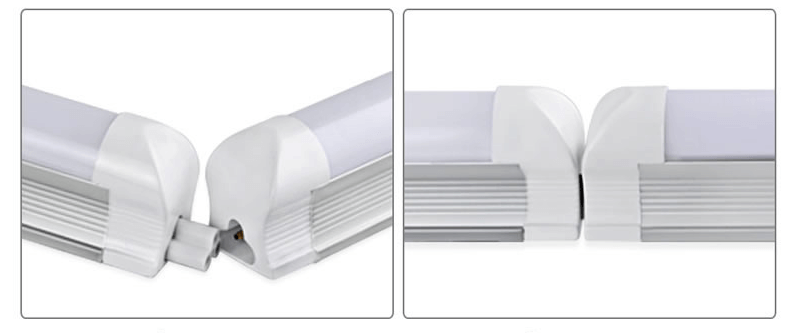

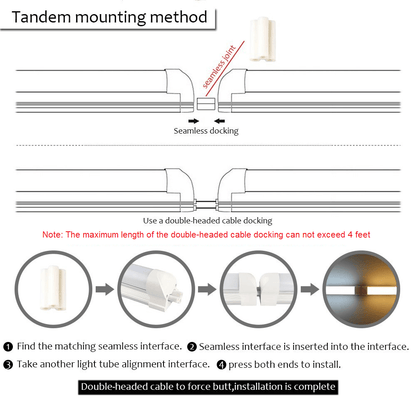

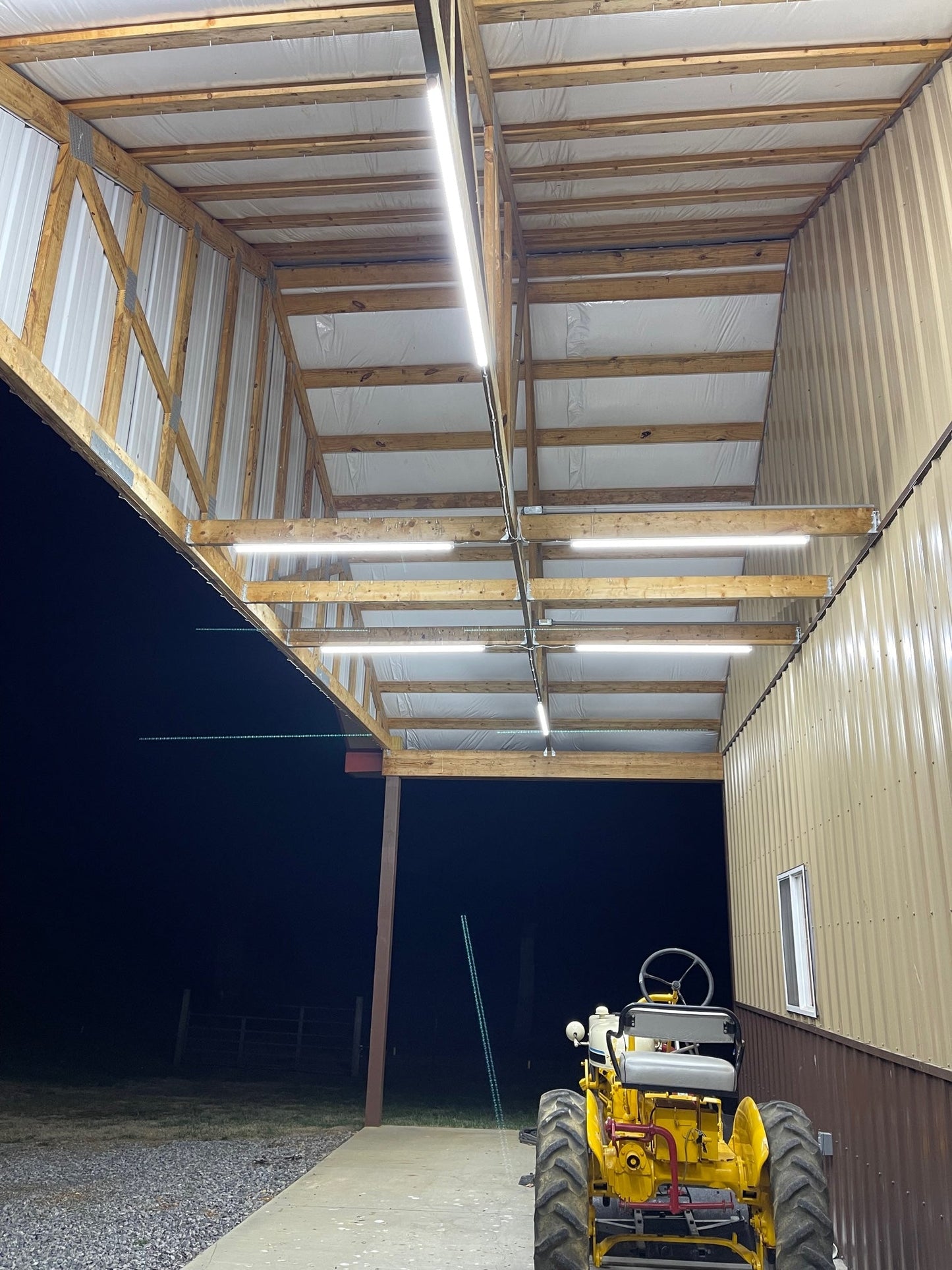

- Easy to install, offering end to end, continuous run installation, up to 3 in the run.







*MAXIMUM OF 3 UNITS LINKED TOGETHER

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

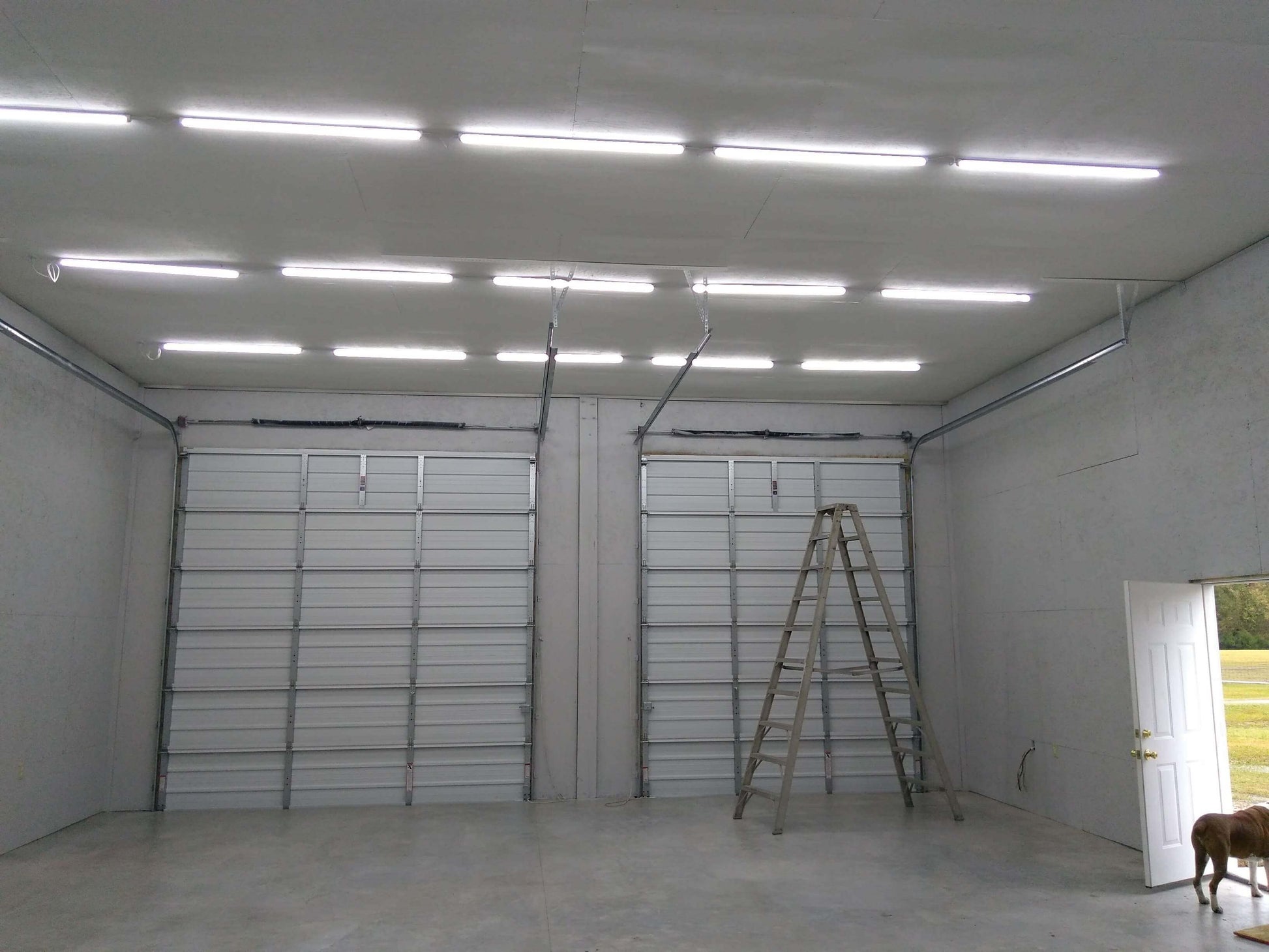

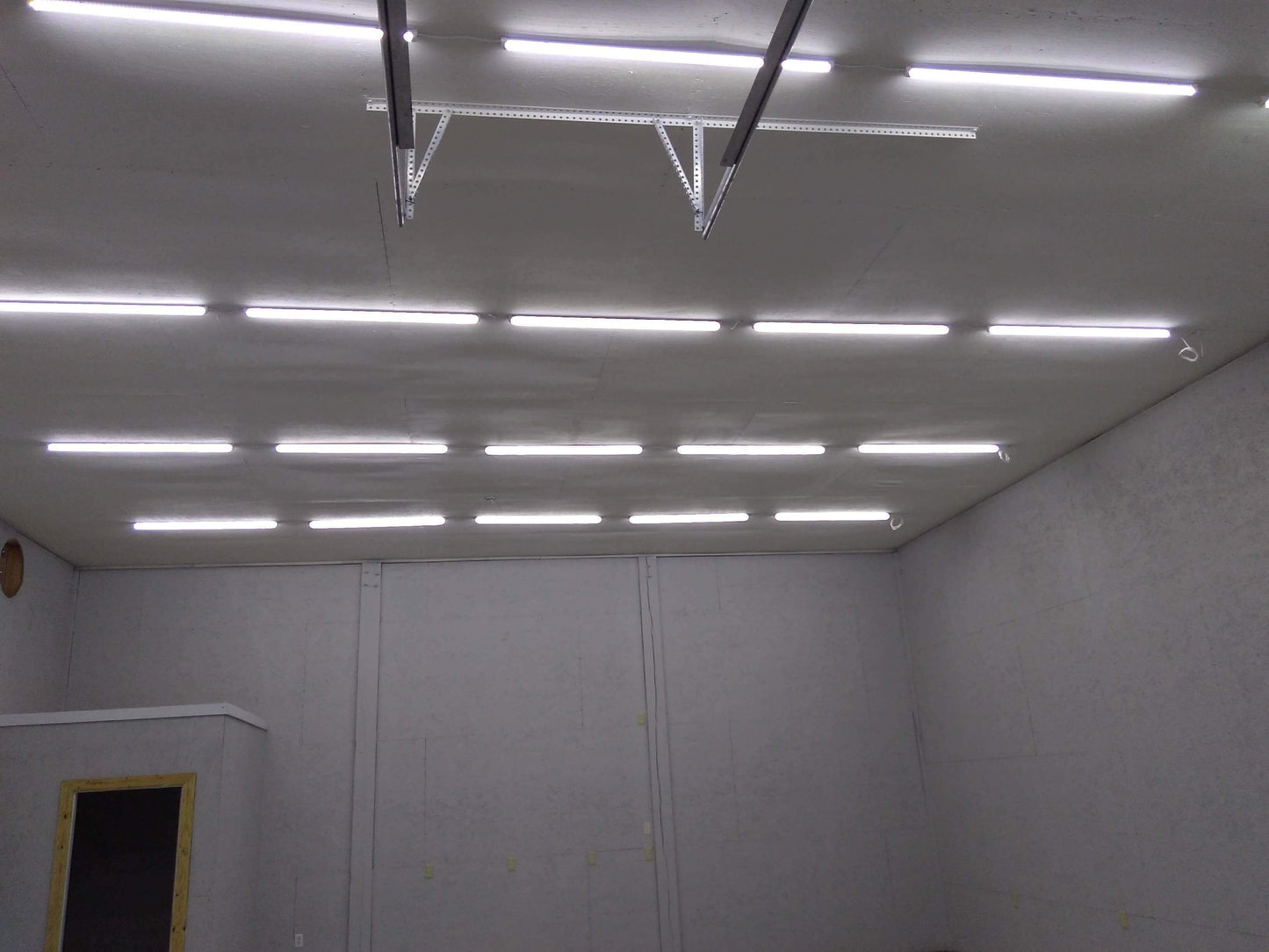

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.

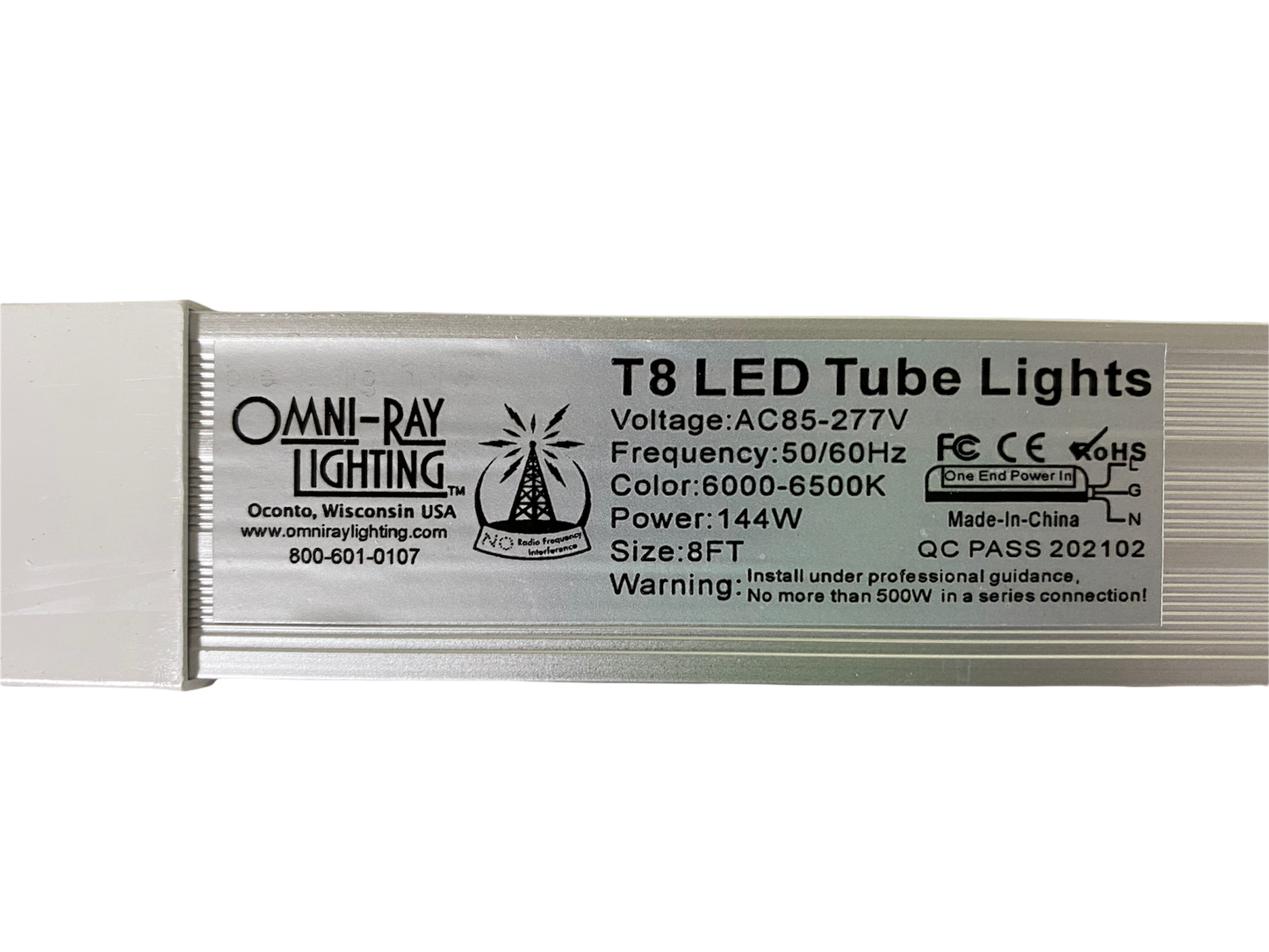

Specifications:
-T8 8'
-144 Watt
-Cree LED's
-21,888 Lumens CLEAR LENS
-85-265 VAC Driver
-152 Lumens Per Watt - High Efficacy System with Superior Driver Technology

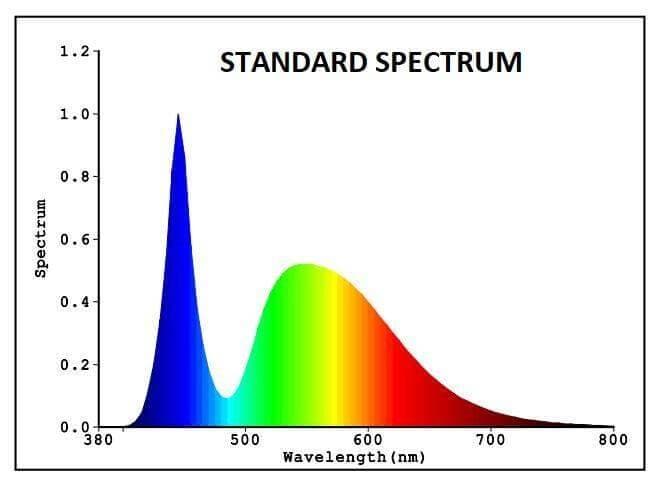

-5500-6000K White is standard, other Kelvin may be available by special order

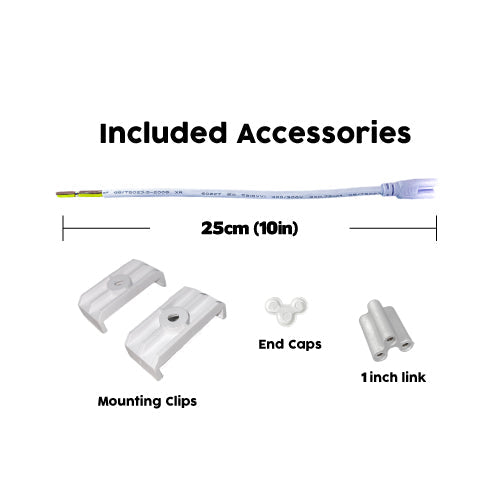

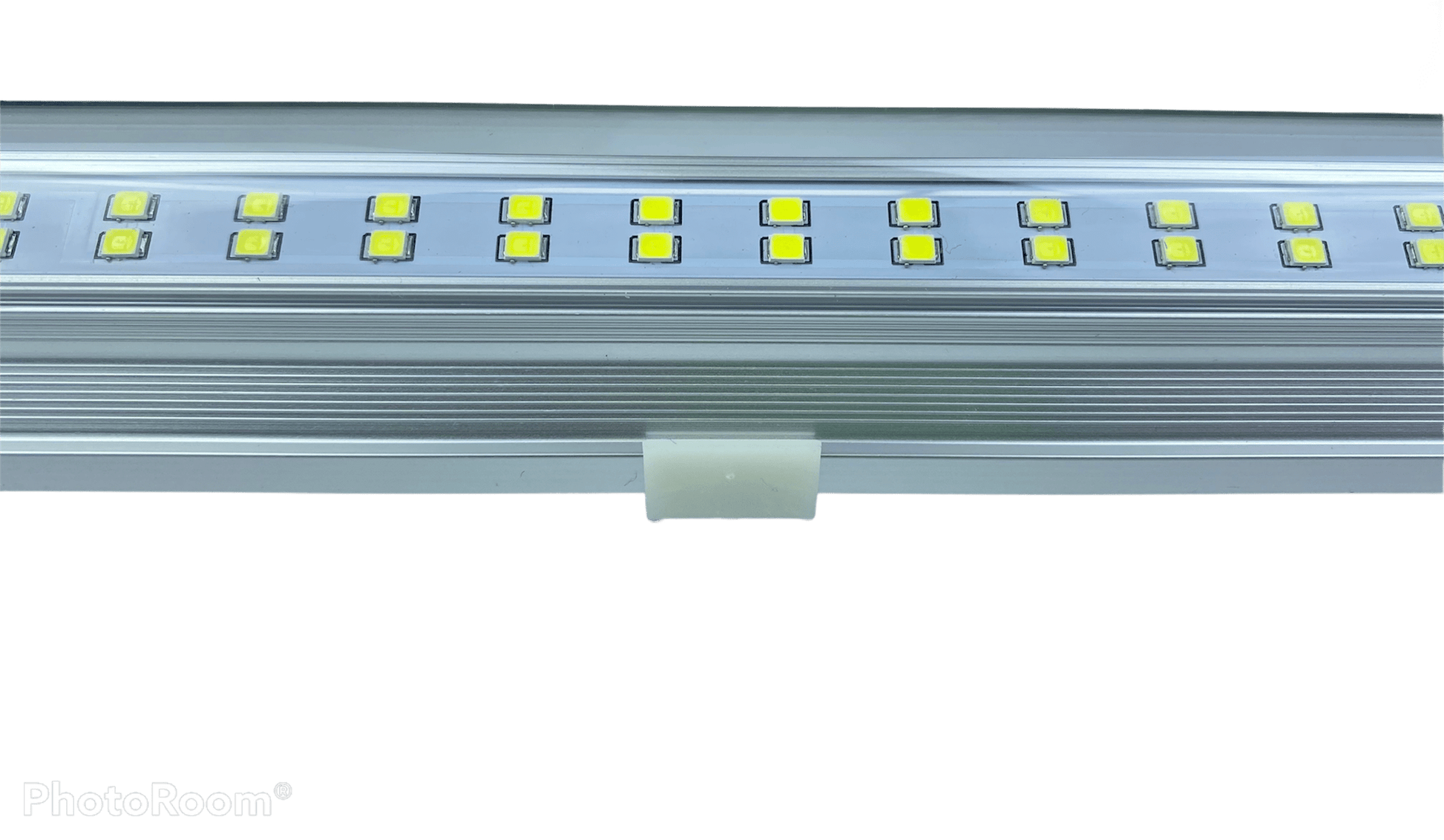

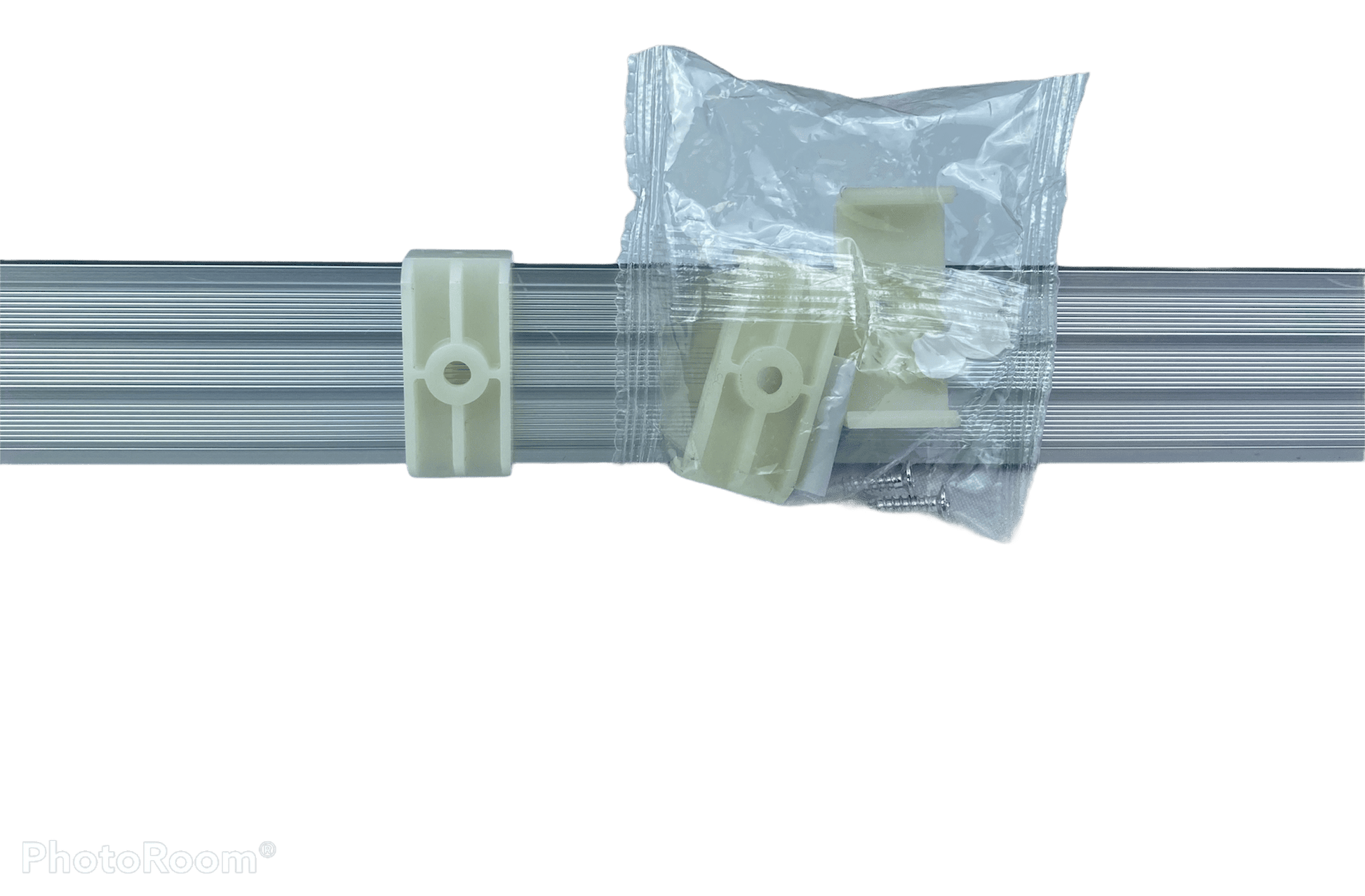

-W/Nylon Mounting Hardware
-Direct Wire Cord (Whip)
-Linking Plug for Daisy Chaining up to 3 Units (1-6.5 Foot Linking Cords Available, and -3-Prong Cords in our lighting accessories section)
-Socket Cap
-Certification: UL Listed
-Industrial/Commercial Grade
-Interlinking for continuous runs of up to 3 units
-85+ CRI
-Instant Start In Cold Conditions
-No Flicker or Hum
-Aluminum/Polycarbonate Construction
-12 Year Warranty

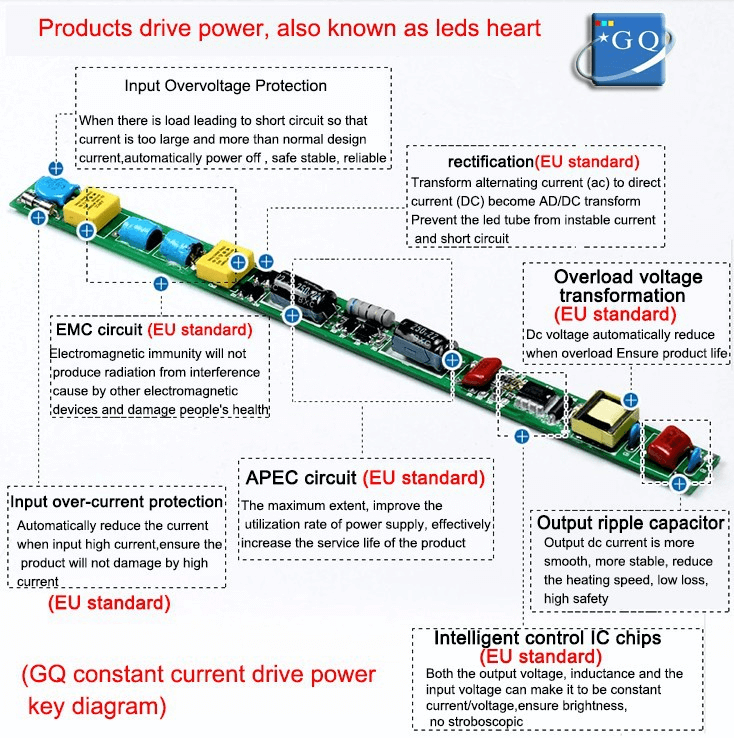

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

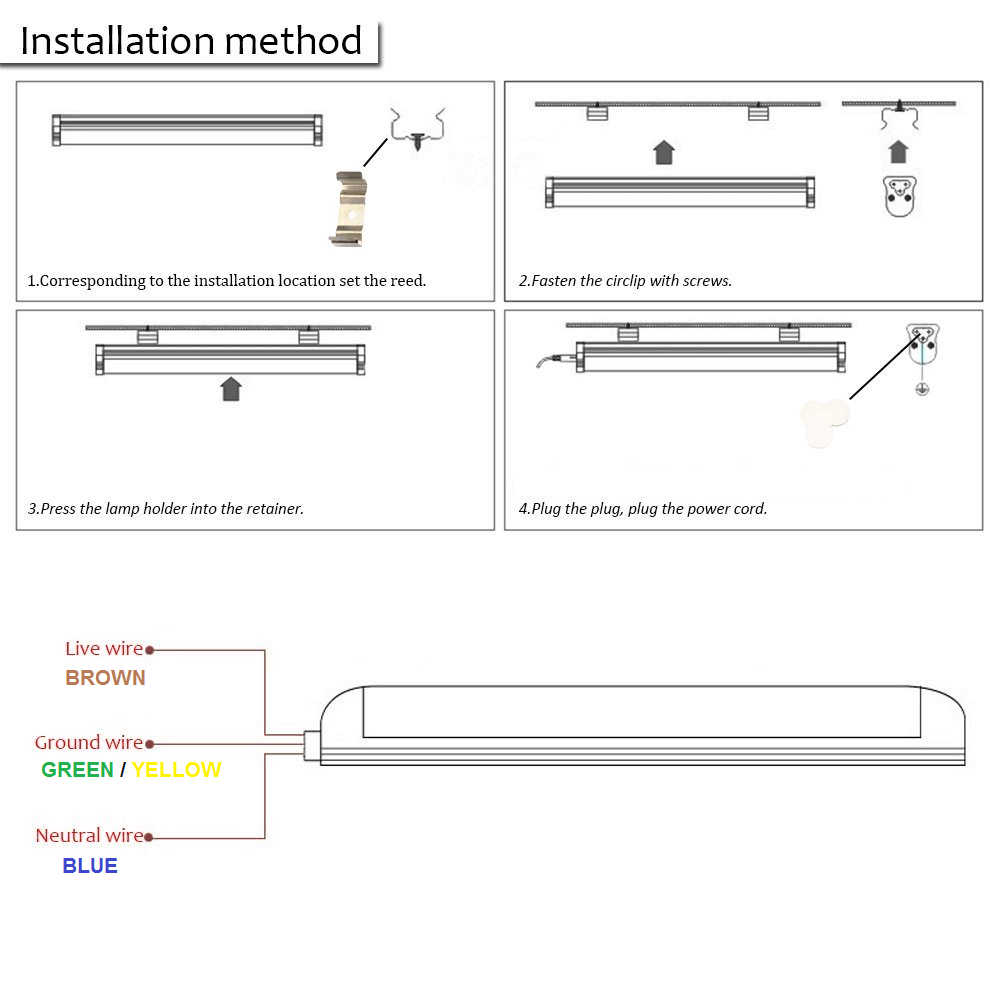

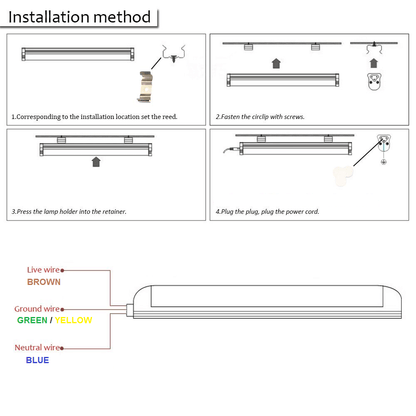

WIRE COLOR CODE FOR INSTALLATION
