5 Foot 48 Watt Linkable V-Series CLEAR LENS 7,296 Lumens – Omni-Ray Lighting, Inc.


5 Foot 48 Watt Linkable V-Series CLEAR LENS 7,296 Lumens

Regular price

As Low As: $20.08
$20.08

SPECIFICATION SHEET


5' Link-able Cooler Replacement Lamp

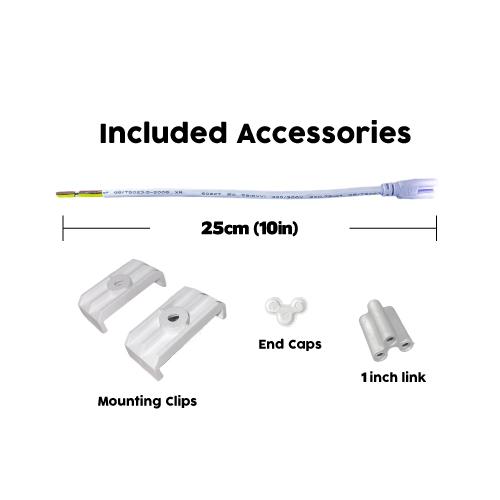

This product mounts easily on the center rail between reach-in cooler doors, and can be daisy chained using our link cord accessory up to 5 units, making a quick and painless installation -

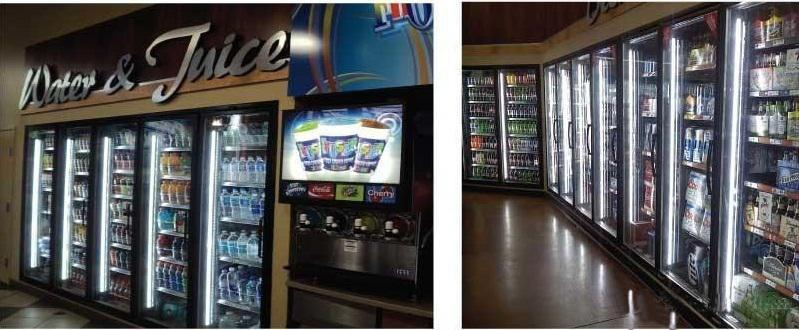

2 rows of LED's mounted on a 270° V-Pattern, so when mounted on the door rail of reach-in coolers in place of fluorescent lamps, the light will throw to the left and right to light the product much better than fluorescent systems, at a much lower energy cost.

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

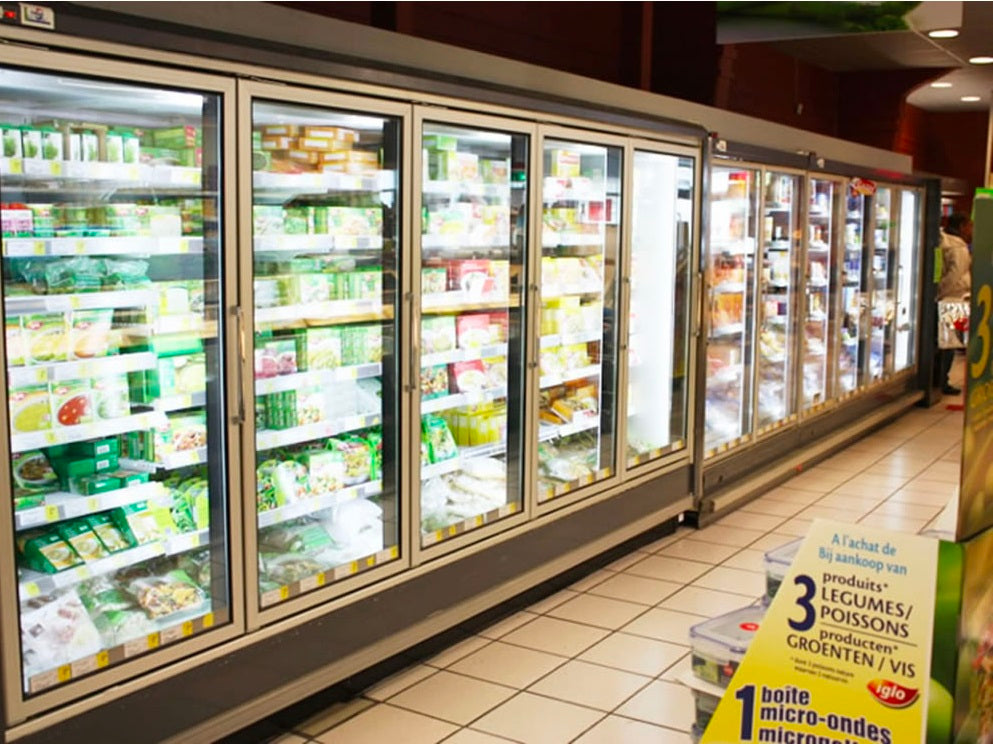

- Looks and performs as a high end, Commercial/Industrial LED product should.  Use in Reach-In Coolers, work shops, utility sheds, utility and laundry rooms, etc.

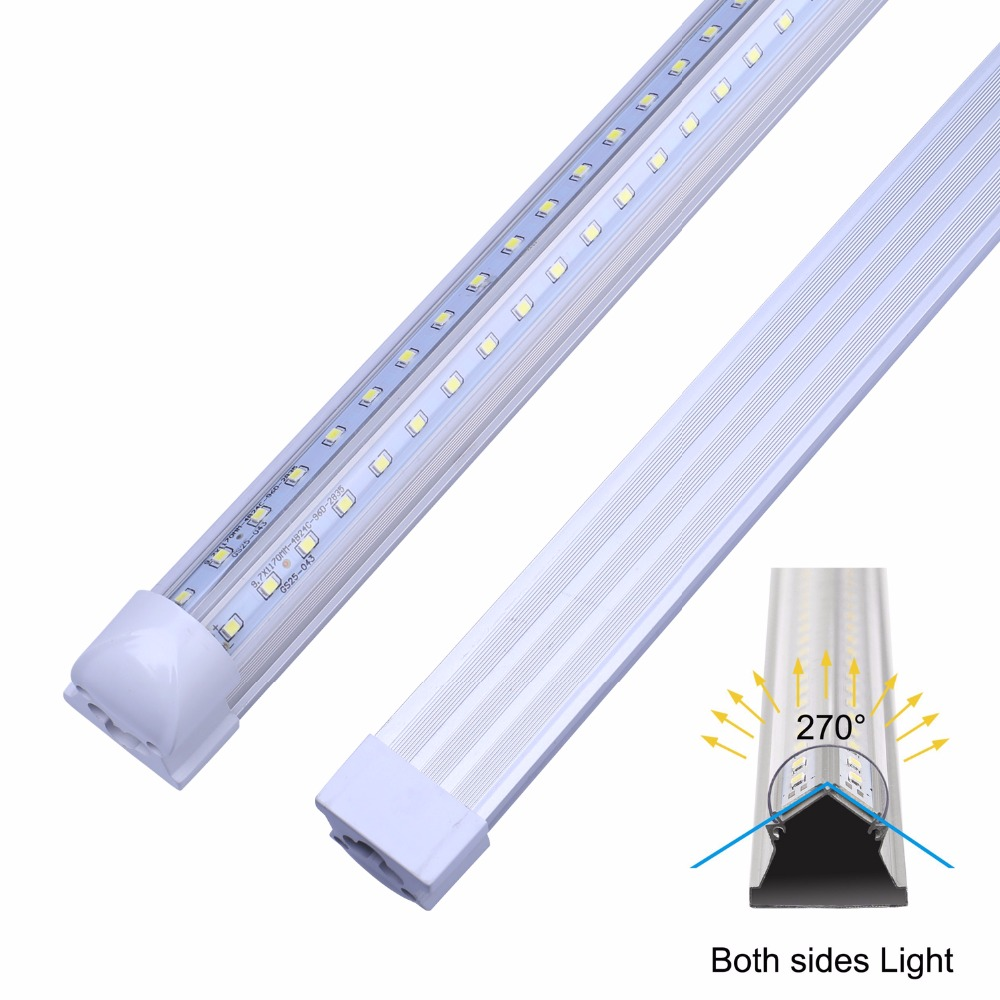

- Our Dual-Row V-Series lights provide excellent 270 degree Lumen Projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems.

Specifications:
T8 5 Foot Linkable
48 Watt
Cree LED's
7,296 Lumens Clear Cover
CLEAR COVER
85-277V Driver
152 Lumens Per Watt - High Efficacy System with Superior Driver Technology
5500-6000K White is standard, other Kelvin may be available by special order
Certification: UL CE FCC
Industrial/Commercial Grade
150 watt Fluorescent Equivalent
85+ CRI
Instant Start In Cold Conditions
No Flicker or Hum
Aluminum/Polycarbonate Construction
12 Year Warranty based on LM79 Rated 80,000 Hours

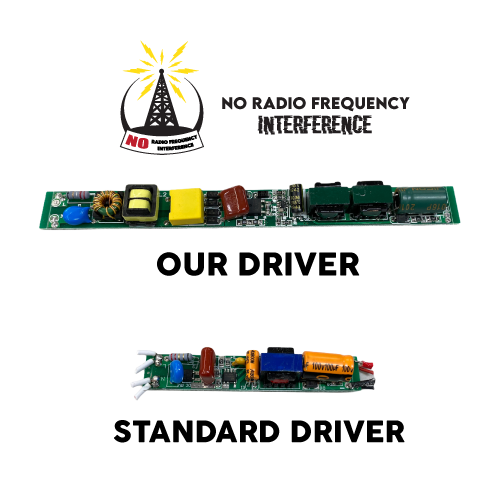

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

WIRE COLOR CODE FOR INSTALLATION
