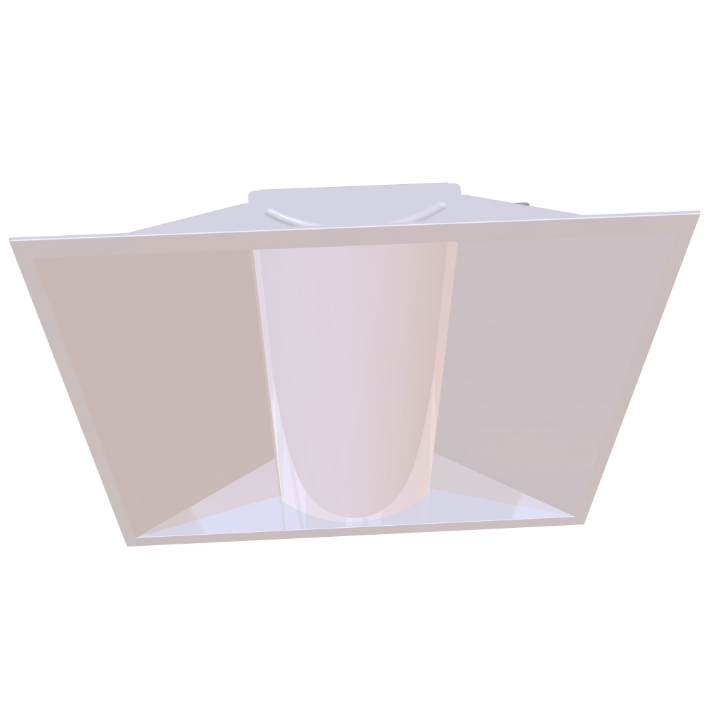

LED Center Basket Troffer Light Retro-Fit Kit 2'x2' (2 Pack) 36w 5000K Dimmable DLC Listed

LED Center Basket Troffer Light Retro-Fit Kit 2'x2' (2 Pack) 36w 5000K Dimmable DLC Listed

Regular price $59.95 USD
Regular price $149.00 USD Sale price $59.95 USD
Sale Sold out
QUANTITY

 All Pricing Includes Shipping

4'x4' Retro-Fit Kit 50 Watt LED Center Basket Troffer Light (2 Pack) 5000K / Dimmable DLC Listed - 12 Year Warranty

LIMITED QUANTITY

- Quick Installation for each retrofit kit which only takes five minutes.

- 0-10V dimmable function helps to reduce operation cost.

- 135 lumens per watt help to reduce pay back period of energy savings.

- 50,000 hours working time and 5 years warranty.

 DESCRIPTION

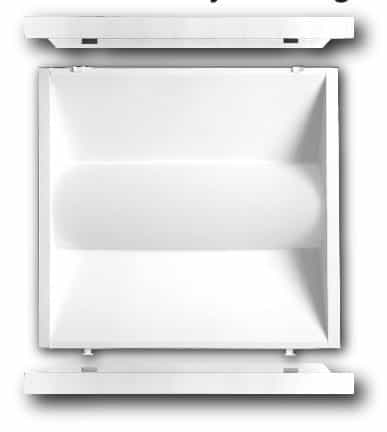

Our Retro-Fit Kit features a popular CENTER BASKET TROFFER design used to retrofit existing 2×2 fluorescent Troffer light fixtures.  Using the existing "Can" of the fluorescent troffer, saving time and disposal of the old fixture, you simply remove the existing diffuser panel, and install the new hinged center basket panel, using the provided hardware.  Huge time saver, and you have a new dimmable LED fixture -

SPECIFICATION SHEET

Basic Data:

Case Qty: 2 Troffer/Case
Power consumption: 36 watts 4,860 Lumens
Led number: 264 pieces of SMD 2835
Dimension(mm): 603mm*603mm Thickness: 8-11mm
Lifespan: 50,000 hours
PC cover: Frosted
Power Factor: More than 99
Certificates: cUL, UL, TUV
Can be dimmable

Optical Parameters:
Luminous efficiency: more than 130 lm/w
Luminaire efficiency: 92%
Color Temperature
Cool White: 5000K 5200 lumens

Electronical Parameters:
Input Voltage: AC100-277V/AC100-382V
Frequency: 50-60Hz
Power Supply Efficiency: 92%
PFC: >0.99

Other Parameters:
1) Operating Temperature: -20-50℃
2) Stock Temperature: -20-70℃

4) PF>0.99 Class 2 Driver. Meanwell driver
5) UL Code: E358902 UL standard:UL1598, UL8750 and CSA C22.2 No.250-0.08 LUMINAIRES

WARRANTY STATEMENT
