Name: Fa8 Single Pin T8 LED 8ft 144w 17,654 Lumen FROSTED LENS (NO RF) Quad-Row
Brand: Omni-Ray Lighting
Price: 154.0 USD
Availability: InStock

SHIPPING INCLUDED

PRODUCT VIDEO

SPECIFICATION SHEET

NO RF DRIVER EMI TEST REPORT

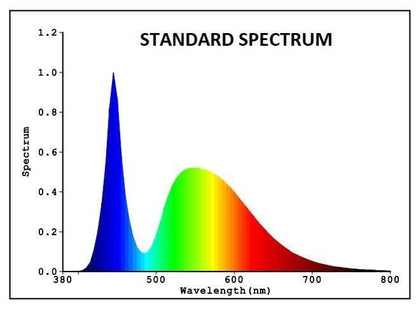

Our replacement lights have our proprietary NO RF driver system delivering 24vDC to the Cree SMD's to create a very high 90CRI to create a very white light output. So very comparable to a standard 70CRI 5000K (Cold) type output, but much better for your eyes without the blue hue - These are ballast by-pass using a 100-277vAC internal driver - Our most popular models are the 8ft 72w V-Series Clear Lens model at 10,944 lumen output, the brightest lamp on the market is our 8ft 144w V-Series Clear Lens model at 21,888 lumens, and the Frosted Lens 144w model at 17,654 lumens

This is our newest High Output Retrofit Series product. This model features a Quad-Row LED configuration using 144 watts for and astounding 17,654 lumens of throw at 170 degrees.

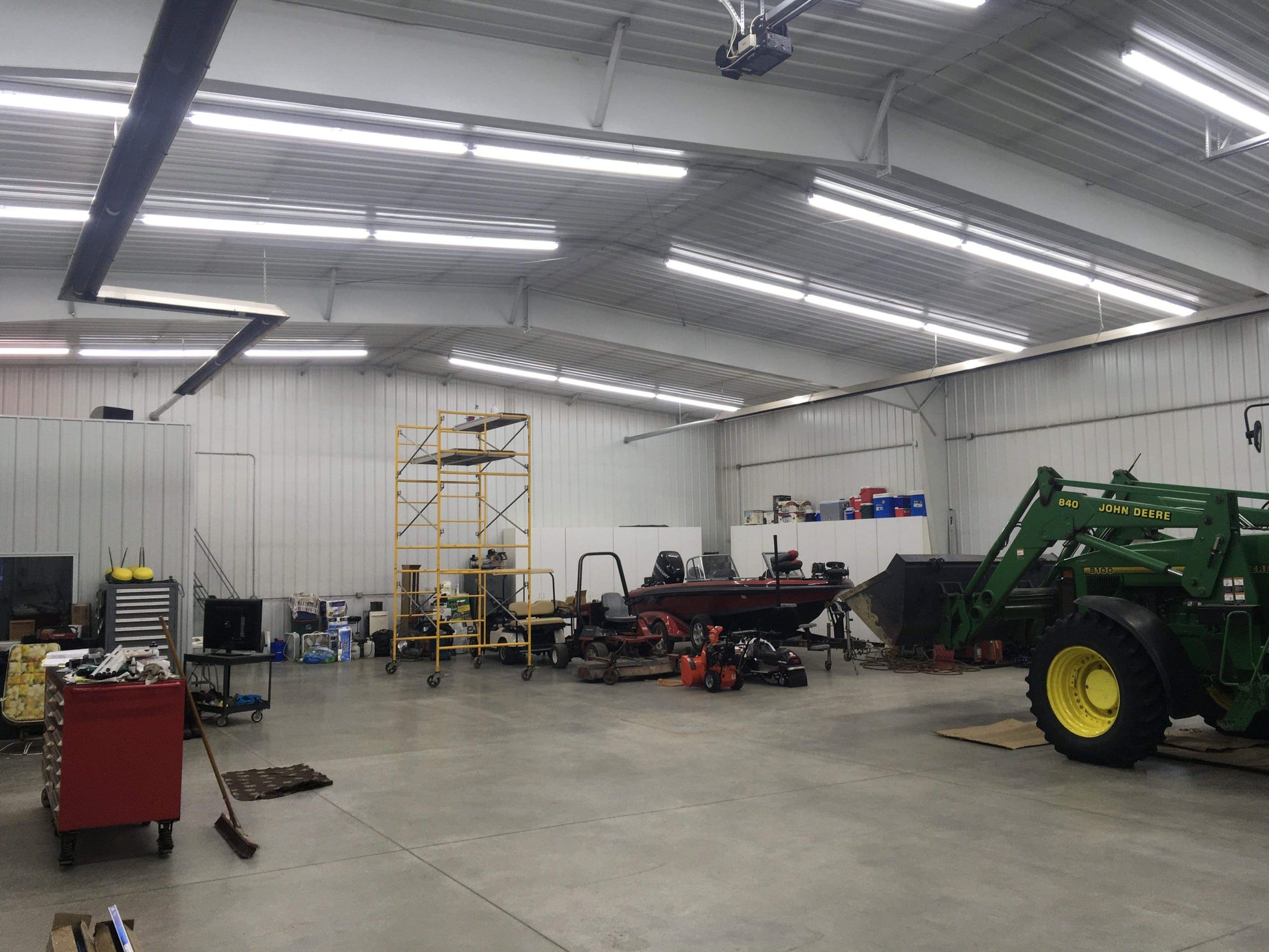

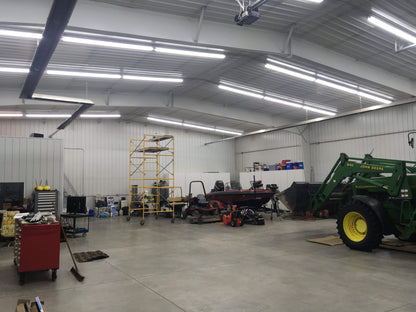

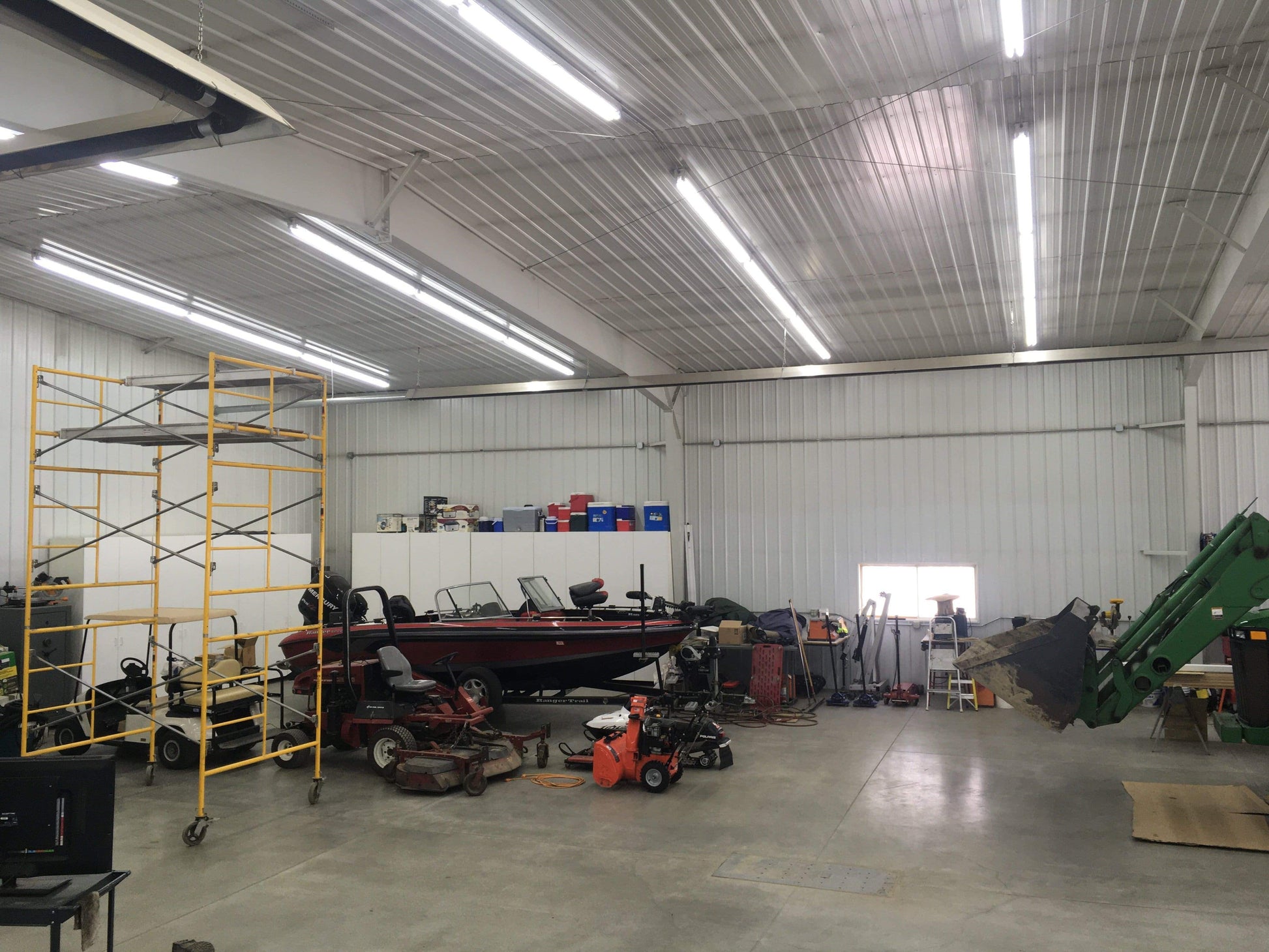

Great for 14-18' ceilings or where you want a LOT of light

- - These lights are very bright and are not recommended for low mounting heights

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

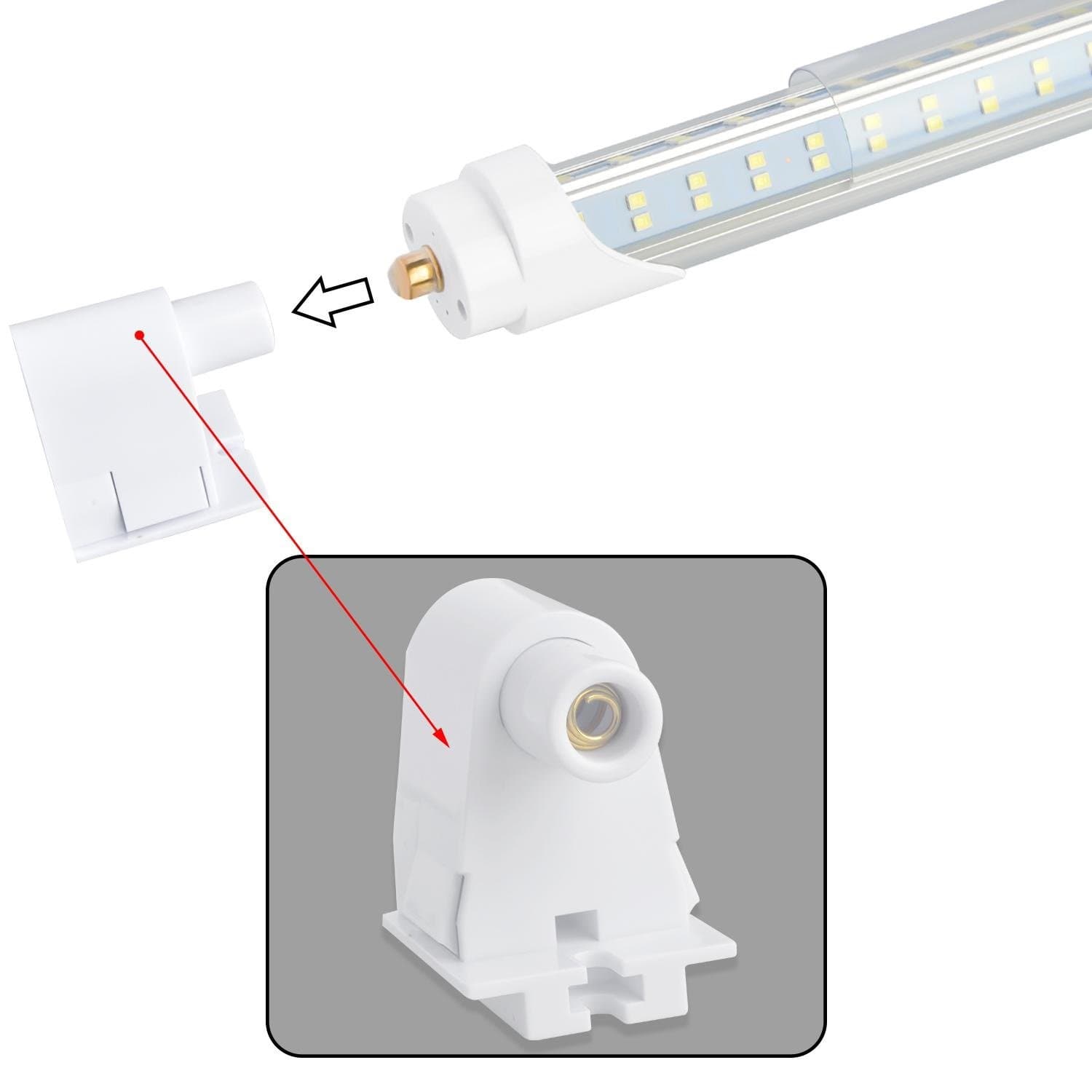

- The New innovative design includes Fa8 Single Pin Mount and Quad-Row 170 Degree Projection. Looks and performs as a high end, Commercial/Industrial LED product should. Use in work shops, utility sheds, utility and laundry rooms, etc.

- Our Quad-Row Series lights provide excellent lumen projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems using multiple lamps.

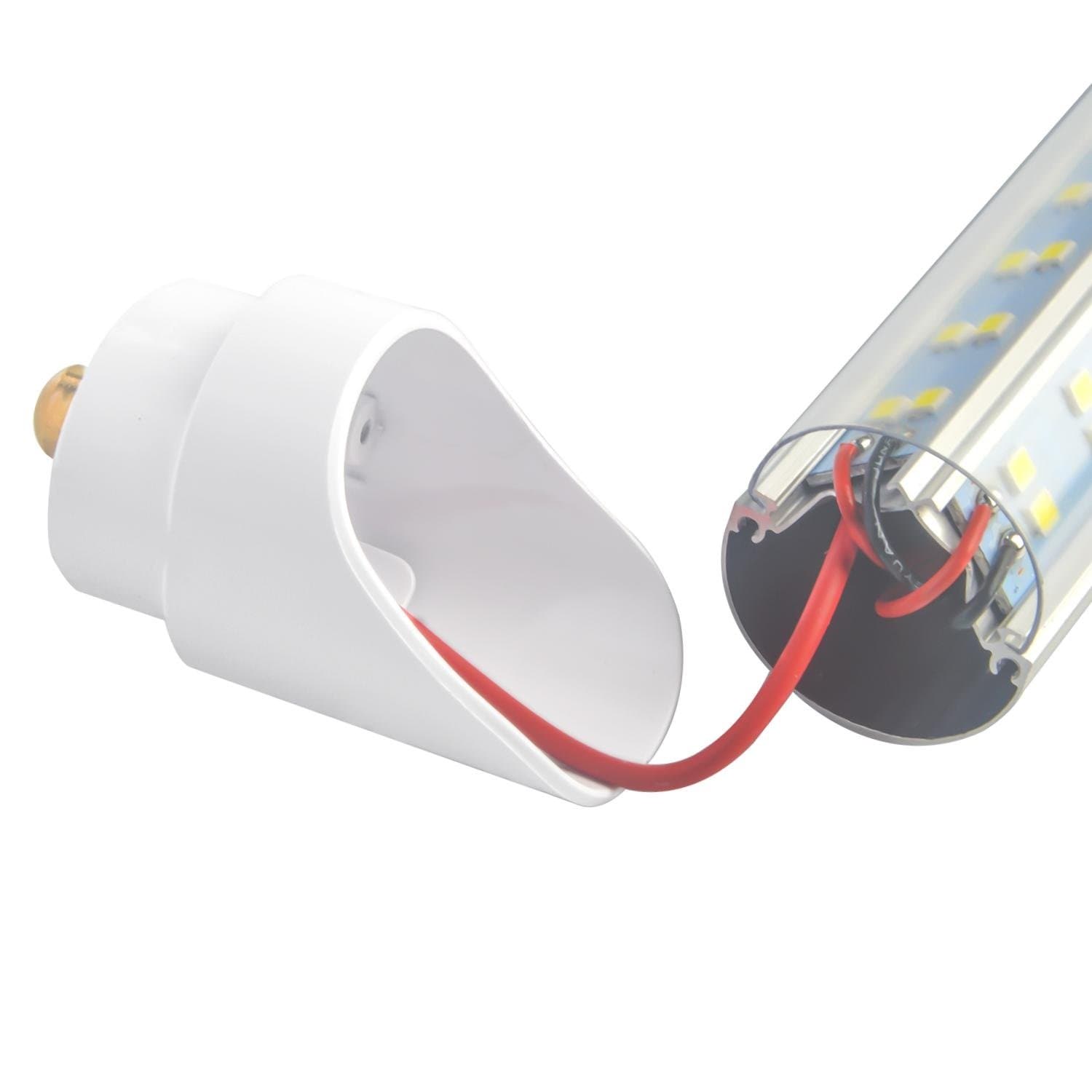

- Easy to install, offering Fa8 Single Pin, AC Direct Wire Ballast By-Pass Installation.

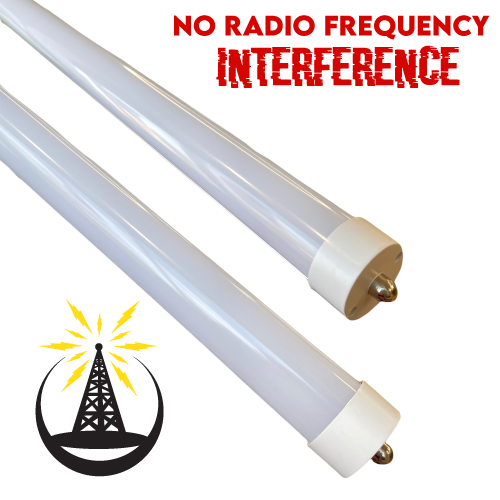

NO RF SERIES -- This product has a RF filtering system within the driver in each unit. RF interference is a fairly common problem in high output linear lighting, due to "RF Noise" in the AC line feeding the light. This problem creates "static" in radio reception as well as garage opener remote control performance issue.

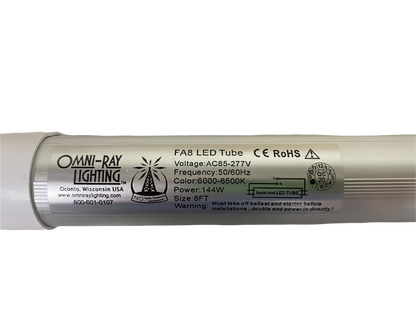

Specifications:
- T8 8' Fa8 Single Pin
- 144 Watt
- Cree LED's
- 17,654 Lumens FROSTED LENS
- CLEAR COVER
- 85-265V Grounded Driver
- 122 Lumens Per Watt - High Efficacy System with Superior Driver Technology
- 5500-6000K White is standard, other Kelvin may be available by special order
- Certification: UL Listed
- Industrial/Commercial Grade
- Interlinking for continuous runs of up to 3 units
- 85+ CRI
- Instant Start In Cold Conditions
- No Flicker or Hum
- Aluminum/Polycarbonate Construction
- 12 Year Simple Exchange Warranty based on LM79 Rated 80,000 Hours
