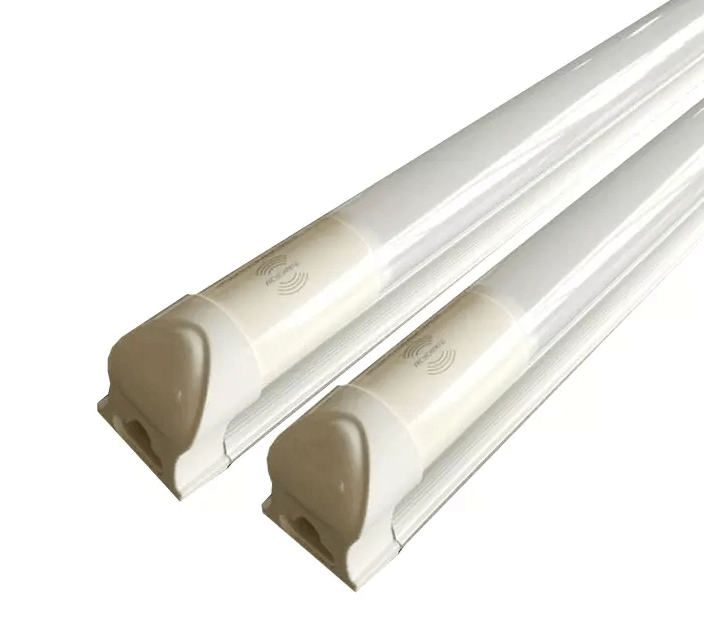

Linkable LED T8 PIR Motion Sensor w/Mounting Hardware

Regular price $49.33

PRODUCT VIDEO

SHIPPING INCLUDED

 ACCESSORIES AVAILABLE

We recommend 8 or more Lumens Per Cubic Foot for efficient lighting.

Length x Width x Height x 8 = Minimum recommended Lumens

** Divide that total lumen by the lamp of your choice lumen output, and this will give you your lamp count needed for that product in your area +-5%

EXAMPLE: 40'W x 60'L x 12'H = 28,800 cu. ft. x 8 = 230,400 Divided by (72w 8' V-Series 10,944 lumens) 21.05 lamps - Our contractors typically use 3 rows of 7 in this space running one down the center, and the 2 outside rows 8' off the side walls.

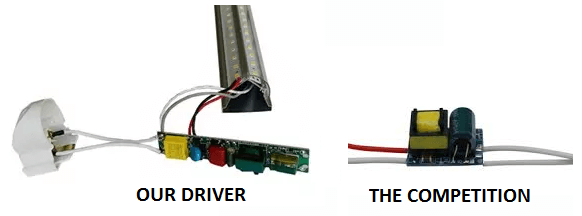

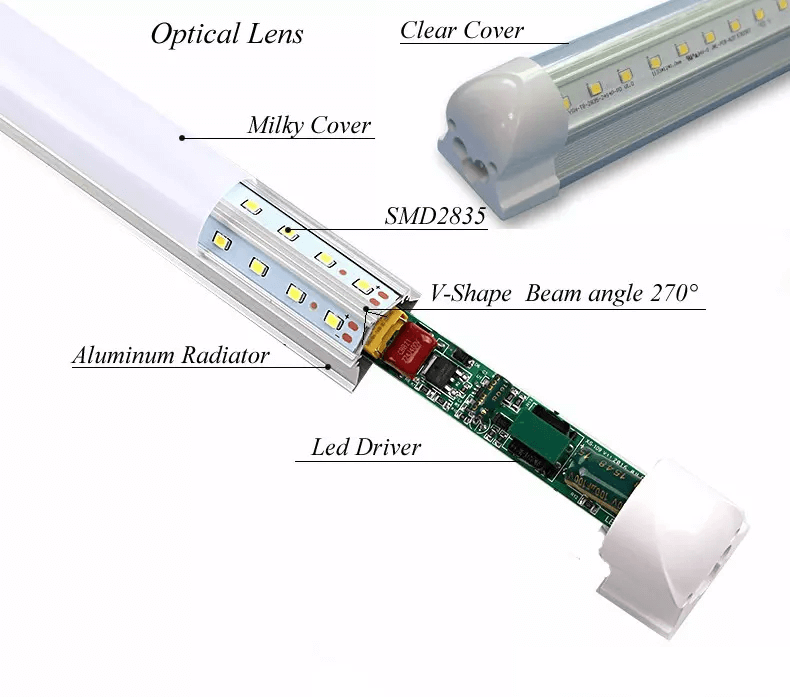

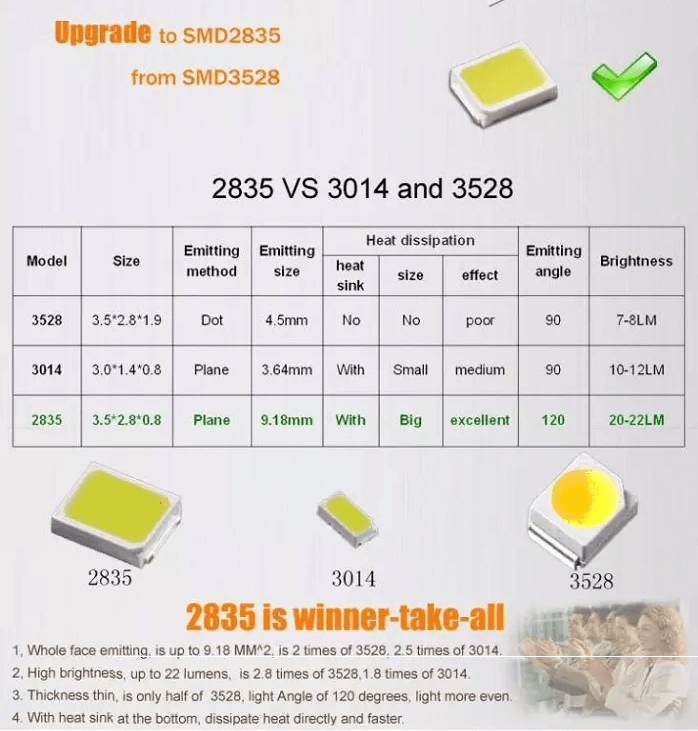

 We have just re-engineered our driver in combination with Cree 2835 SMD LED's to make this 4' lamp one of the highest Lumen in the industry at 120 lm/w  Projected Lumens in a FROSTED Lens.

Great for 7-10' ceilings

 - - These lights are bright, using a fraction of the wattage that low end LED products use.

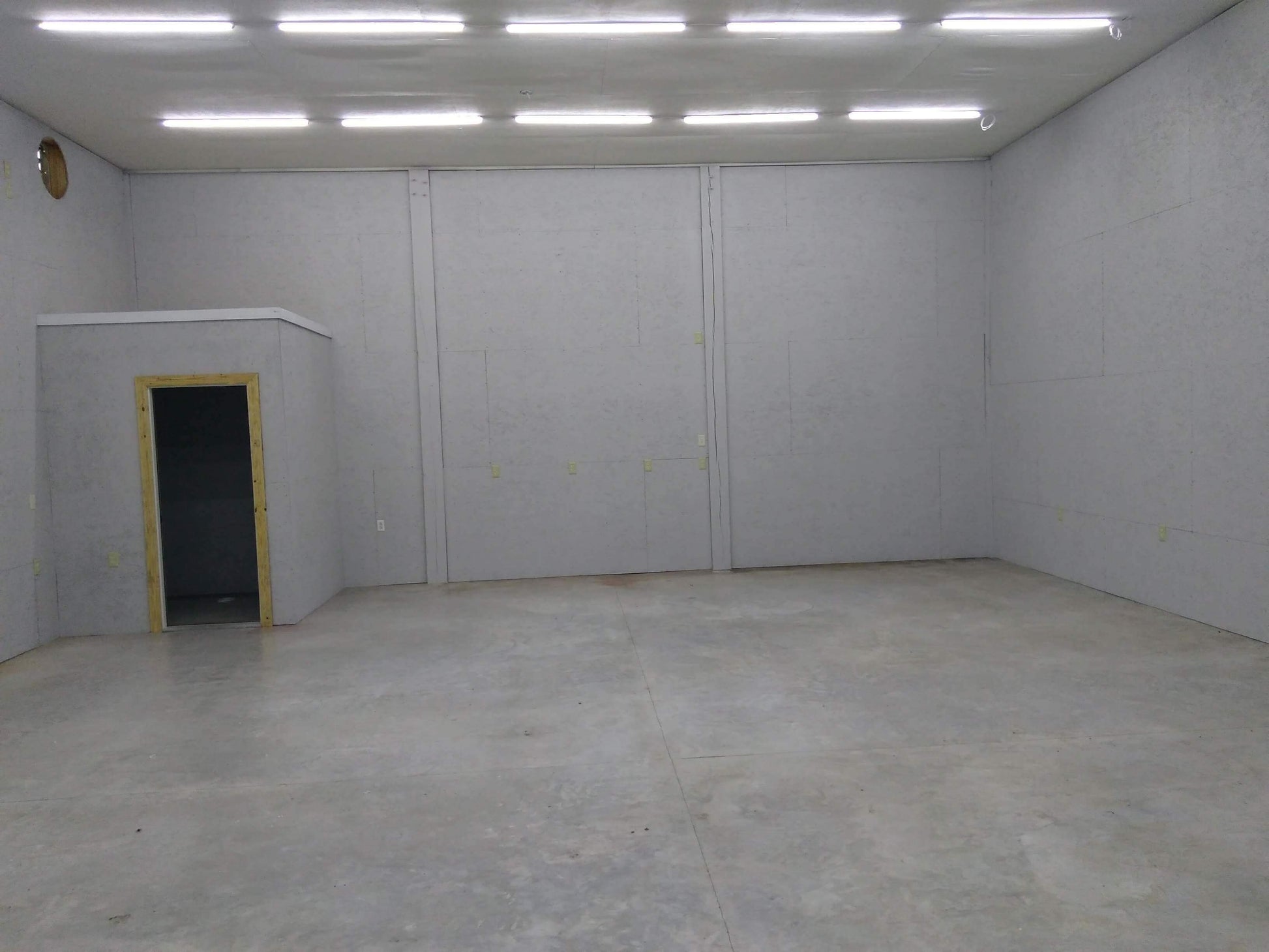

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

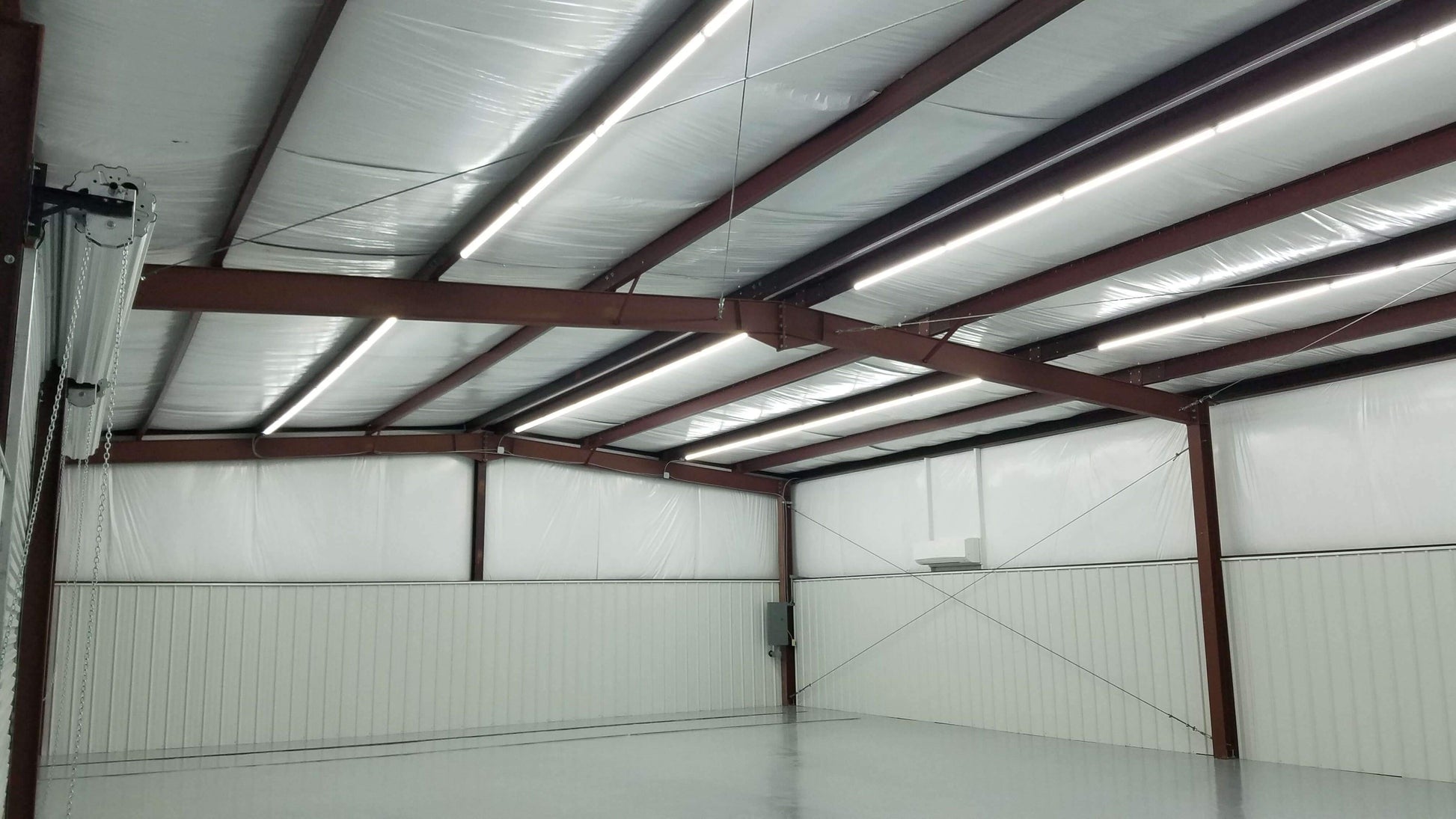

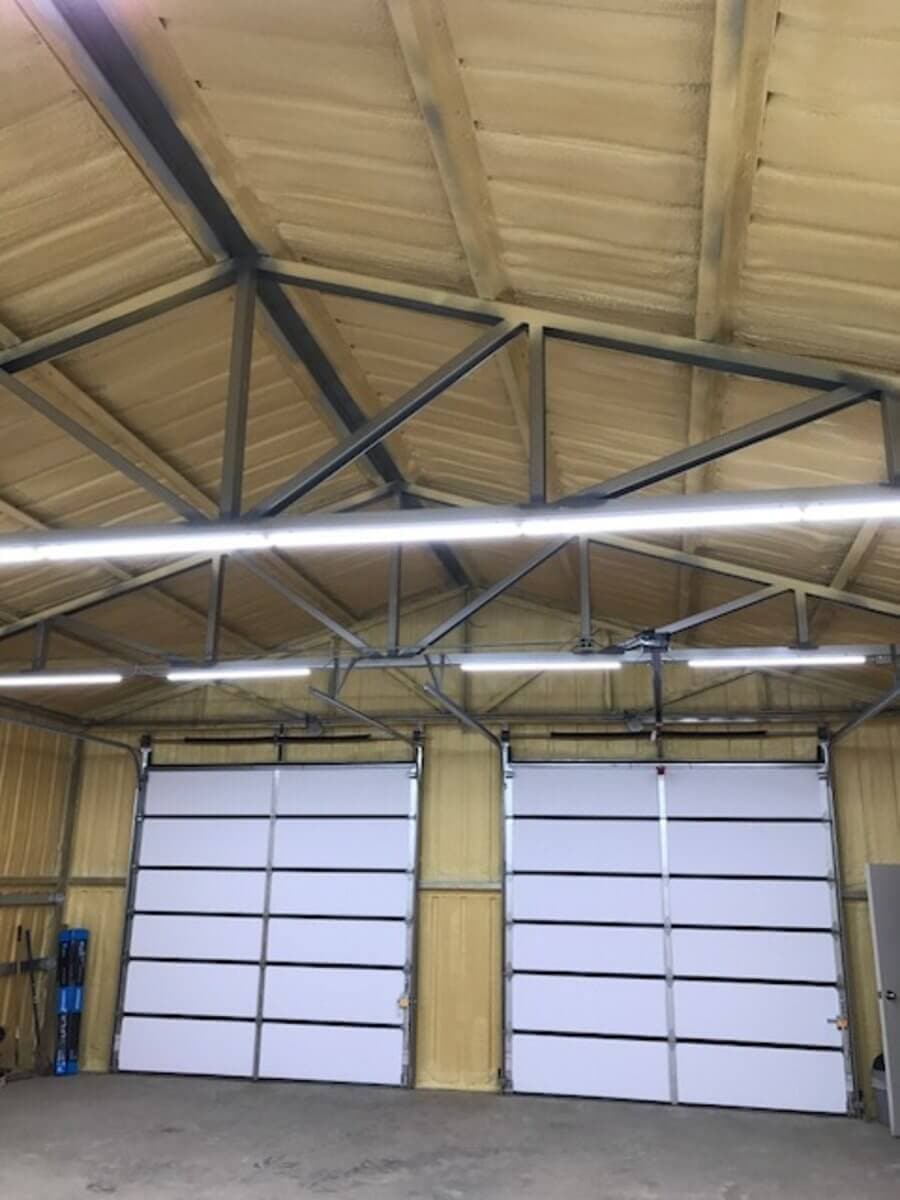

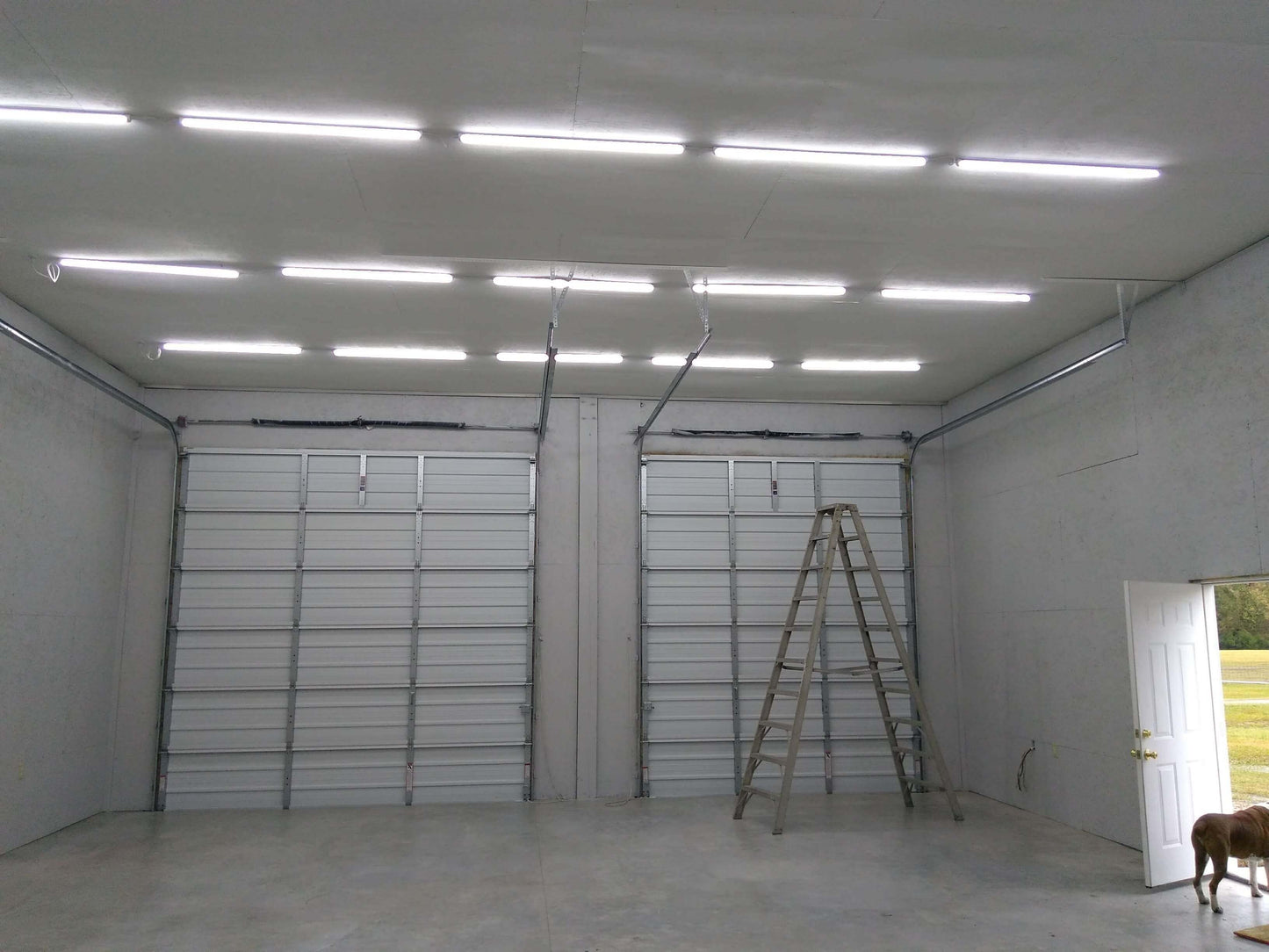

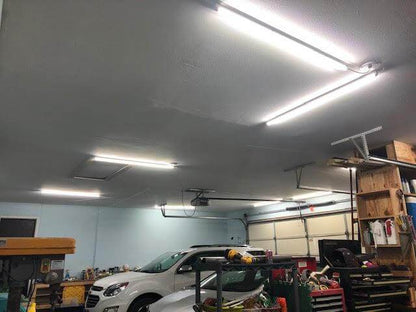

- The New innovative design includes Stainless Steel Mounting Hardware120 Degree Projection.  Looks and performs as a high end, Commercial/Industrial LED product should.  Use in work shops, utility sheds, utility and laundry rooms, etc.

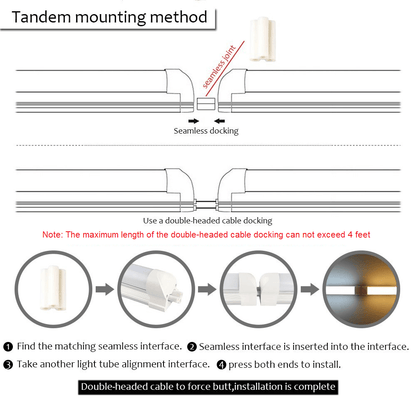

- Easy to install, offering end to end, continuous run installation, up to 6 in the run.

Specifications:

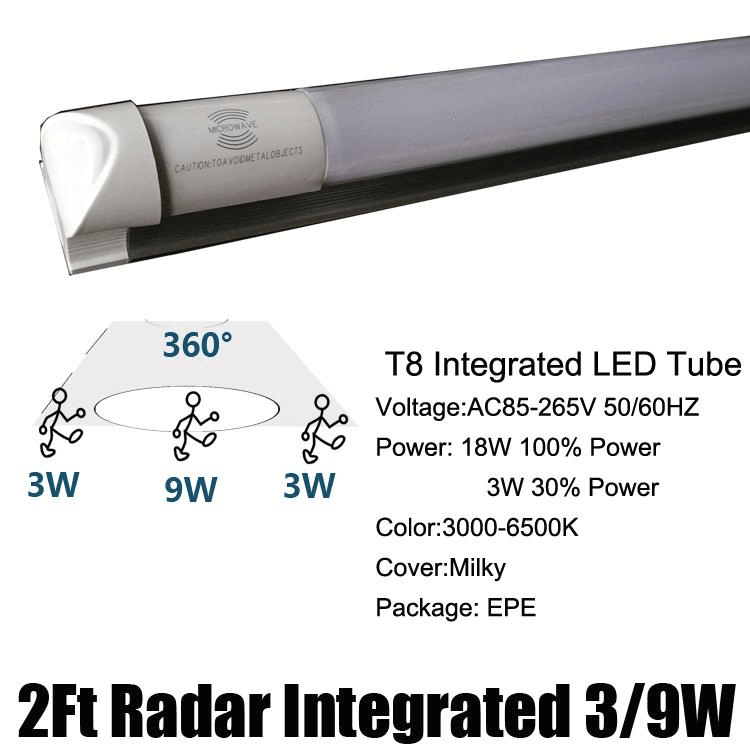

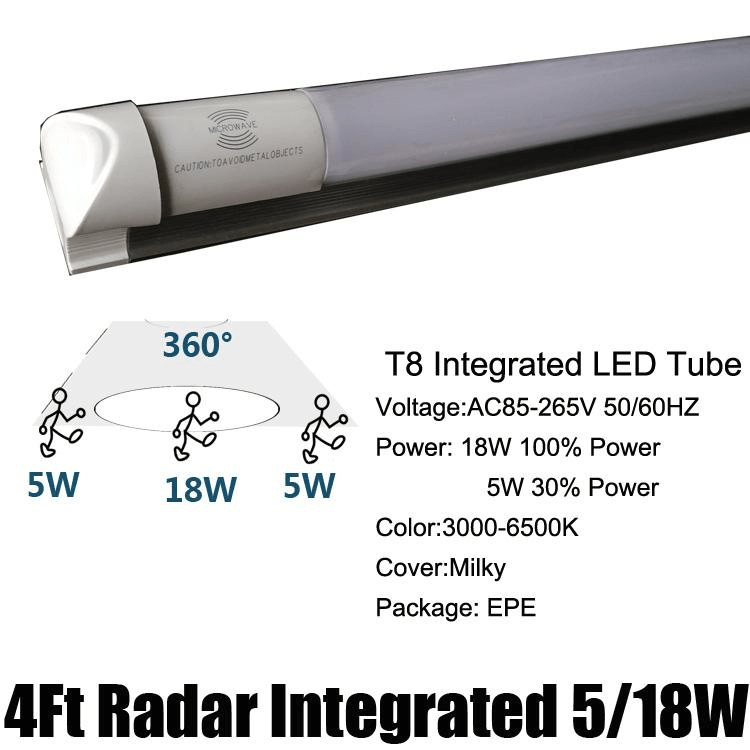

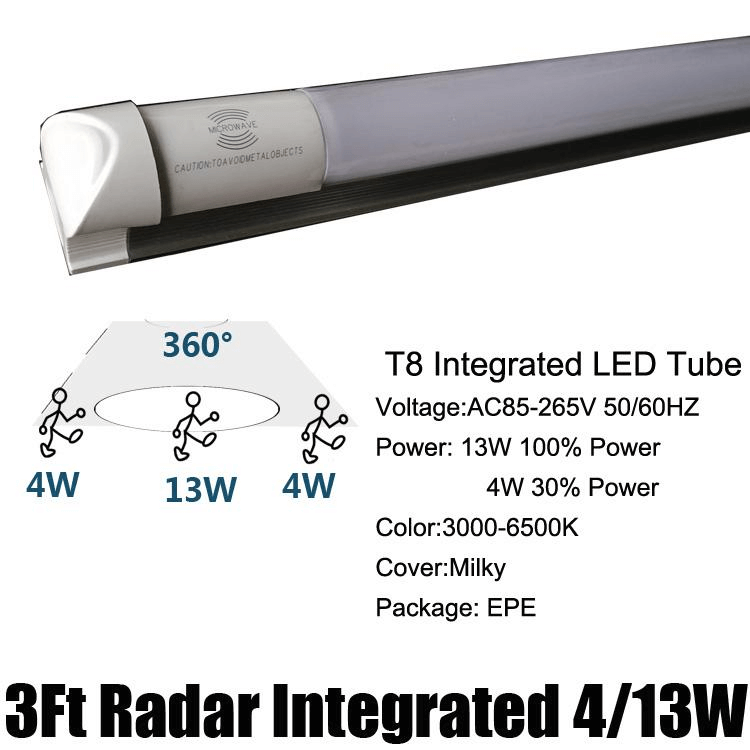

T8   2', 3', 4' Models
2' (9w)  3' (13w)  4' (18w)
Cree LED's
FROSTED LENS
85-265V Grounded Driver
120 Lumens Per Watt - High Efficacy System with Superior Driver Technology
4000-4500K White is standard, other Kelvin available by special order

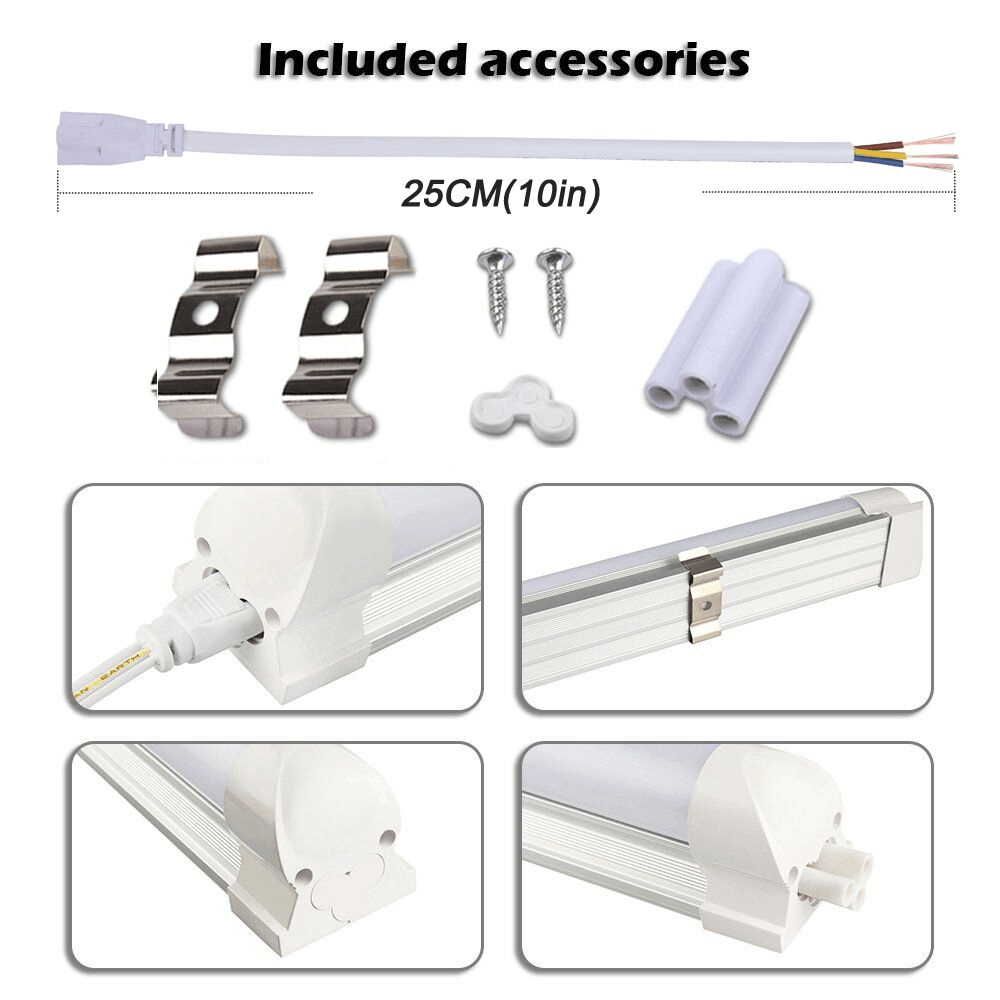

W/Stainless Steel Mounting Hardware
Direct Wire Cord (Whip)

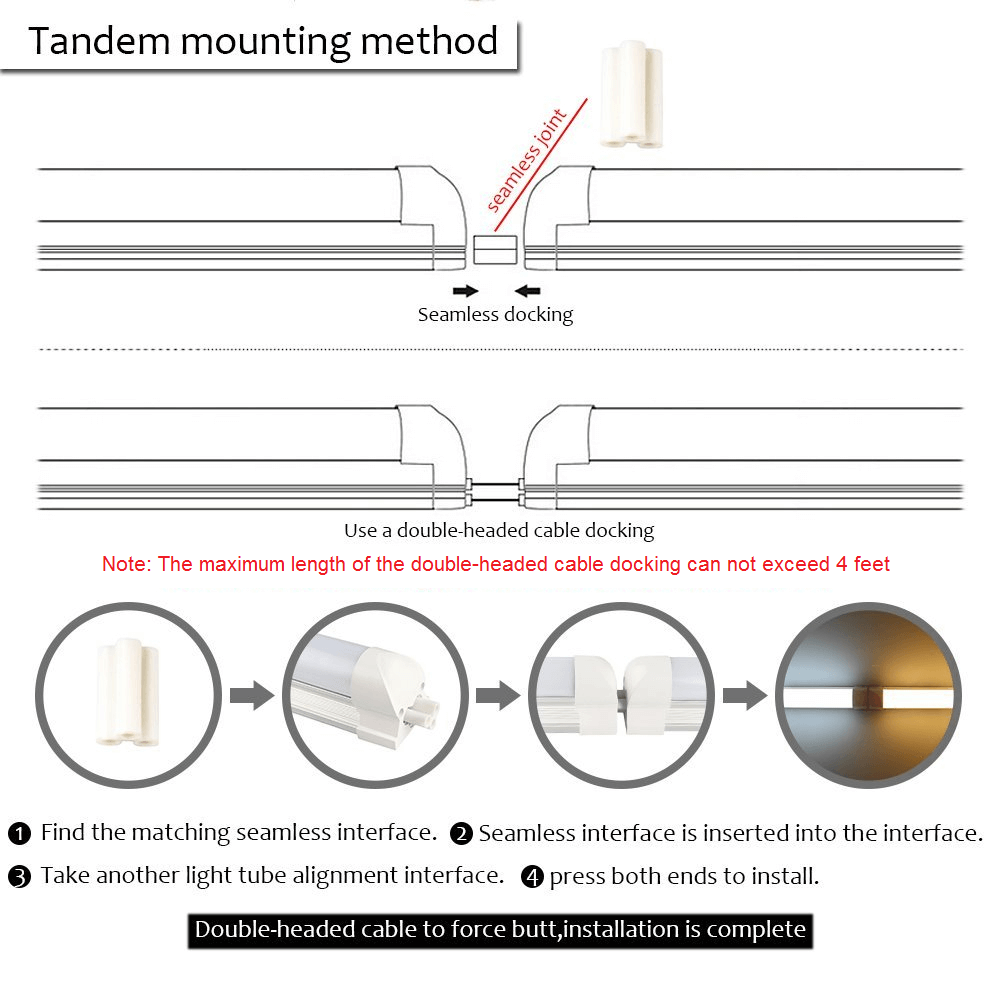

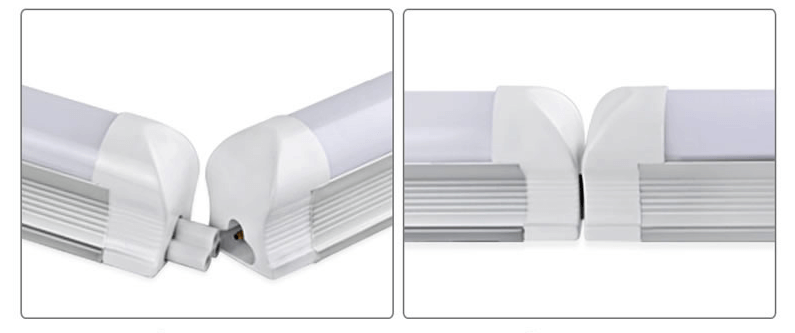

Linking Plug for Daisy Chaining up to 6 Units (1-5 Foot Linking Cords Available, and 3-Prong Cords in our lighting accessories section)
Socket Cap
Certification: UL cUL FCC VDE GS CE SAA RoHS CQC PSE LVD EMC
Industrial/Commercial Grade
85+ CRI
Instant Start In Cold Conditions
No Flicker or Hum
Aluminum/Polycarbonate Construction
8 Year Simple Exchange Warranty based on LM79 Rated 80,000 Hours

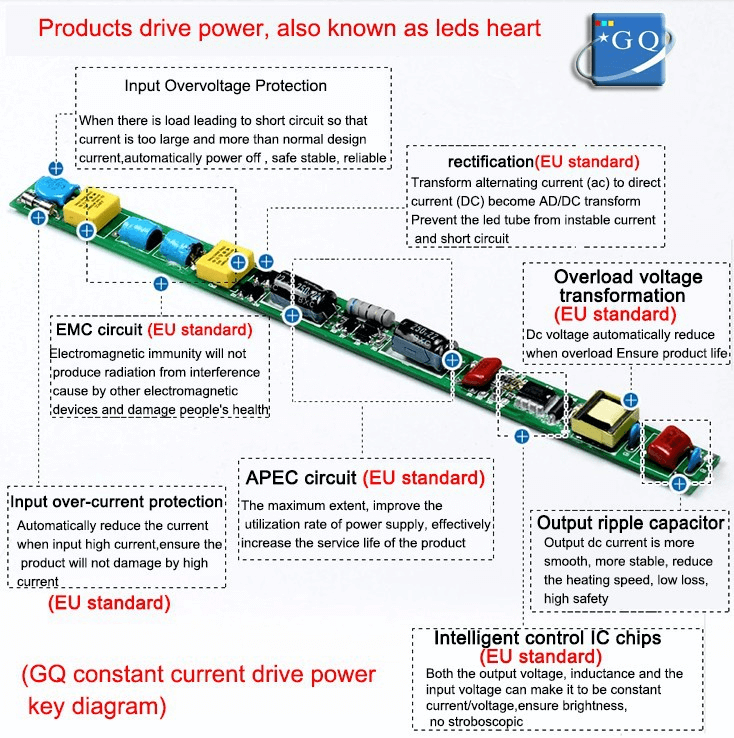

DRIVER SPECIFICATIONS

WARRANTY STATEMENT

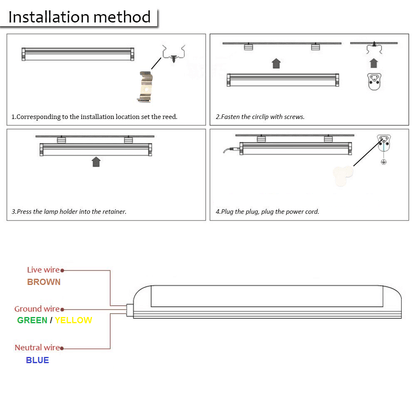

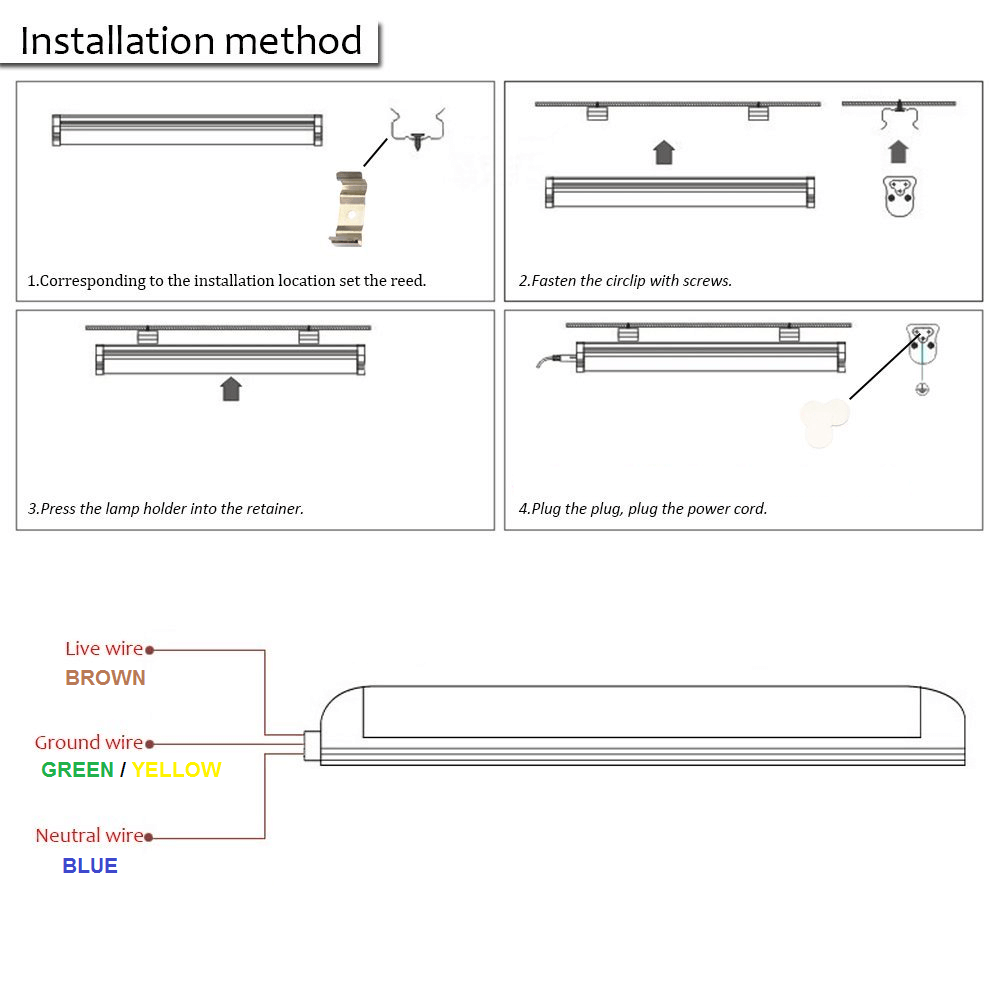

WIRE COLOR CODE FOR INSTALLATION
