6 Foot 56 Watt Linkable V-Series CLEAR LENS 8,512 Lumens

Regular price

As Low As: $19.12
$19.12

SPECIFICATION SHEET

NEW !!

 6' Link-able Cooler Replacement Lamp

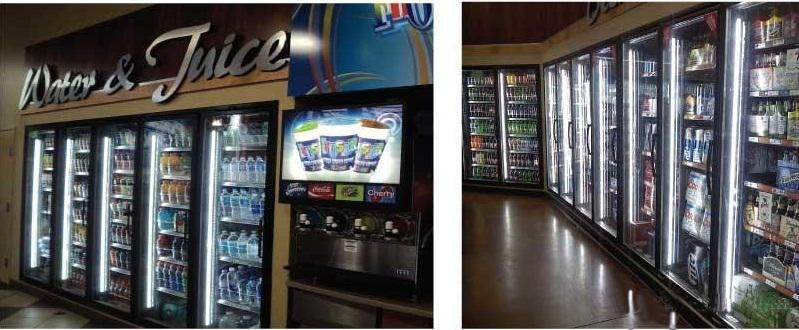

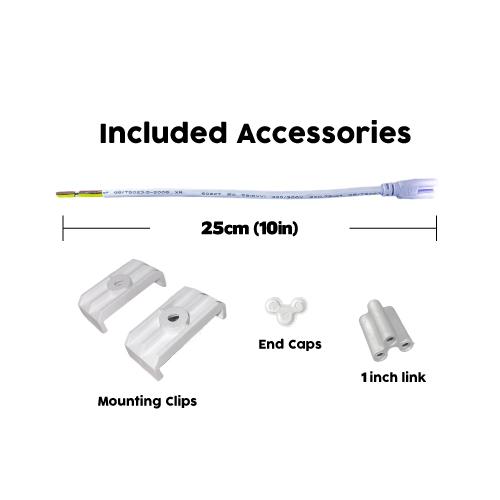

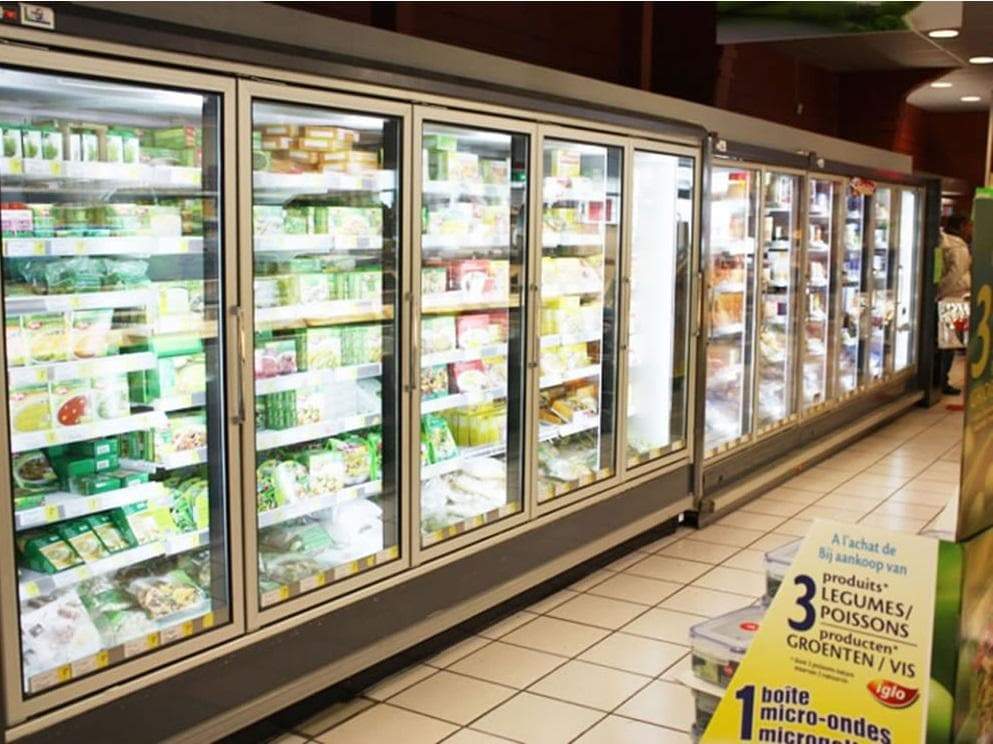

This product mounts easily on the center rail between reach-in cooler doors, and can be daisy chained using our link cord accessory up to 4 units, making a quick and painless installation -

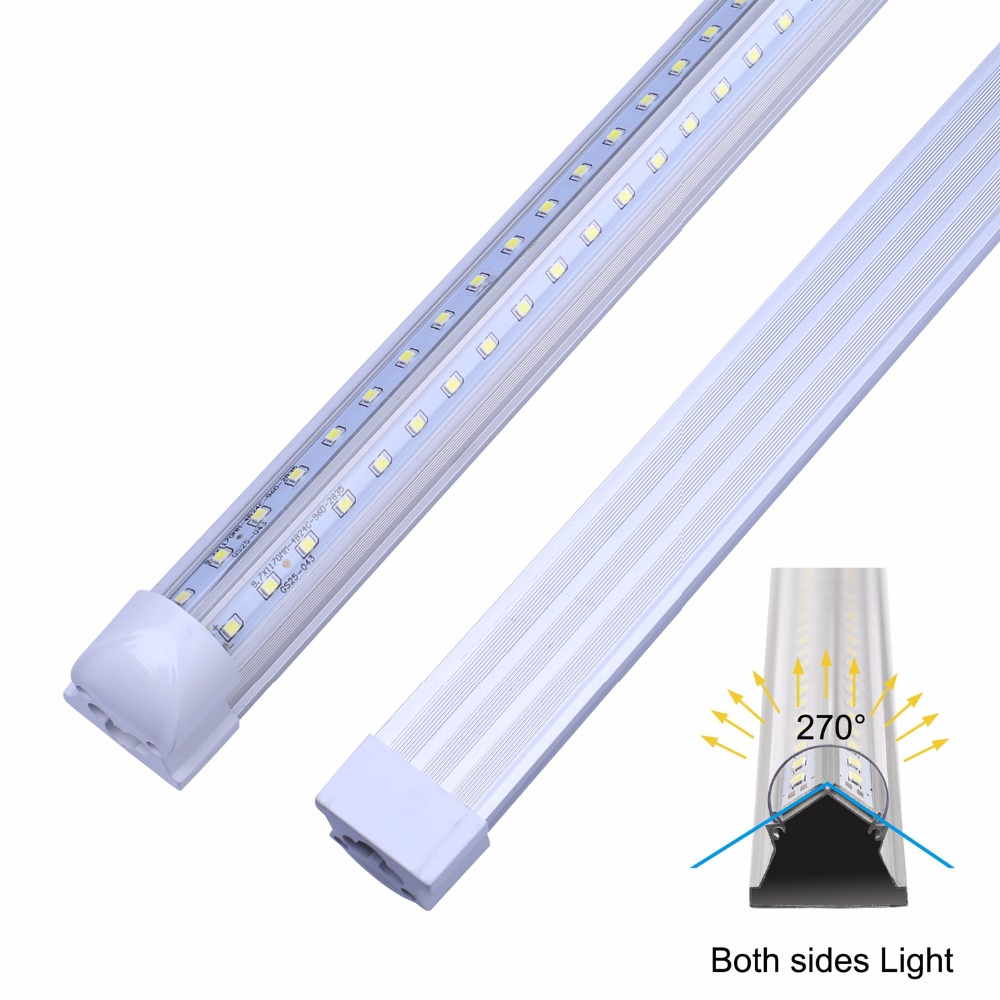

2 rows of LED's mounted on a 270° V-Pattern, so when mounted on the door rail of reach-in coolers in place of fluorescent lamps, the light will throw to the left and right to light the product much better than fluorescent systems, at a much lower energy cost.

- Instant On in cold conditions, like coolers, meat prep, garages, pole barns, etc.

- Looks and performs as a high end, Commercial/Industrial LED product should.  Use in Reach-In Coolers, work shops, utility sheds, utility and laundry rooms, etc.

- Our Dual-Row V-Series lights provide excellent 270 degree Lumen Projection, using few watts, and are designed to replace inefficient High Output fluorescent/magnetic ballast systems.

Specifications:
T8 6 Foot Link-able Integrated Lamp
56 Watt
Cree LED's
8,512 Lumens Clear Cover
CLEAR COVER

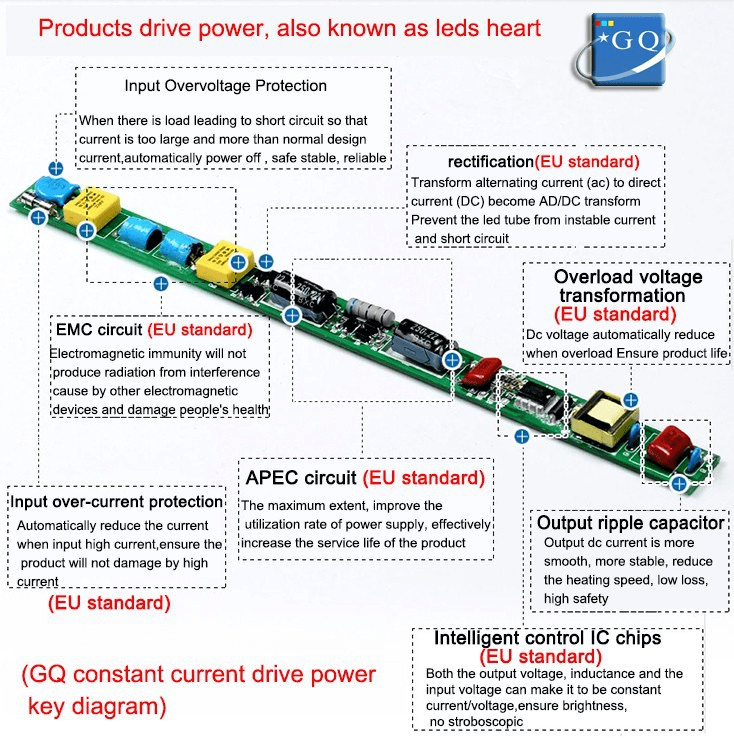

85-277V Driver
152 Lumens Per Watt - High Efficacy System with Superior Driver Technology
5500-6000K White is standard, other Kelvin may be available by special order
Certification: UL CE FCC
Industrial/Commercial Grade
150 watt Fluorescent Equivalent
85+ CRI
Instant Start In Cold Conditions
No Flicker or Hum
Aluminum/Polycarbonate Construction
12 Year Warranty based on LM79 Rated 80,000 Hours



DRIVER SPECIFICATIONS

WARRANTY STATEMENT

WIRE COLOR CODE FOR INSTALLATION
