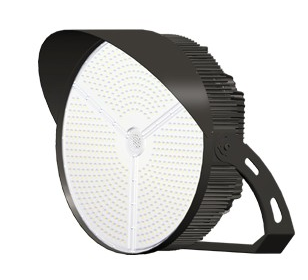

Stadium Sport Field LED Lighting 480w 66,280 Lumen (40°, 60°, 90°) (120-277VAC or 347-480VAC)

 SPECIFICATION SHEET

DESCRIPTION
By providing superior high output and high efficiency, sports light series,
is the ideal solution for outdoor sports lighting such as municipal, school and semi-professional outdoor sports lighting. Dynamic thermal management design maximizes heat dissipation and significantly improves the life of luminaires. Built-in surge suppression adds an extra layer of protection to the luminaire driver. Versatile mounting bracket for hassle-free installation.

LED High Mast Lighting 480W Advantages:

• Arrayed with high efficiency Seoul chips  to create super high lighting efficacy.

• The latest LED technology, cold forging heat-dissipation design to achieve long operating life.

• Equipped with Mean Well drivers to ensures the durability of the product.

• Energy saving 80%~85% to save a tremendous amount of money.

• 7-year warranty for 100-277V version, 5-year warranty for 347-480V version.

Wattage     480W

Luminous Flux   138LM/W

Input Voltage  100-277V or 347-480V (please select at tab)

Power Factor  >0.95

CRI   ≥70Ra, or ≥90Ra

Driver Brand   Meanwell

Light Distribution   40°, 60°, 90° (please select at tab)

Color Temp.  5000K (others KELVIN available by special order)

Dimming Options   0-10V dimming / Zigbee wireless dimming available

Zigbee Control   On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP).

Photocontrol     Twist-lock photocell available

SPD        20kV SPD standard (40kV optional)

IP Rating              IP68

Operating Temp.   -40°C- 40°C / -40°F - 104°F

Lifespan >50,000 Hrs LM79, LM80

Warranty 7-year warranty for 100-277V version, 5-year warranty for 347-480V version

Certificates         UL/CB/CE/ENEC/ROHS/PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC (pending)

CONSTRUCTION
● Sealed die-casting profile for outdoor applications
● Low profile, 3G vibration rated compact design minimizes wind load requirements.
● Housing is completely sealed against moisture and environmental contaminants (IP66).

OPTICS
● Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
