UFO High Bay Dip Switch Wattage Adjustable 240w-200w-150w 36,000 Lumens (OPTIONAL Fully Programable/Motion Sensor/Daylight Harvesting/Dimming)

 SPECIFICATION SHEET

DEMONSTRATION VIDEO

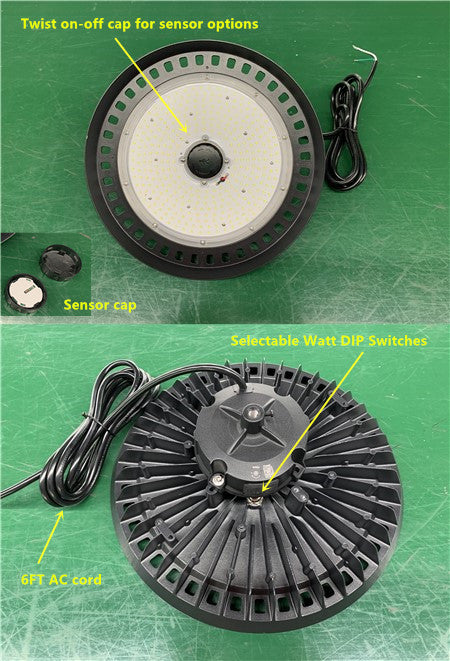

This is our newest UFO High Bay product offering our customers FULL WATTAGE ADJUSTABILITY from 10-240 watts at 150 Lumens Per Watt, with Manual Dip Switch Settings for wattage output adjustability 150w-200w-240w. OPTIONAL Microwave Motion Sensor/Remote Receiver for full programmable control, daylight harvesting, and dimming control (remote control required to program multiple units)(1 Sensor/Control Module required per unit).

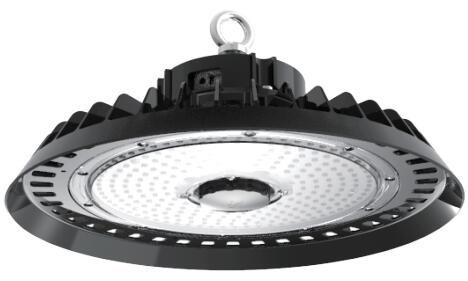

Our new UFO high bay luminaires are compact, lightweight for easy installation, and suitable for up to 35 foot mounting heights. DLC 4.3 premium qualified with available models delivering up to 36000lm. The luminaire offers a 80,000 hours life rating and is suitable for elevated ambient temperatures.

• Increase light output where needed
• Lower light output for maximum energy savings
• Additional daylight harvesting function and programmability
• Unique ability to make adjustments based on facility needs, now or in the future

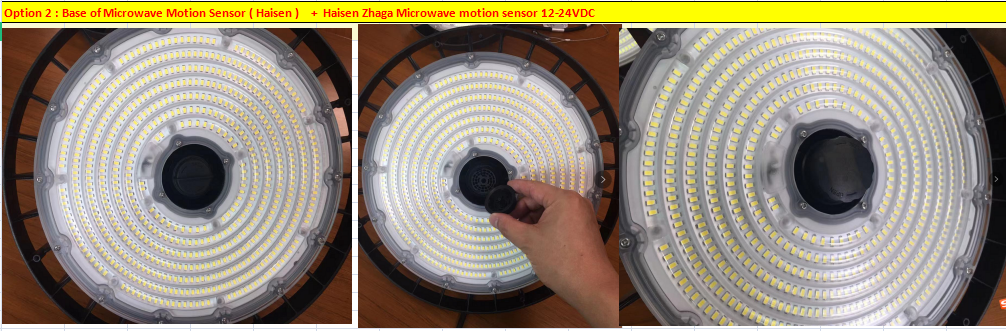

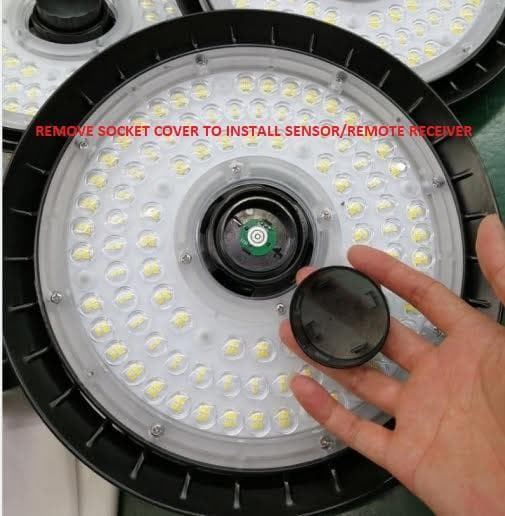

• Microwave Motion Sensor/Remote Receiver allows for adjustment of motion sensor sensitivity on/off control, daylight harvesting, and dimming.



Remote Control (Required for Motion Sensor and Remote Operation, Dimming, and Programming) *Only 1 remote required to program multiple units.

(Click here to order)



Haisen Control Module - 1 required per unit  (Click here to order)



160W 24,000 Lumens

200W 30,000 Lumens

240W 36,000 Lumens

L70>80000 Hours

120°  5000K In Stock

SPECIFICATION SHEET

 -- This product qualifies for energy rebates --

- Programmable
- 6 Foot AC Direct Wire Cord Pre-Installed
- UL, cUL, DLC 4.4, CE, ROHS, SAA certificate's
- Philips 3030 LumiLED
- Sosen Driver
- Cast Aluminum
- 8 Year Component Exchange Warranty
- UL listed IP65
- Input voltage 100-277VAC 50/60Hz or 200-480VAC 50/60Hz (special order)
- Remote Dimmable/Programmable/Daylight Harvesting  (1 remote required)
- Easy to install and operate
- Energy saving, long lifespan 180,000hrs LM70 Rated
- Instant start, NO flickering, NO humming
- Green and Eco-Friendly without mercury

Application:

- Commercial/Industrial
- Warehouse, factory and workshops
- Exhibition hall
- Gymnasium and supermarkets, etc.

Style: UFO
Collection: High Bay
Shape: Circular
Material: Cast Aluminum Housing, Clear Polycarbonate Lens

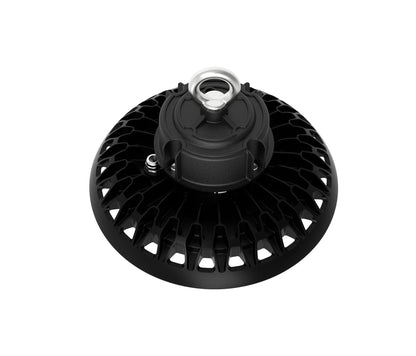

Included Components (Eye-Hook Mount)
Specific Uses: Interior Lighting, Warehouse LED Lighting
Fixture Features: Instant On, Non-bug-attracting, Shatter resistant, Shock and vibration resistant
Light Direction: Down light
Power Source: 100-277Vac Standard
Switch Installation Type: Top Mount
Type of LED: Philips 3030 SMD LumiLED
Driver: SOSEN Electronics Co. Ltd. (Germany)
